Low Beam Headlight Circuit: Wiring Diagram

  1. except LED Headlight:

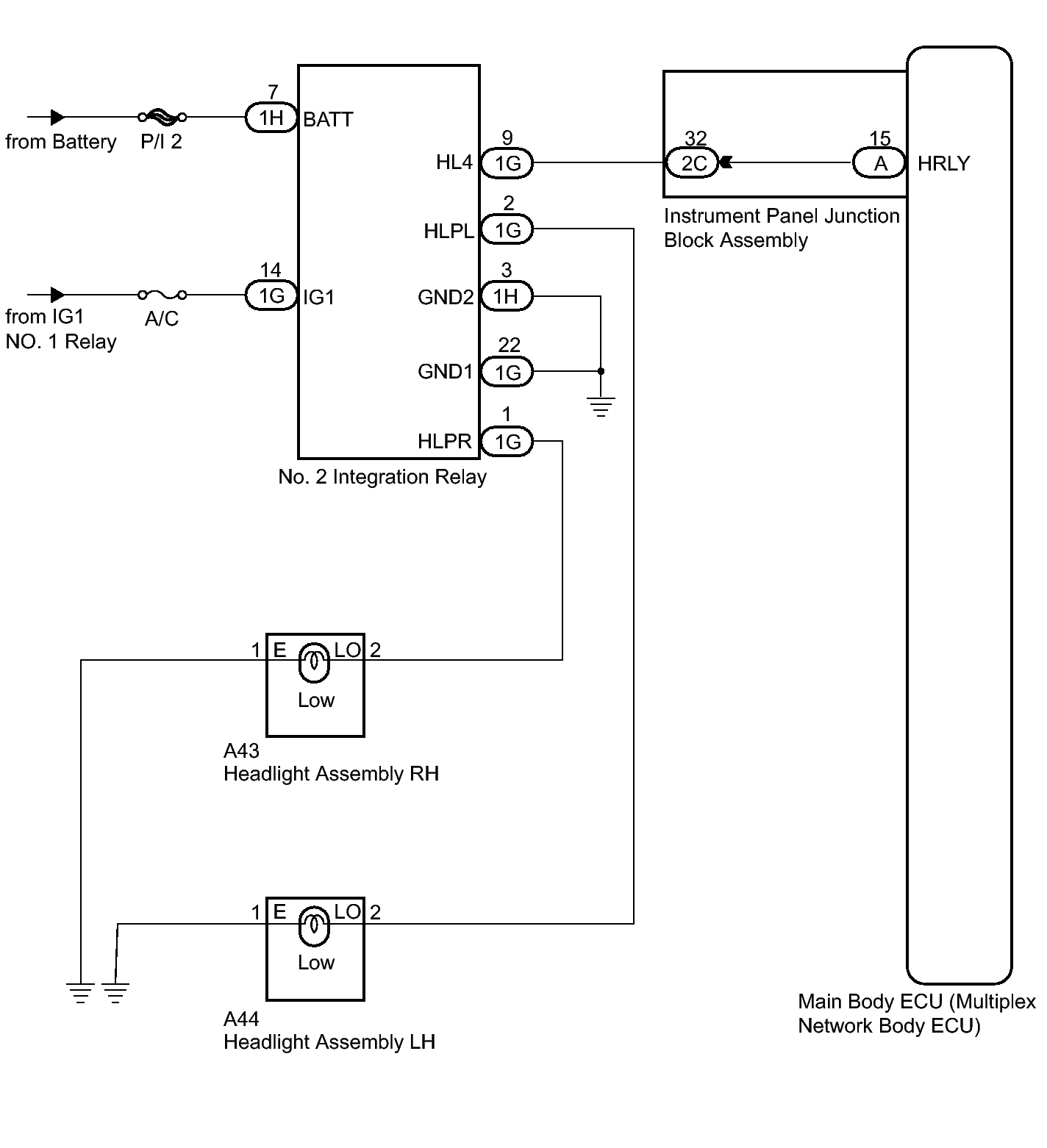

    Fig 1: Identifying No. 2 Integration Relay Wiring Diagram (Except LED Headlight)
    GTY256302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for LED Headlight:

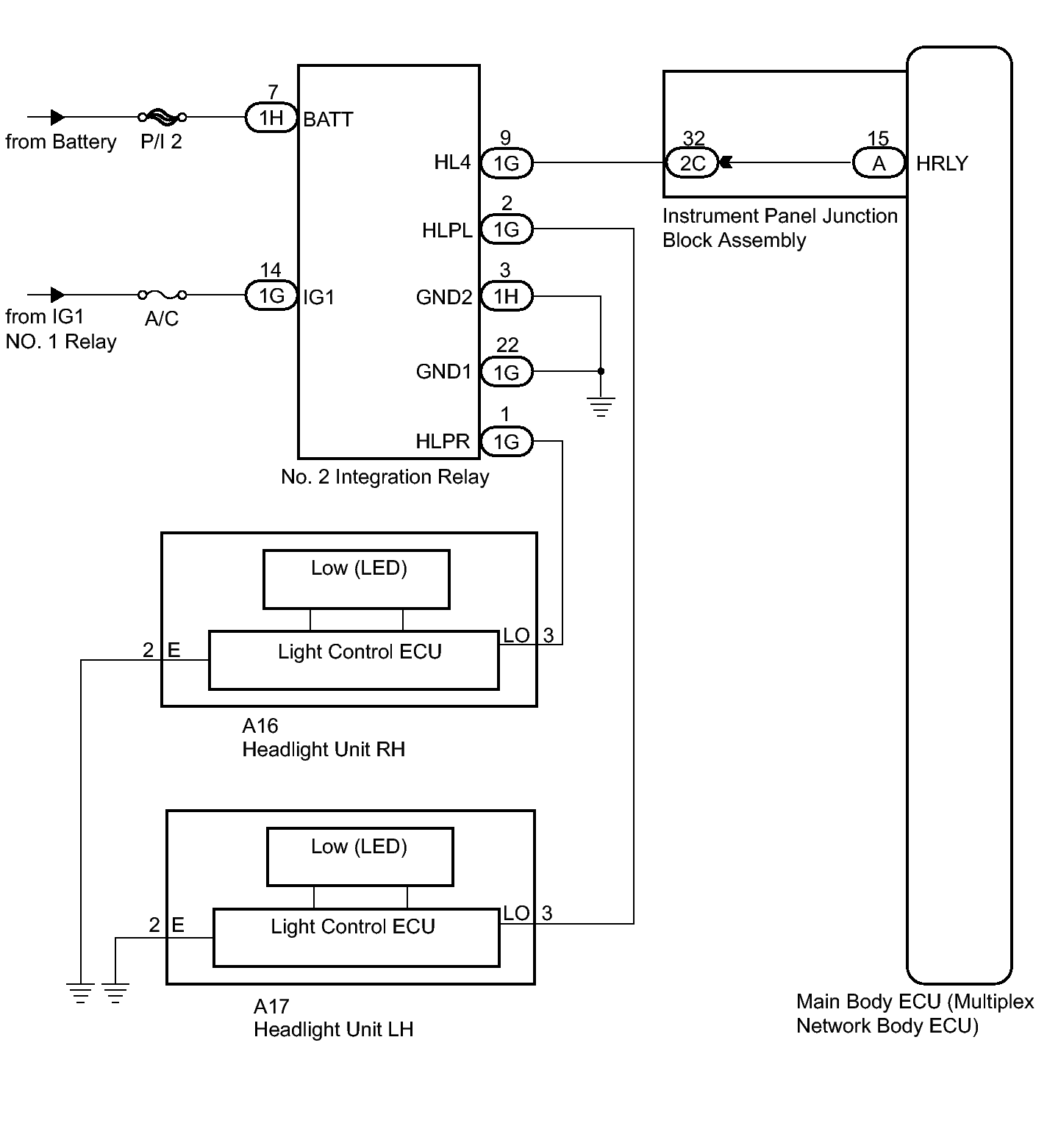

    Fig 2: Identifying No. 2 Integration Relay Wiring Diagram (For LED Headlight)
    GTY263325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
