High Beam Headlight Circuit: Wiring Diagram

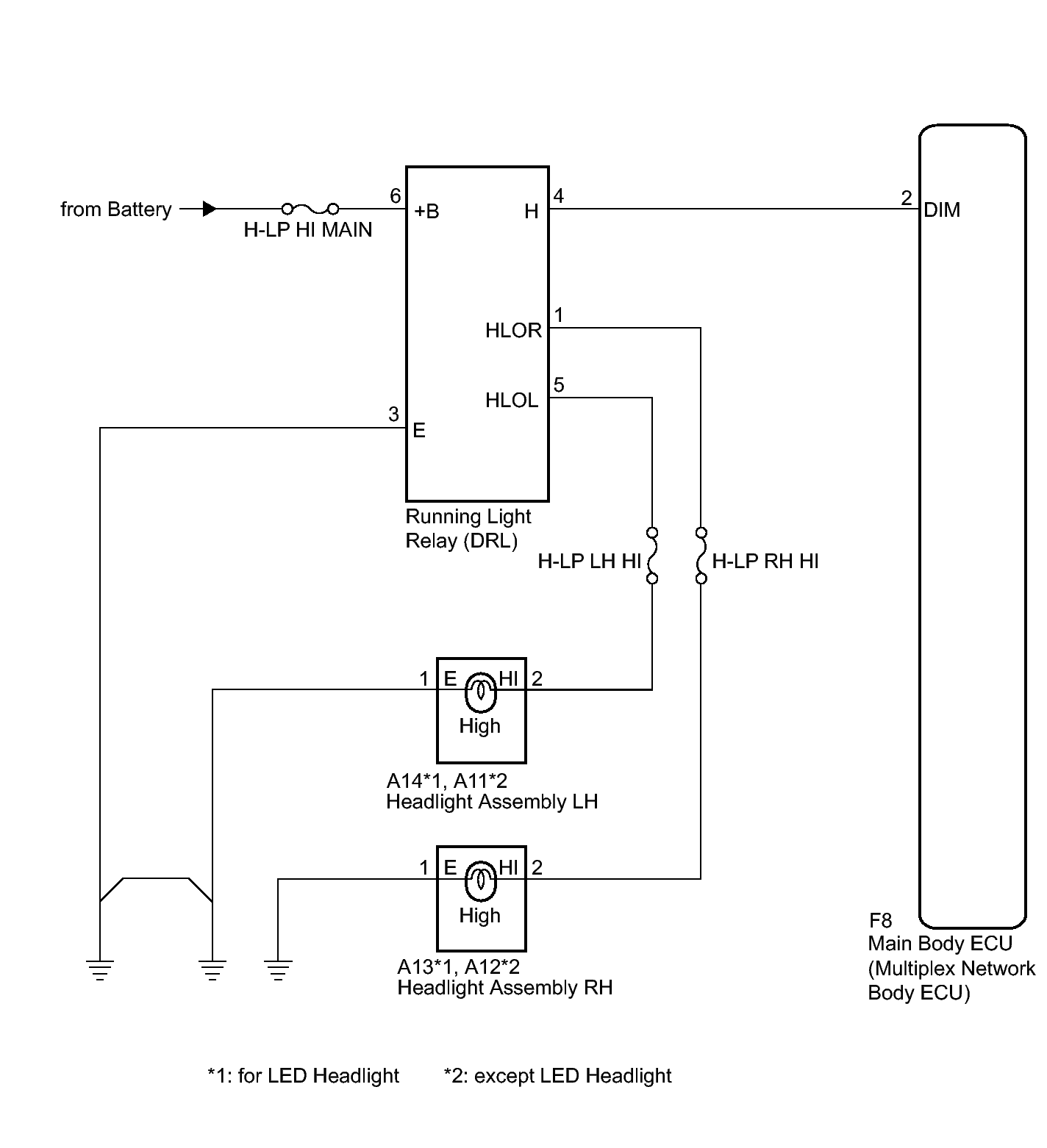

  1. w/ Daytime Running Light System:
    Fig 1: Identifying High Beam Headlights Wiring Diagram (w/ Daytime Running Light System)
    GTY264604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

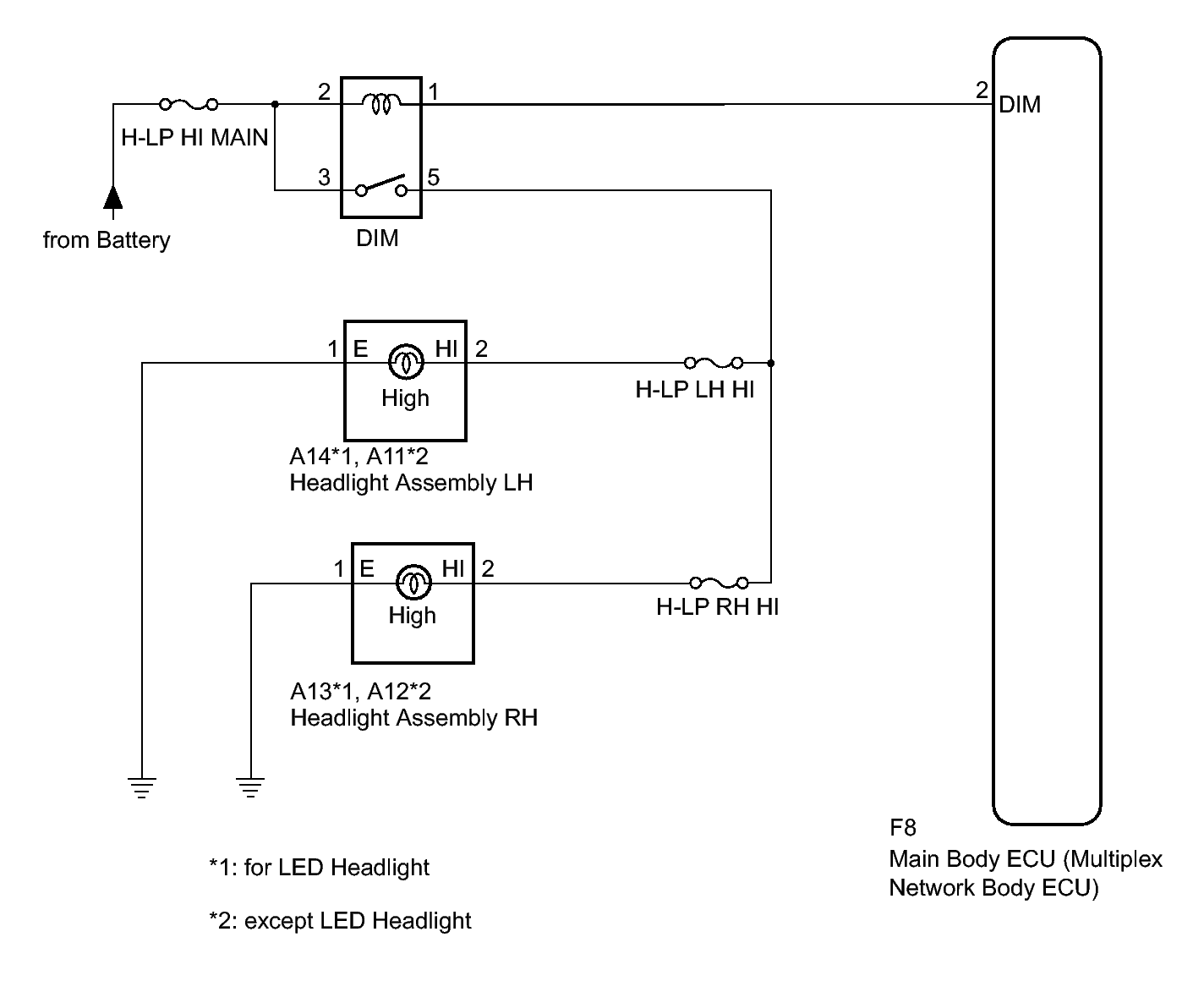

  2. w/o Daytime Running Light System:
    Fig 2: Identifying High Beam Headlights Wiring Diagram (w/o Daytime Running Light System)
    GTY271142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
