Headlight Dimmer Switch Circuit: Wiring Diagram

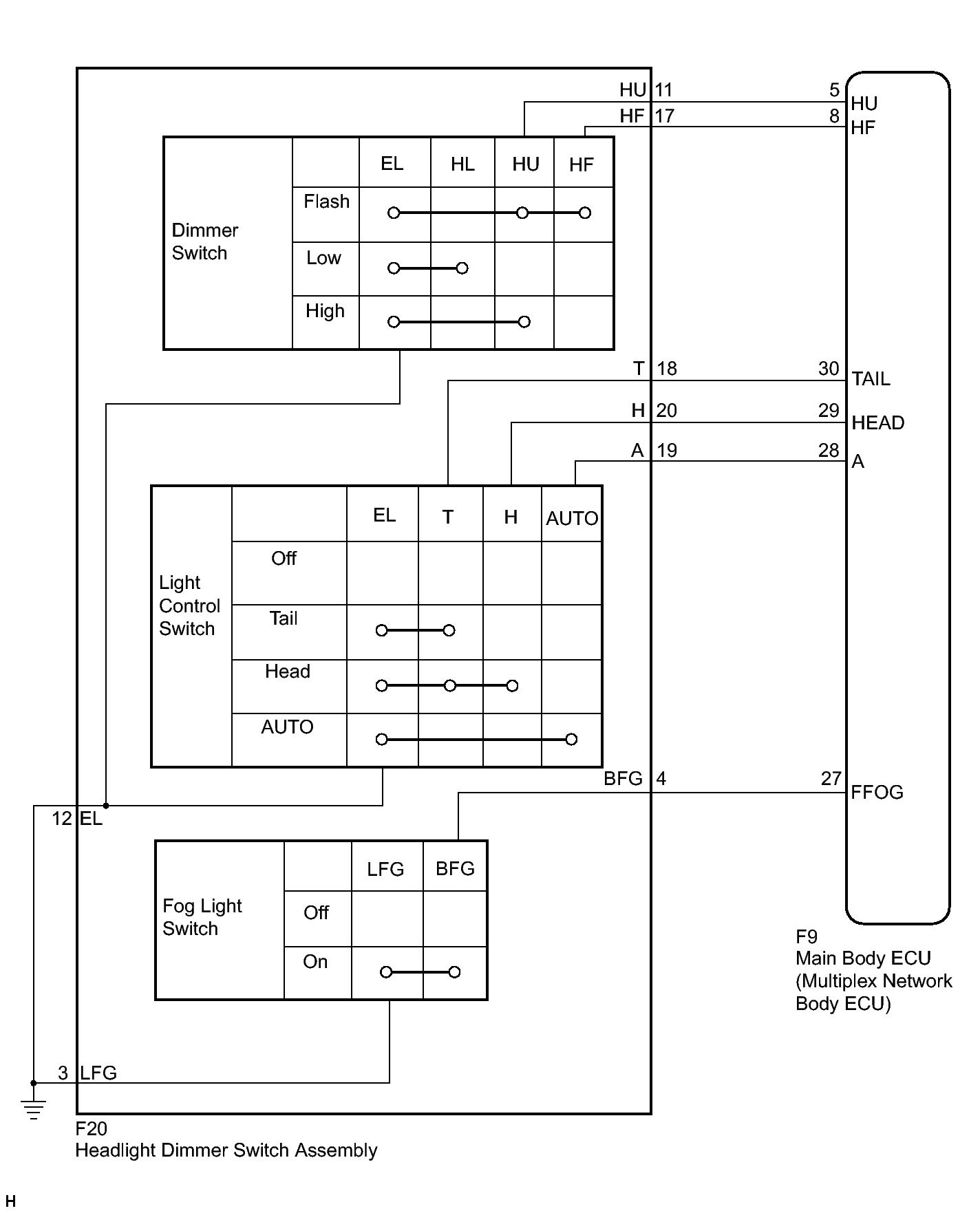

Fig 1: Identifying Headlight Dimmer Switch Assembly Wiring Diagram

GTY264316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
