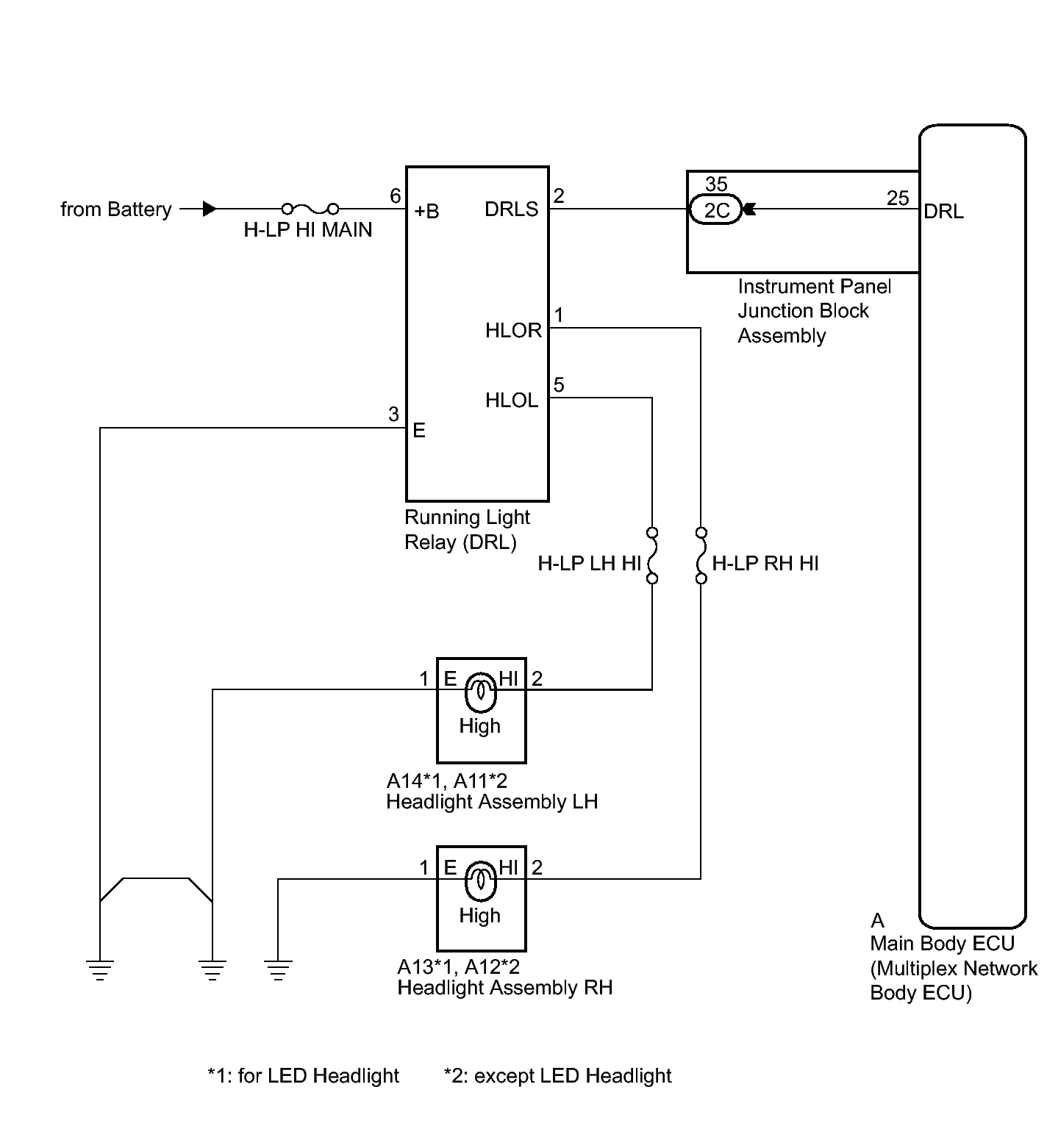

Daytime Running Light Relay Circuit: Wiring Diagram

Fig 1: Identifying Main Body ECU (Multiplex Network Body ECU)

GTY285950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
