DTC B2430: LED Headlight LH Circuit Malfunction; DTC B2431: LED Headlight RH Circuit Malfunction: Wiring Diagram

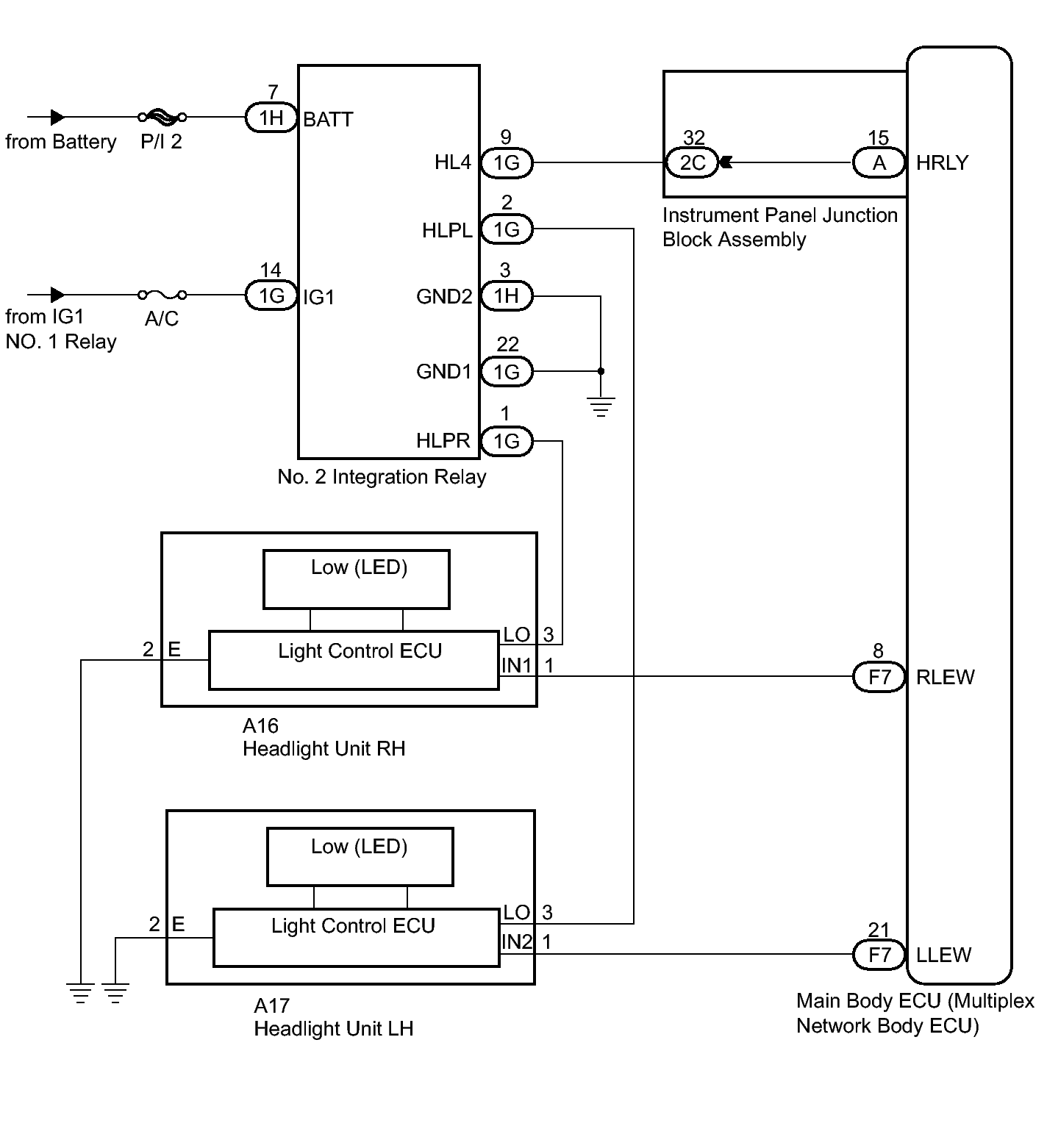

Fig 1: Identifying Main Body ECU (Multiplex Network Body ECU) Wiring Diagram
GTY256844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
