Home >> Lexus >> 2010 >> GX 460 >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Suspension (Rear) (Service Information) >> Rear Upper Arm >> Components >> Illustration

Rear Upper Arm: Components: Illustration

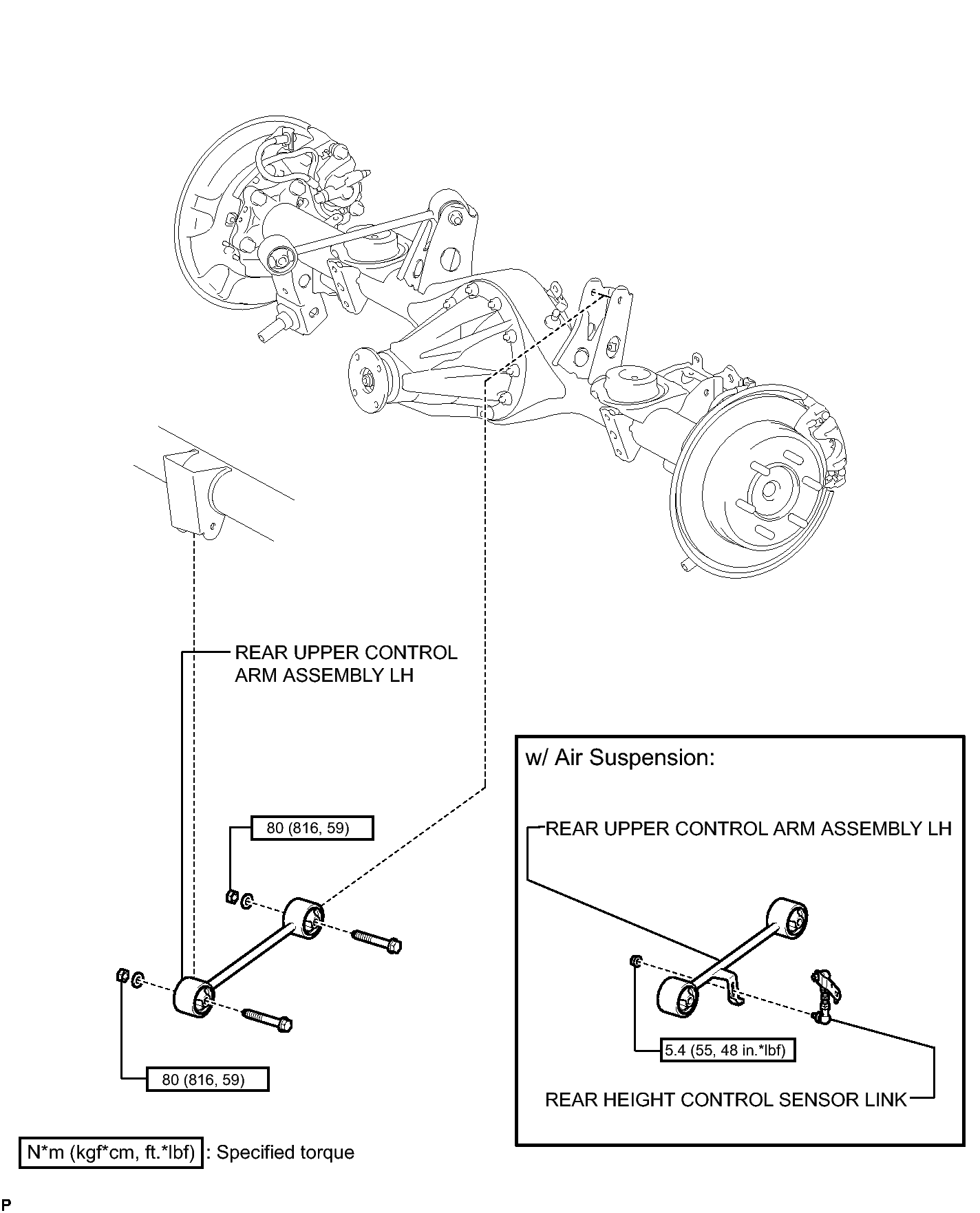

Fig 1: Identifying Rear Upper Arm Replacement Components With Torque Specifications

GTY264158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
