Rear Lower Arm: Components: Illustration

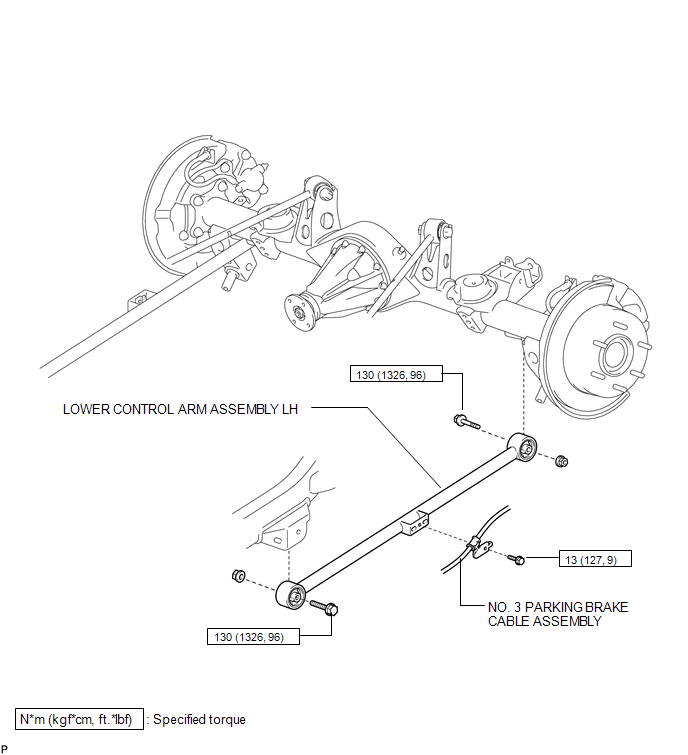

Fig 1: Identifying Rear Lower Arm Replacement Components With Torque Specifications

GTY235477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
