Rear Lateral Control Rod: Components: Illustration

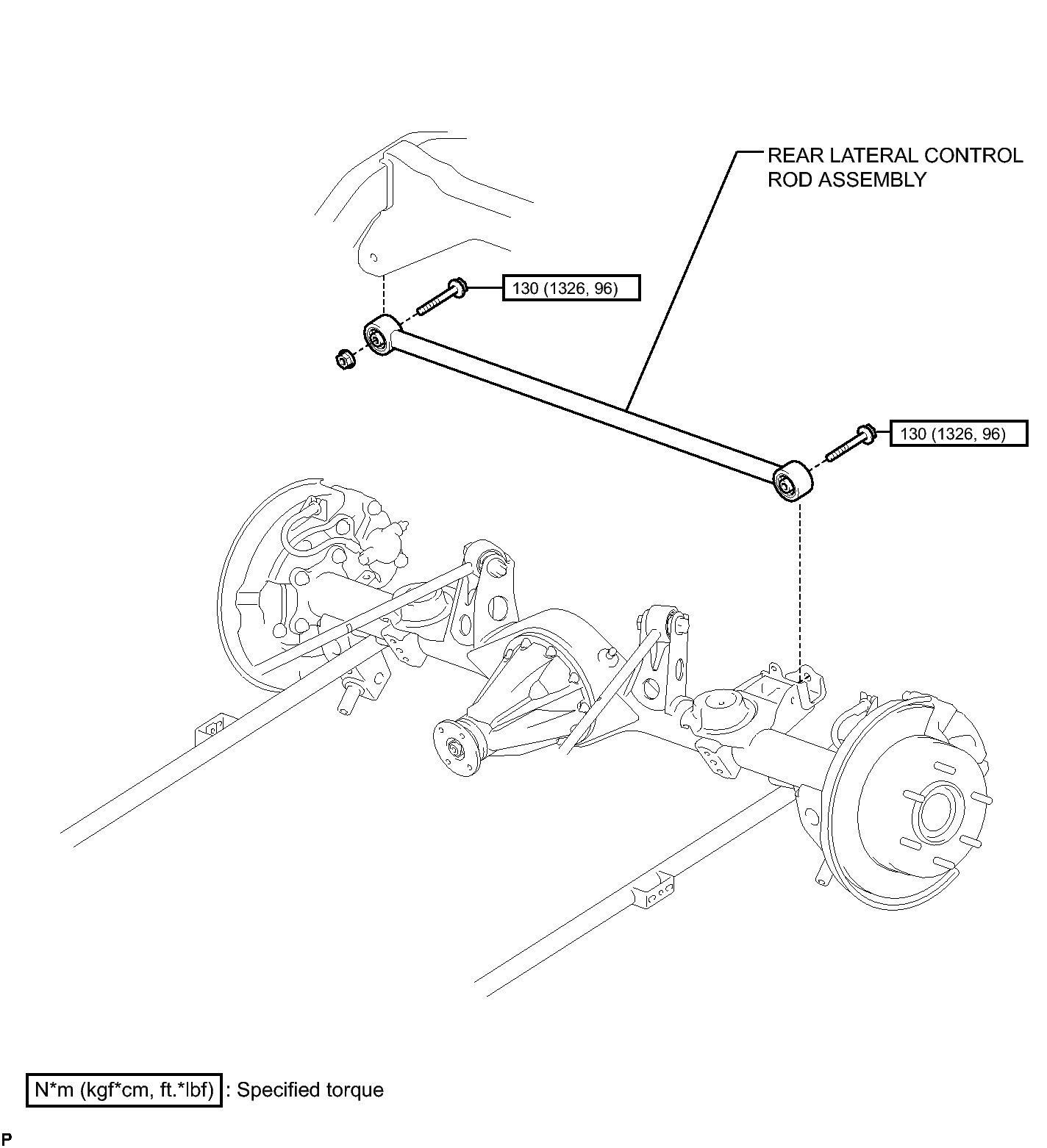

Fig 1: Identifying Rear Lateral Control Rod Replacement Components With Torque Specifications

GTY259390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
