REAR PNEUMATIC CYLINDER (w/ Air Suspension): Components: Illustration

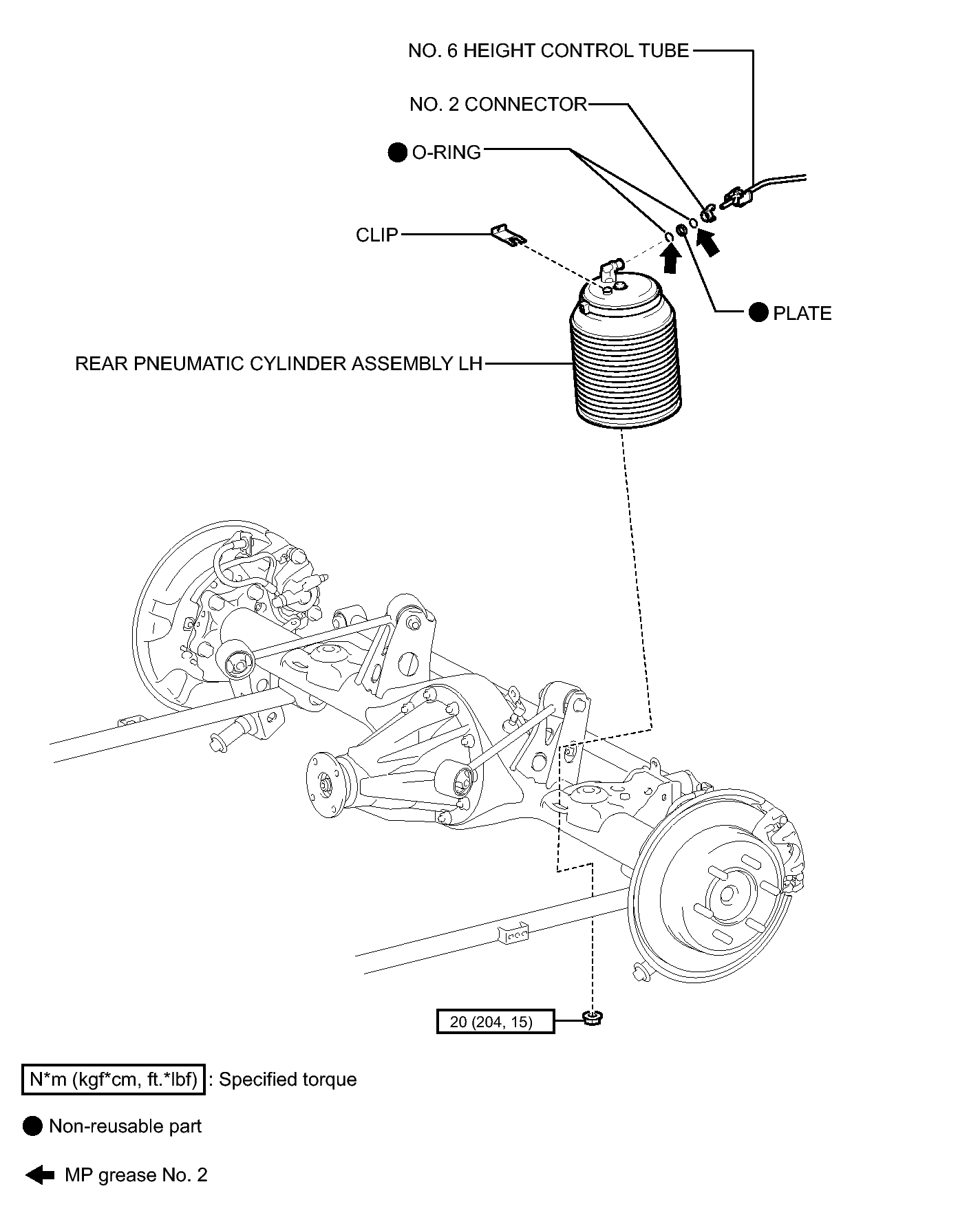

Fig 1: Identifying Rear Pneumatic Cylinder (W/ Air Suspension) Replacement Components With Torque Specifications
GTY265155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
