REAR COIL SPRING (w/o Air Suspension): Installation: Installation

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. INSTALL HOLLOW SPRING SUB-ASSEMBLY
   1. Install the hollow spring to the frame.
2. INSTALL REAR COIL SPRING LH
   1. Install the rear coil spring to the rear axle housing.

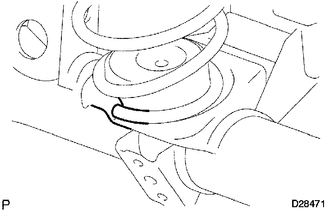

      Fig 1: Identifying Rear Axle Housing And Coil Spring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Before installing the coil spring, check that the coil spring end is in the correct position. If not, reinstall the coil spring.

3. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY LH
   1. Temporarily install the lower side of the shock absorber with the bolt.
4. INSTALL REAR STABILIZER LOWER BRACKET  See step  5
5. STABILIZE SUSPENSION  See step  4
6. TIGHTEN REAR SHOCK ABSORBER ASSEMBLY LH
   1. Tighten the bolt.

      Torque: 98 N*m (999 kgf*cm, 72 ft.*lbf)

7. CONNECT REAR FLEXIBLE HOSE  . Refer to INSTALLATION - Step 3
8. BLEED BRAKE LINE
   1. Bleed the brake line. Refer to BLEEDING .
9. INSTALL REAR WHEEL

   Torque: 112 N*m (1142 kgf*cm, 83 ft.*lbf)
