REAR COIL SPRING (w/o Air Suspension): Components: Illustration

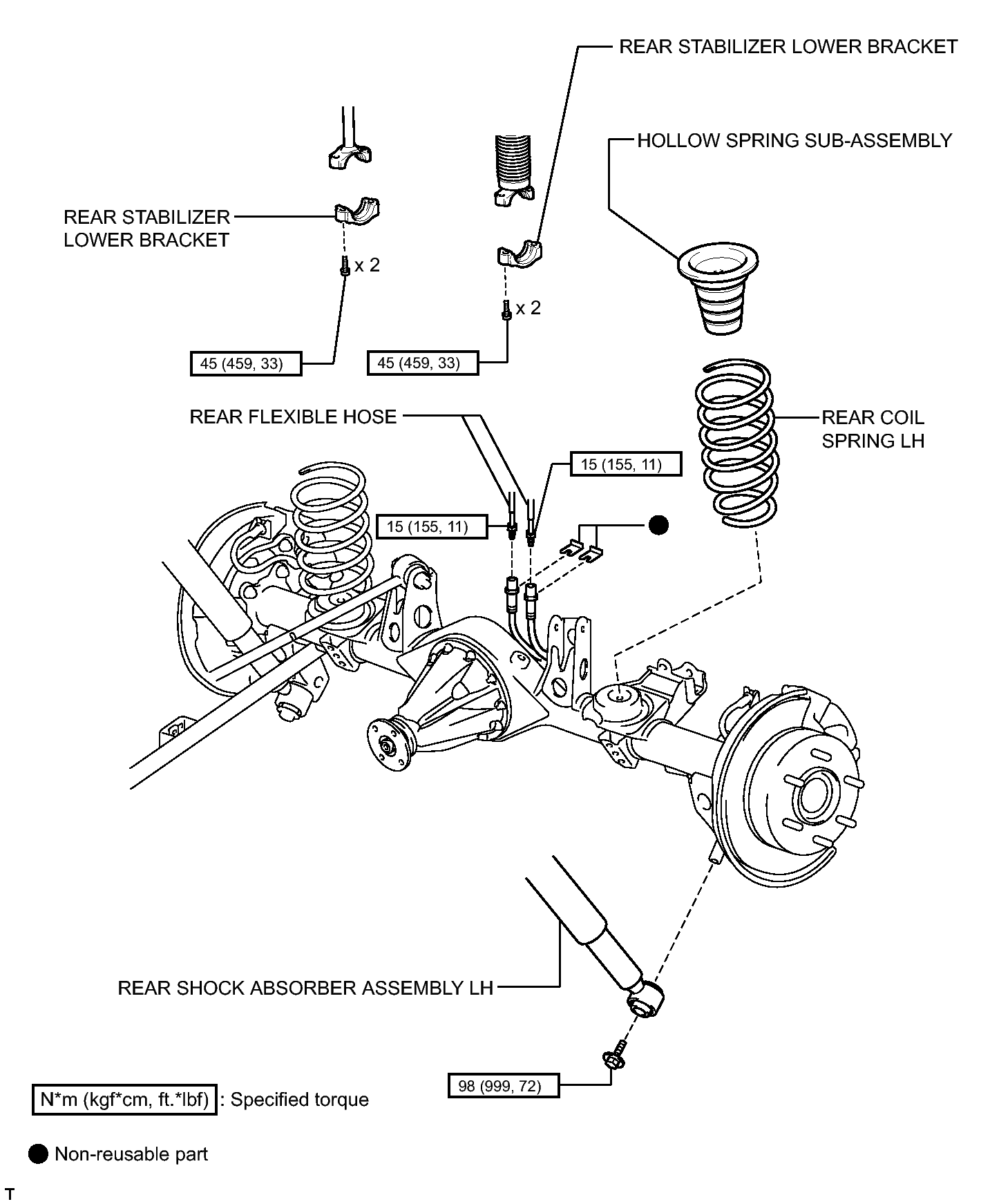

Fig 1: Identifying Rear Coil Spring (W/O Air Suspension) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
