Turn Signal and Hazard Warning Light

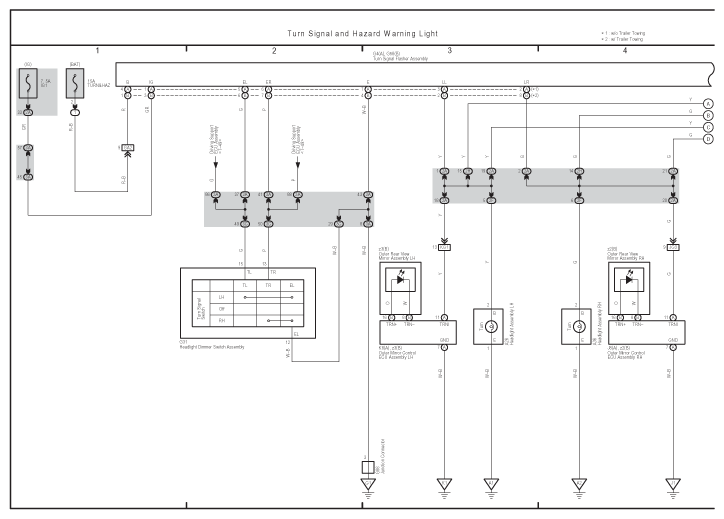

Fig 1: Turn Signal And Hazard Warning Light Electrical Wiring Diagram (1 Of 2)
G07579761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

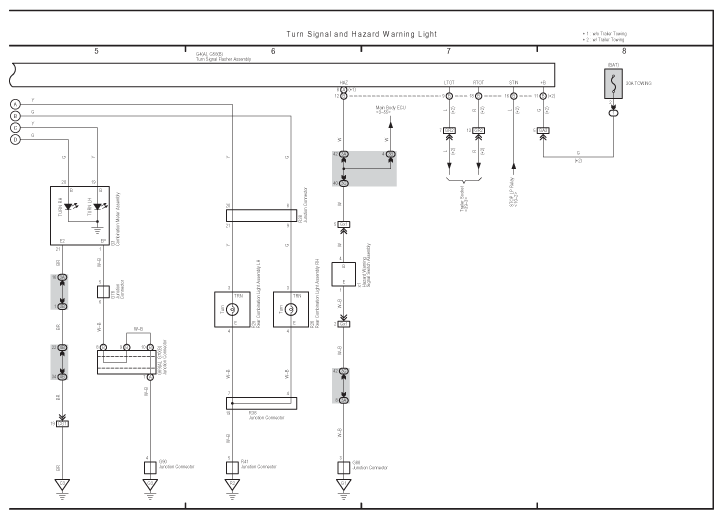

Fig 2: Turn Signal And Hazard Warning Light Electrical Wiring Diagram (2 Of 2)
G07579762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
