Seat Heater (Rear)

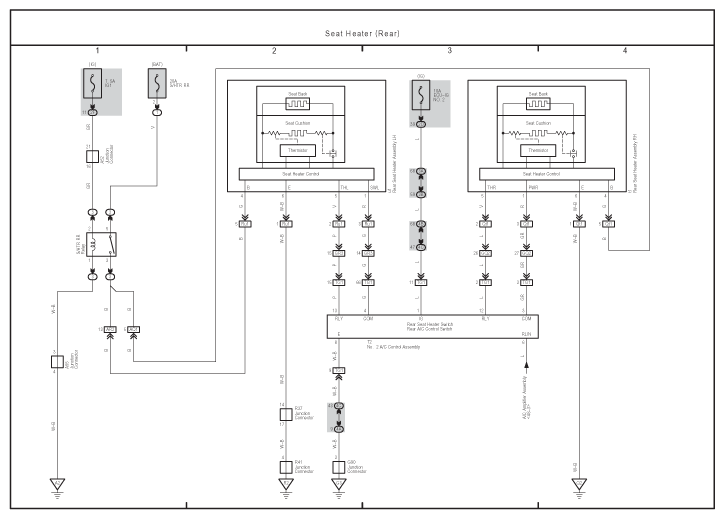

Fig 1: Seat Heater (Rear) Electrical Wiring Diagram

G07579796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
