Rear Wper and Washer

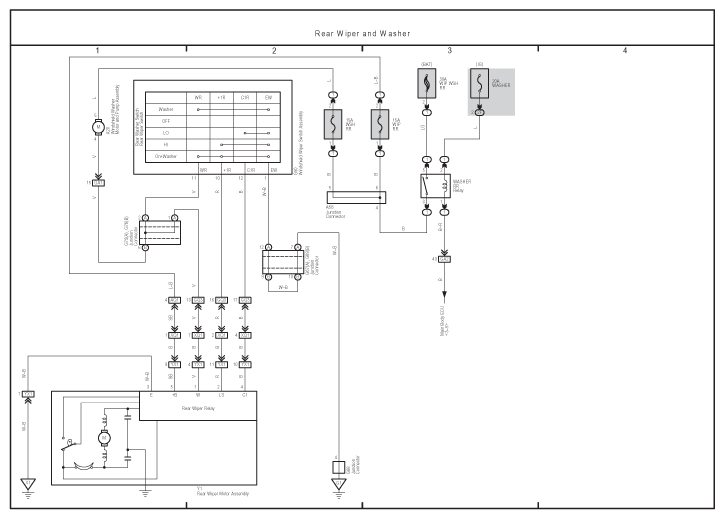

Fig 1: Rear Wiper And Washer Electrical Wiring Diagram
G07579792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
