Power Window

Fig 1: Power Window Electrical Wiring Diagram (1 Of 2)
G07579786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

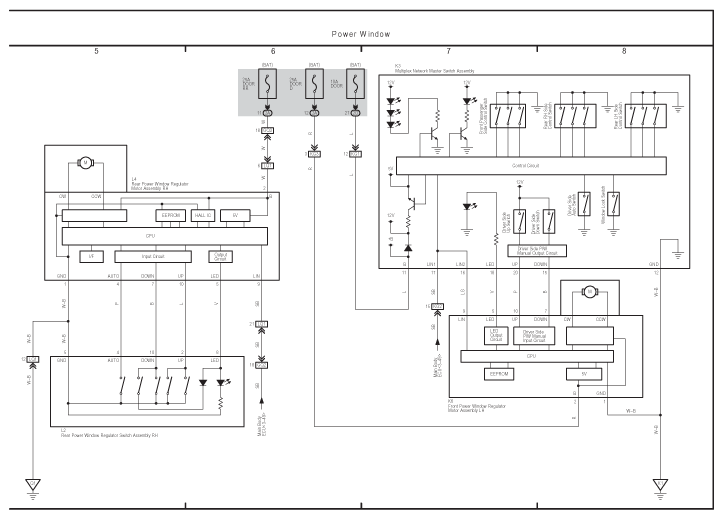

Fig 2: Power Window Electrical Wiring Diagram (2 Of 2)
G07579787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
