Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Outlet (120V 100W), Power Outlet (12V)
Power Outlet (120V 100W), Power Outlet (12V)

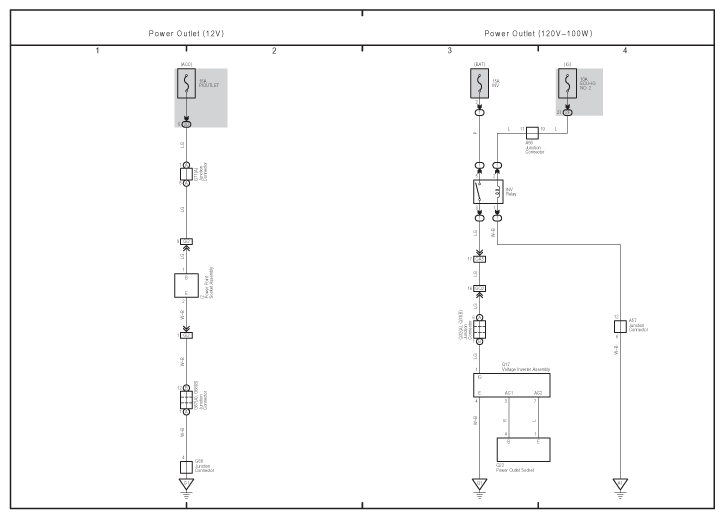

Fig 1: Power Outlet (120V - 100W) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
