Parking Assist (Intuitive Parking Assist)

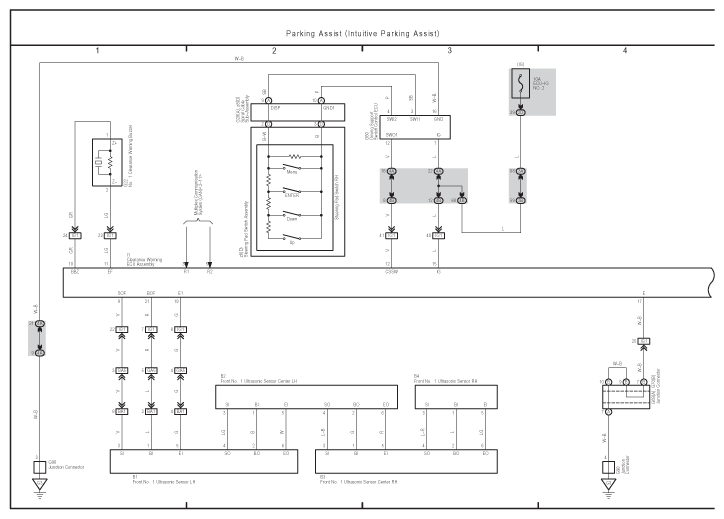

Fig 1: Parking Assist (Intuitive Parking Assist) Electrical Wiring Diagram (1 Of 2)
G07579809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

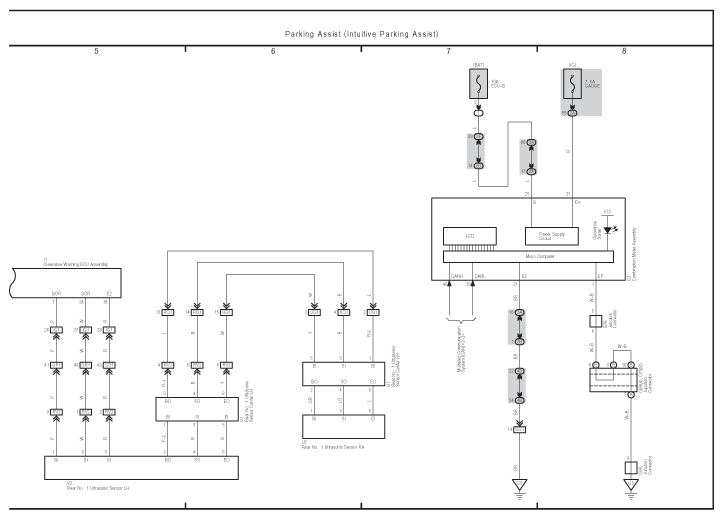

Fig 2: Parking Assist (Intuitive Parking Assist) Electrical Wiring Diagram (2 Of 2)
G07579810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
