Multiplex Communication System (Body Control)

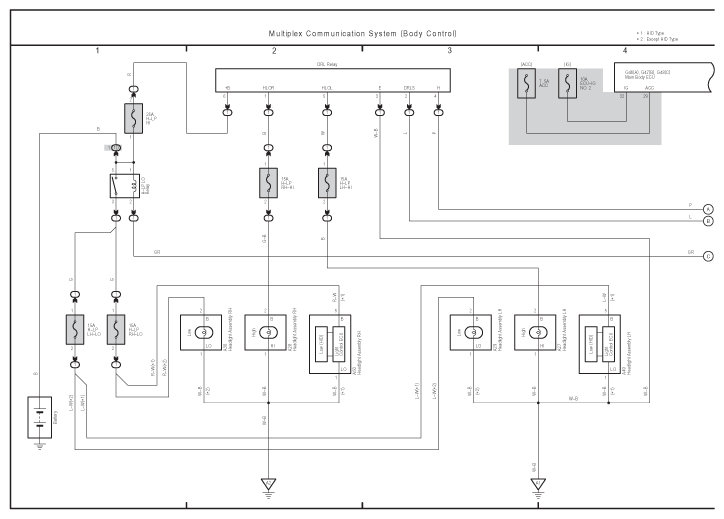

Fig 1: Multiplex Communication System (Body Control) Electrical Wiring Diagram (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

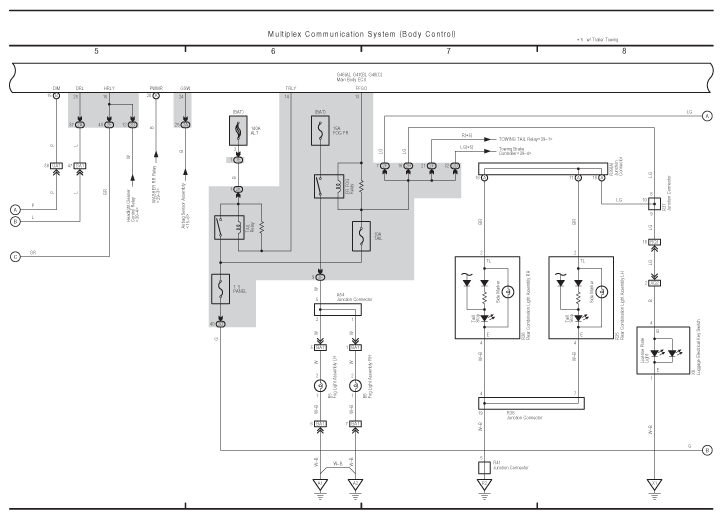

Fig 2: Multiplex Communication System (Body Control) Electrical Wiring Diagram (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Multiplex Communication System (Body Control) Electrical Wiring Diagram (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

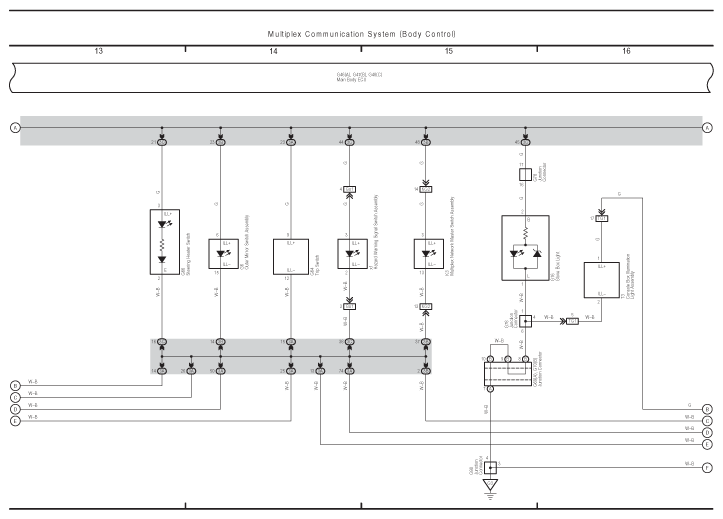

Fig 4: Multiplex Communication System (Body Control) Electrical Wiring Diagram (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

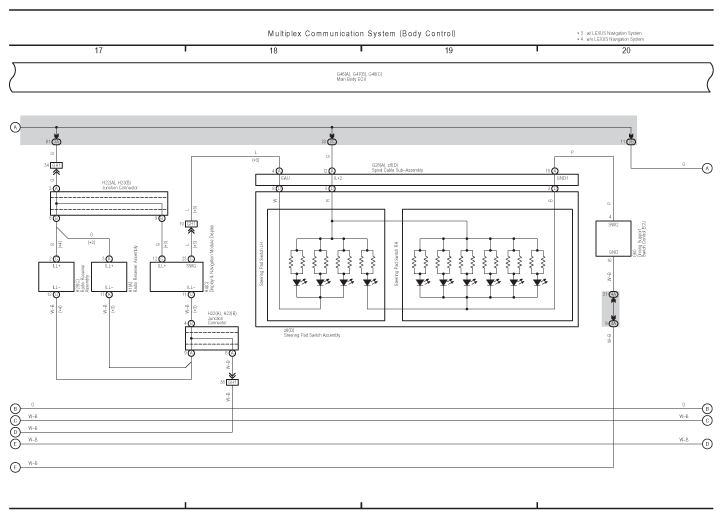

Fig 5: Multiplex Communication System (Body Control) Electrical Wiring Diagram (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Multiplex Communication System (Body Control) Electrical Wiring Diagram (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

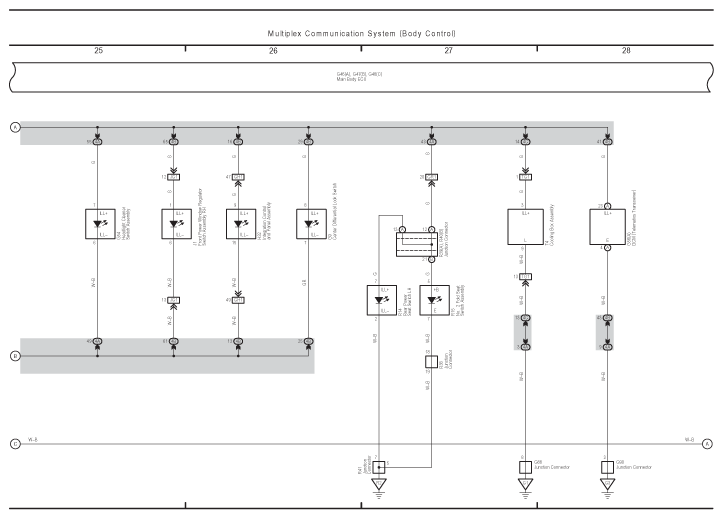

Fig 7: Multiplex Communication System (Body Control) Electrical Wiring Diagram (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Multiplex Communication System (Body Control) Electrical Wiring Diagram (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

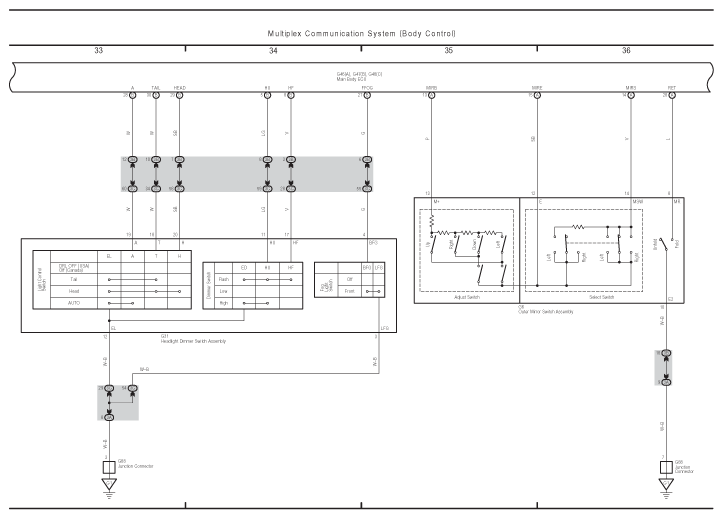

Fig 9: Multiplex Communication System (Body Control) Electrical Wiring Diagram (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Multiplex Communication System (Body Control) Electrical Wiring Diagram (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Multiplex Communication System (Body Control) Electrical Wiring Diagram (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

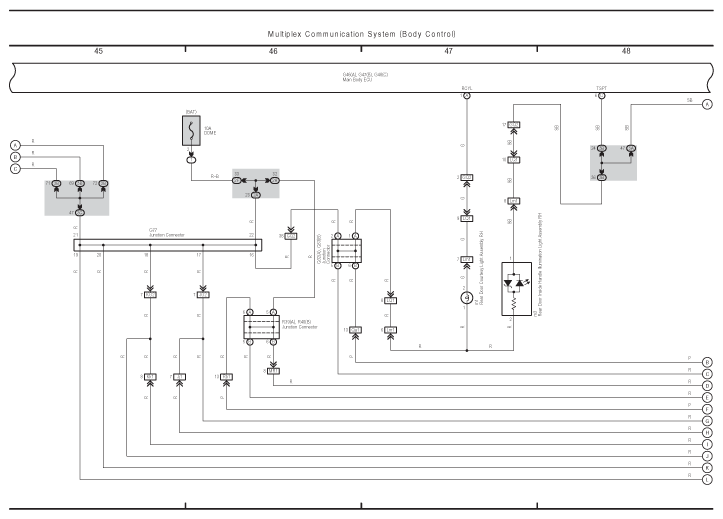

Fig 12: Multiplex Communication System (Body Control) Electrical Wiring Diagram (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

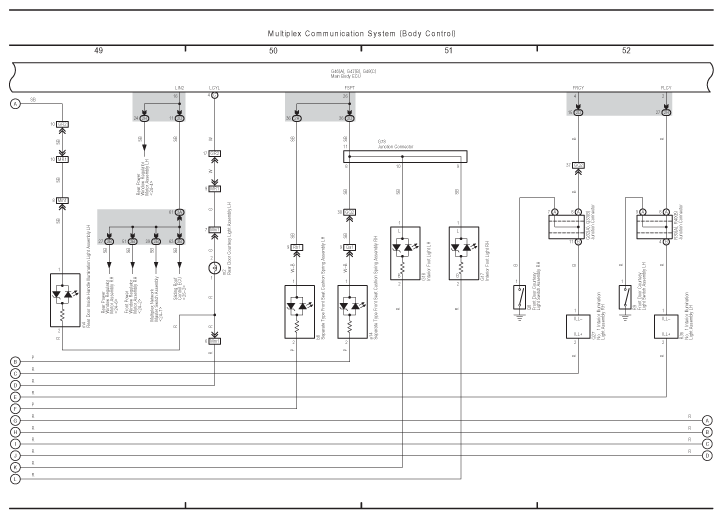

Fig 13: Multiplex Communication System (Body Control) Electrical Wiring Diagram (13 Of 19)

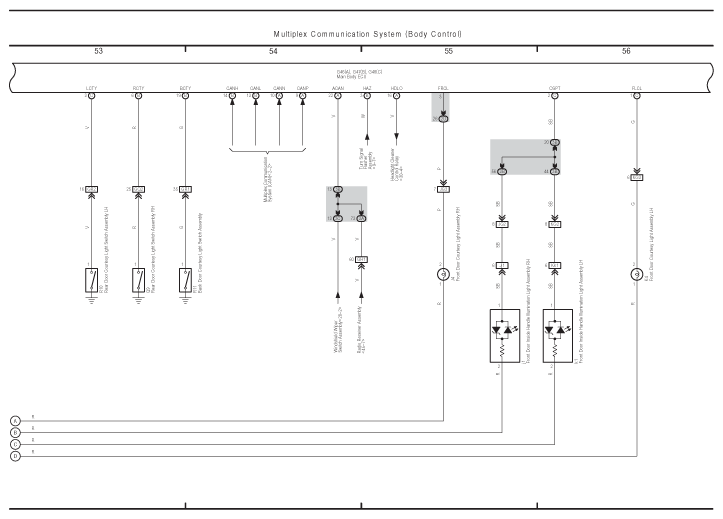

Fig 14: Multiplex Communication System (Body Control) Electrical Wiring Diagram (14 Of 19)

Fig 15: Multiplex Communication System (Body Control) Electrical Wiring Diagram (15 Of 19)

Fig 16: Multiplex Communication System (Body Control) Electrical Wiring Diagram (16 Of 19)

Fig 17: Multiplex Communication System (Body Control) Electrical Wiring Diagram (17 Of 19)

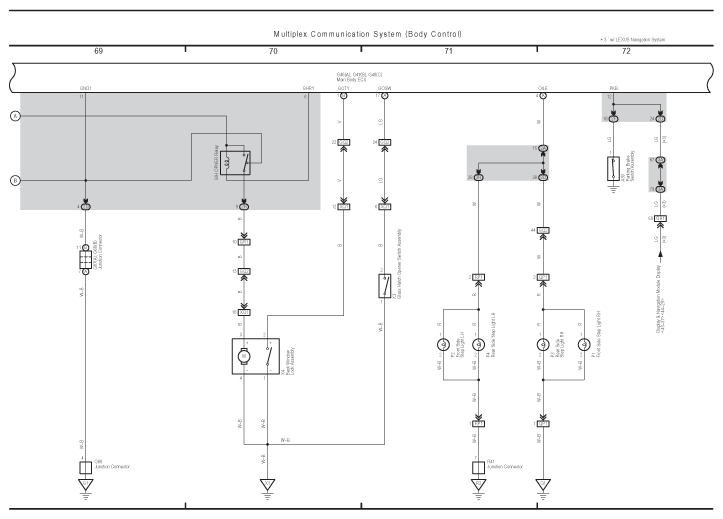

Fig 18: Multiplex Communication System (Body Control) Electrical Wiring Diagram (18 Of 19)

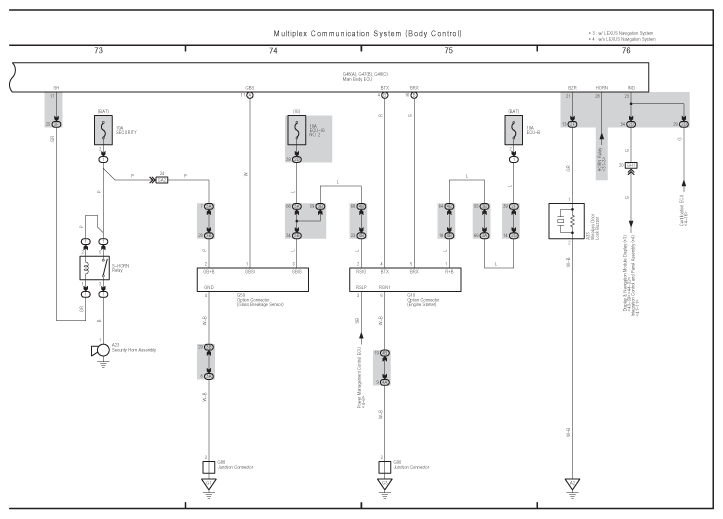

Fig 19: Multiplex Communication System (Body Control) Electrical Wiring Diagram (19 Of 19)
