Multi Information Display, Multi-Terrain Monitor (w/o LEXUS Navigation System), Parking Assist (Rear View Monitor and Wde-View Front & Side Monitor) (w/o LEXUS Navigation System)

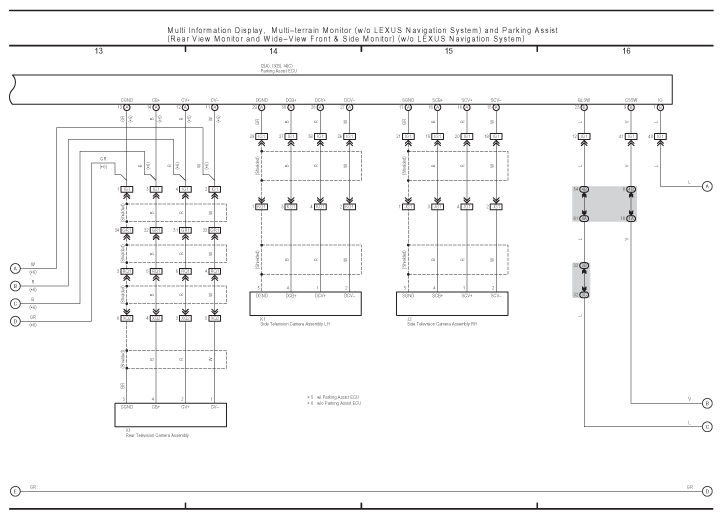

Fig 1: Multiinformation Display, Multi-Terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

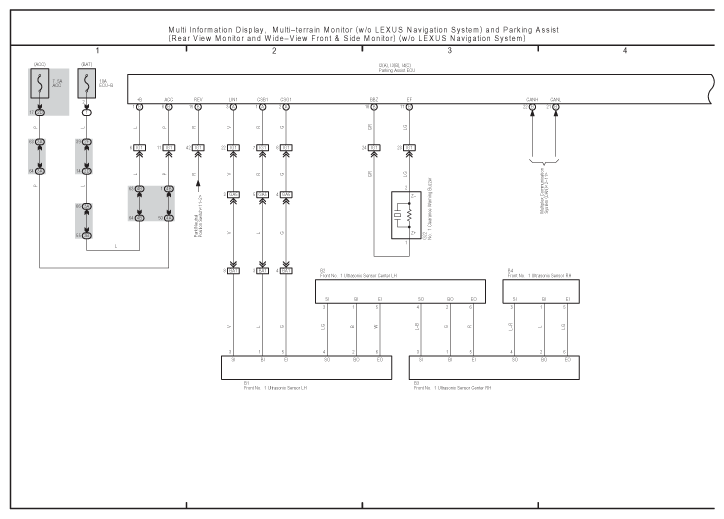

Fig 2: Multiinformation Display, Multi-Terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

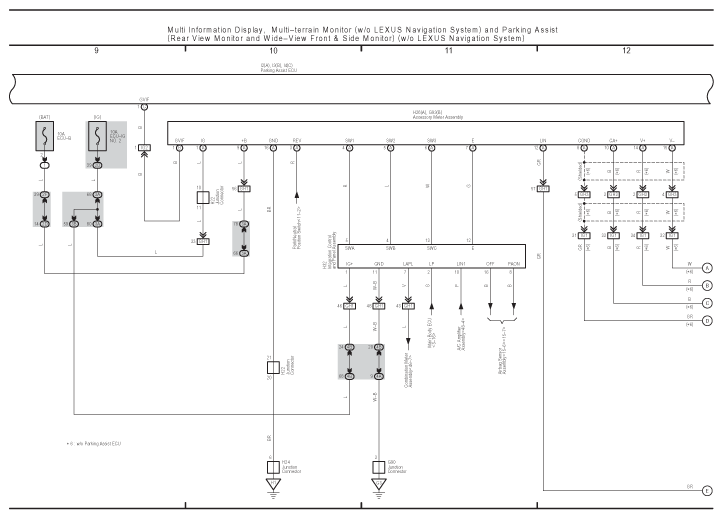

Fig 3: Multiinformation Display, Multi-Terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

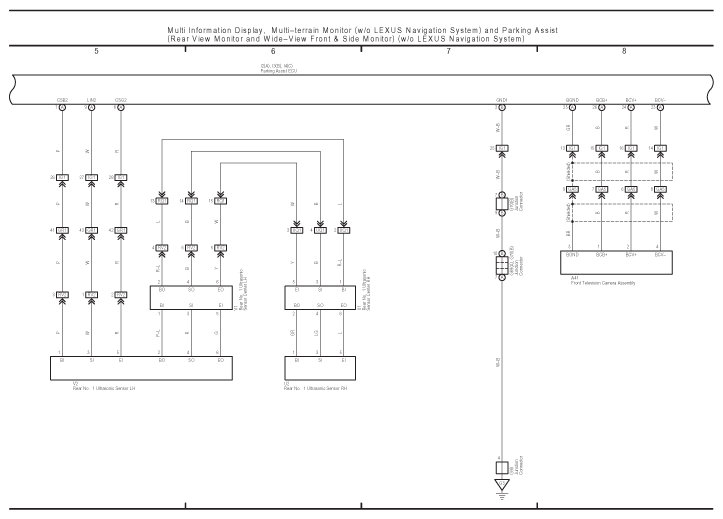

Fig 4: Multiinformation Display, Multi-Terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

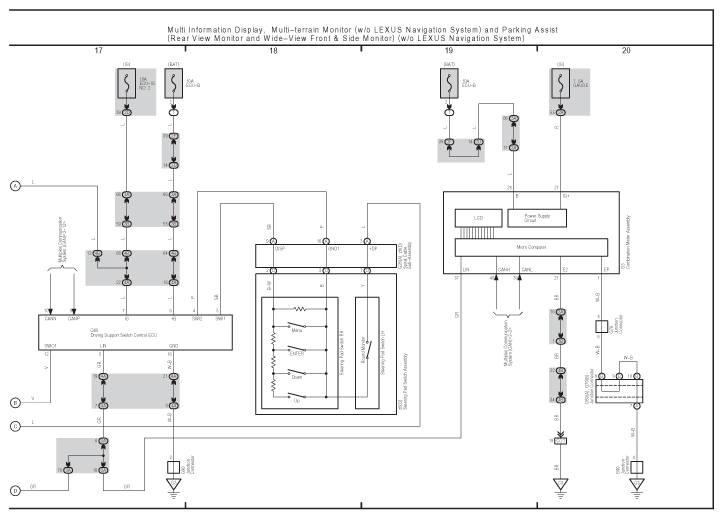

Fig 5: Multiinformation Display, Multi-Terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
