Lexus
>>
2010
>>
GX 460
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Kinetic Dynamic Suspension System
Kinetic Dynamic Suspension System

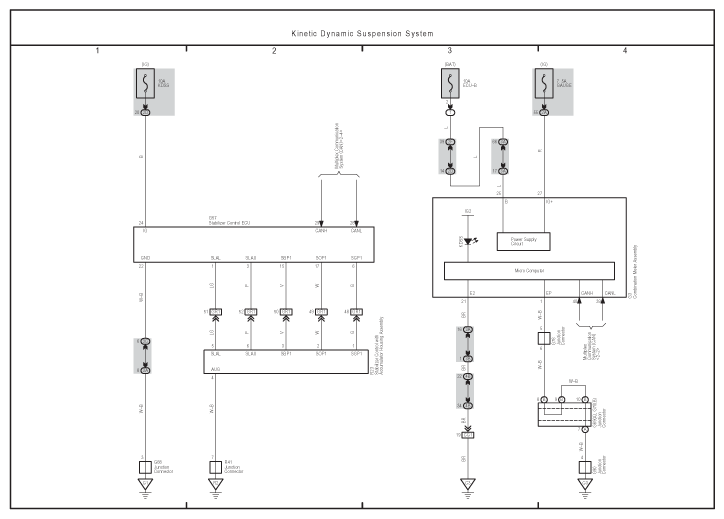

Fig 1: Kinetic Dynamic Suspension System Electrical Wiring Diagram
