Overall Electrical Wiring Diagram: Ignition

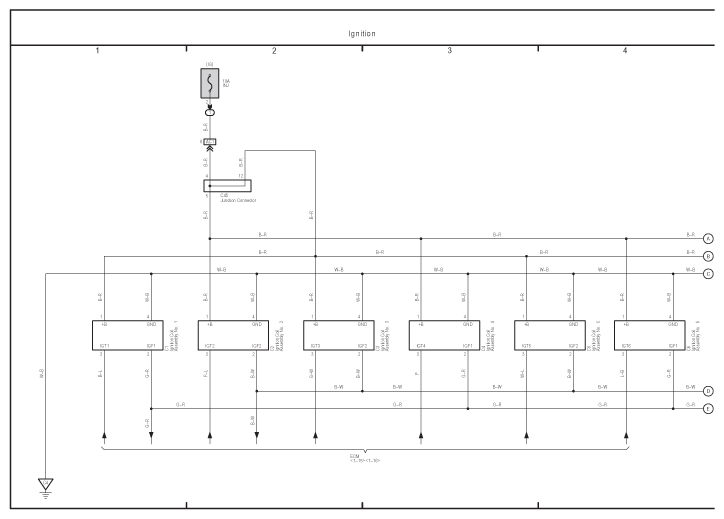

Fig 1: Ignition Electrical Wiring Diagram (1 Of 2)
G07579745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

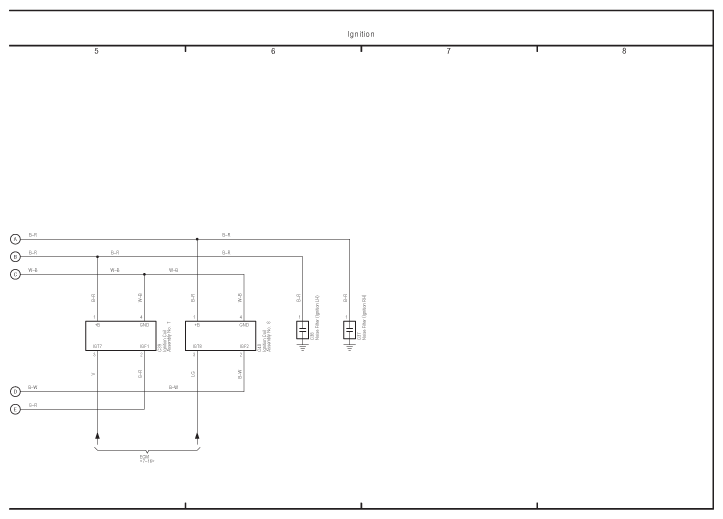

Fig 2: Ignition Electrical Wiring Diagram (2 Of 2)
G07579746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
