Front Wiper and Washer

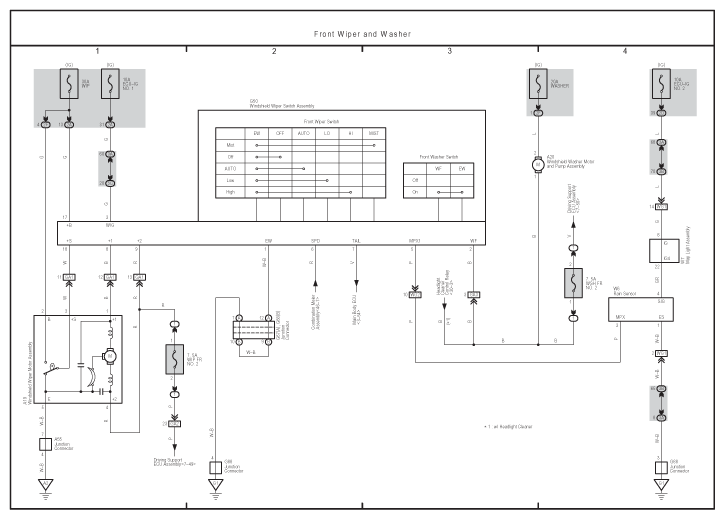

Fig 1: Front Wiper And Washer Electrical Wiring Diagram

G07579791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
