Electronic Modulated Air Suspension

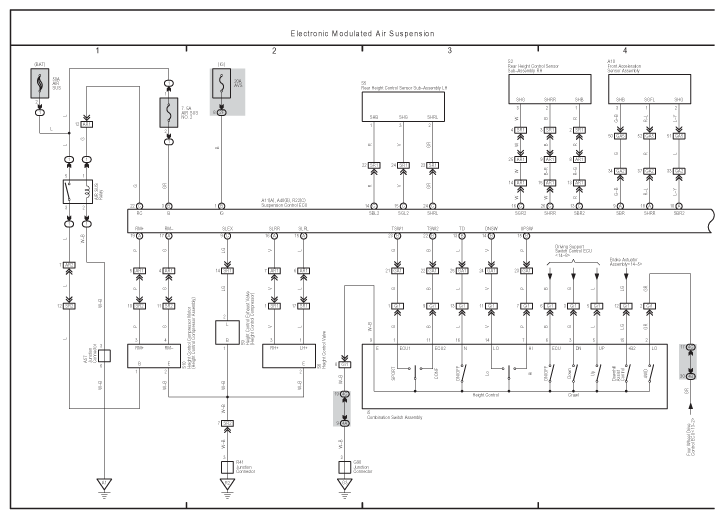

Fig 1: Electronic Modulated Air Suspension Electrical Wiring Diagram (1 Of 2)
G07579776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

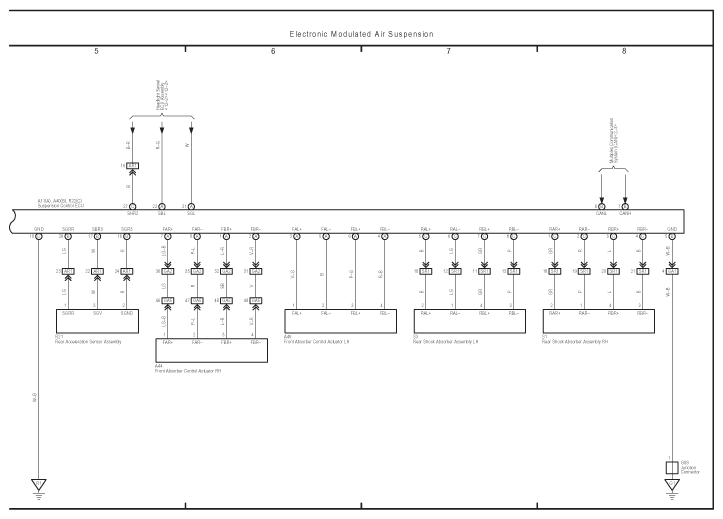

Fig 2: Electronic Modulated Air Suspension Electrical Wiring Diagram (2 Of 2)
G07579777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
