Cruise Control, Dynamic Radar Cruise Control,Electronically Controlled Transmission and A/T Indicator, Engine Control, Lane Departure Alert

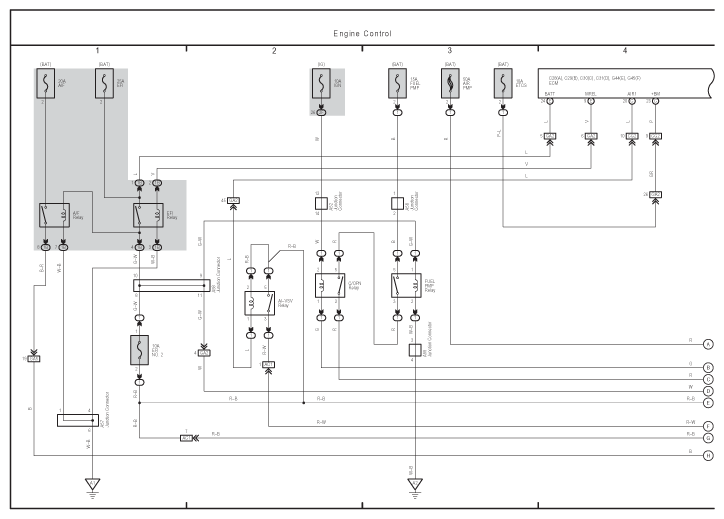

Fig 1: Engine Control Electrical Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

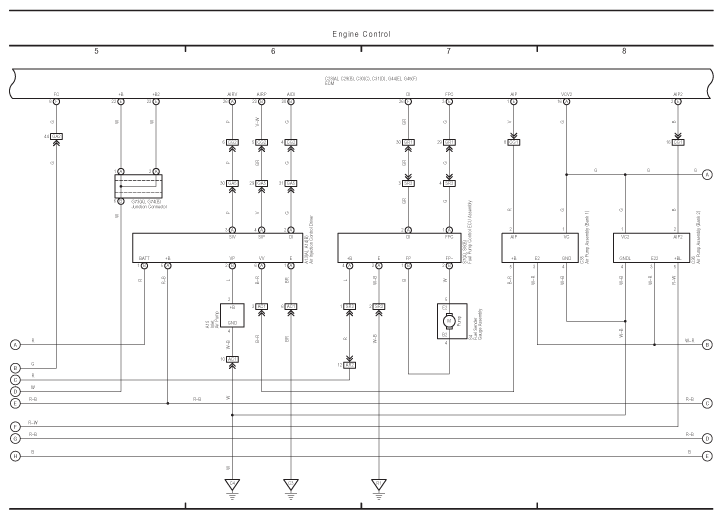

Fig 2: Engine Control Electrical Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Control Electrical Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Control Electrical Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Control Electrical Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Control Electrical Wiring Diagram (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Engine Control Electrical Wiring Diagram (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Engine Control Electrical Wiring Diagram (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

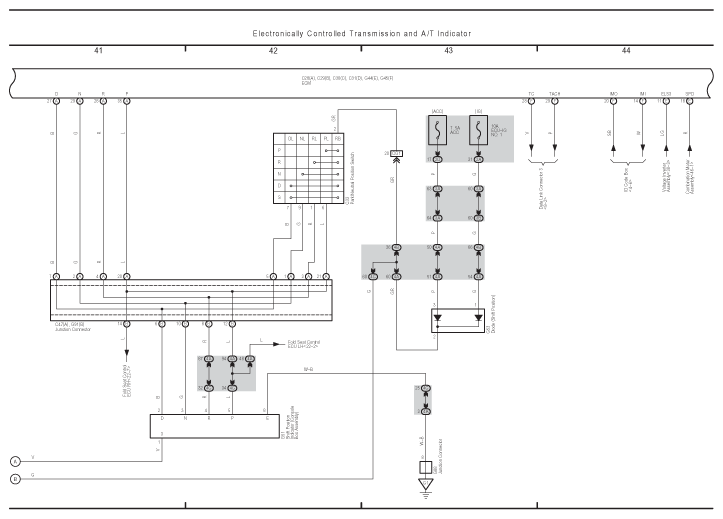

Fig 9: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram (1 Of 3)

Fig 10: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram (2 Of 3)

Fig 11: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram (3 Of 3)

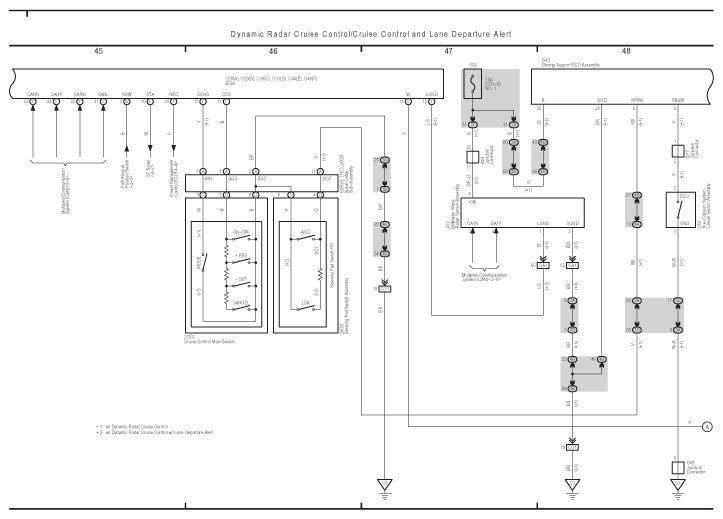

Fig 12: Dynamic Radar Cruise Control/Cruise Control And Lane Departure Alert Electrical Wiring Diagram (1 Of 2)

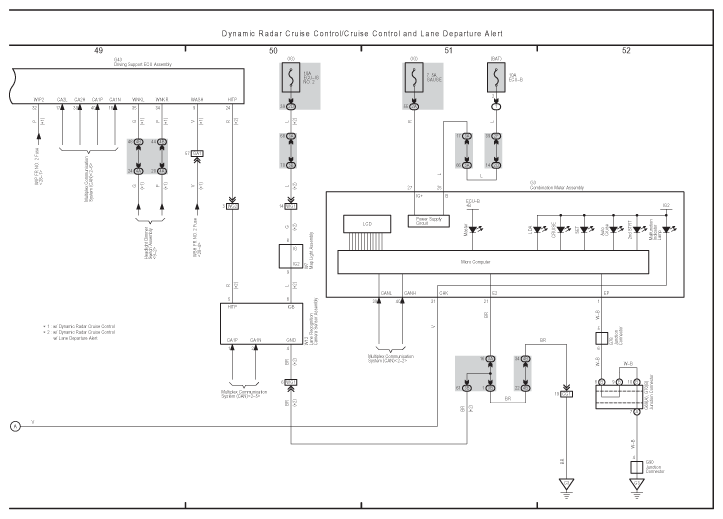

Fig 13: Dynamic Radar Cruise Control/Cruise Control And Lane Departure Alert Electrical Wiring Diagram (2 Of 2)
