Climate Control Seat, Seat Heater (Front)

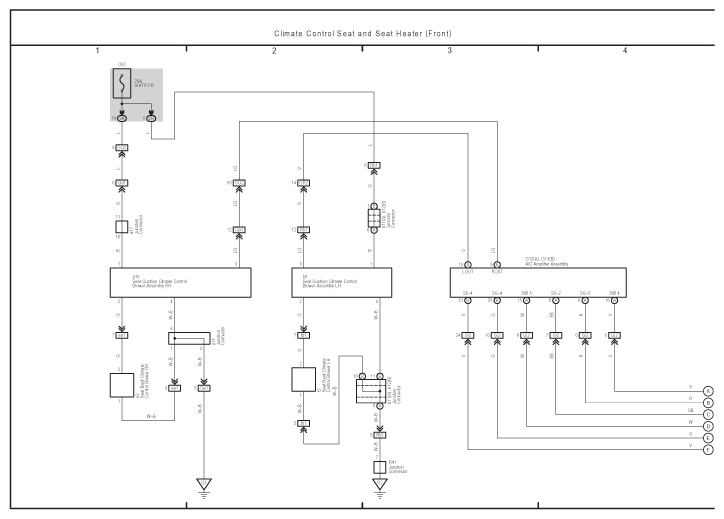

Fig 1: Climate Control Seat And Seat Heater (Front) Electrical Wiring Diagram (1 Of 2)
G07579784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

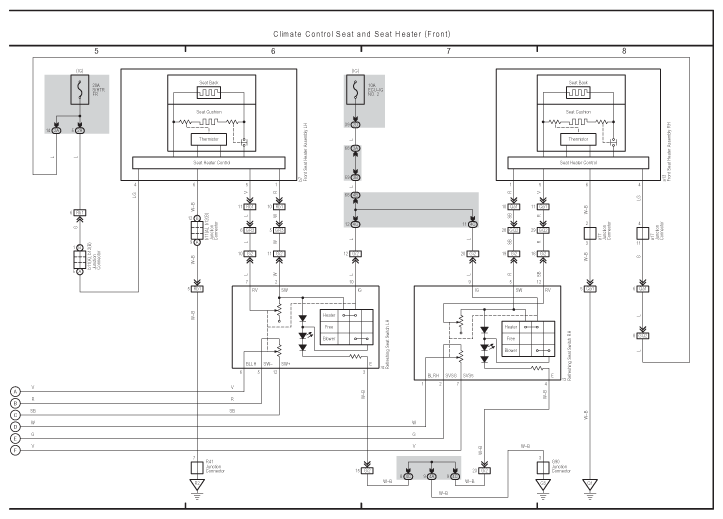

Fig 2: Climate Control Seat And Seat Heater (Front) Electrical Wiring Diagram (2 Of 2)
G07579785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
