Overall Electrical Wiring Diagram: Charging

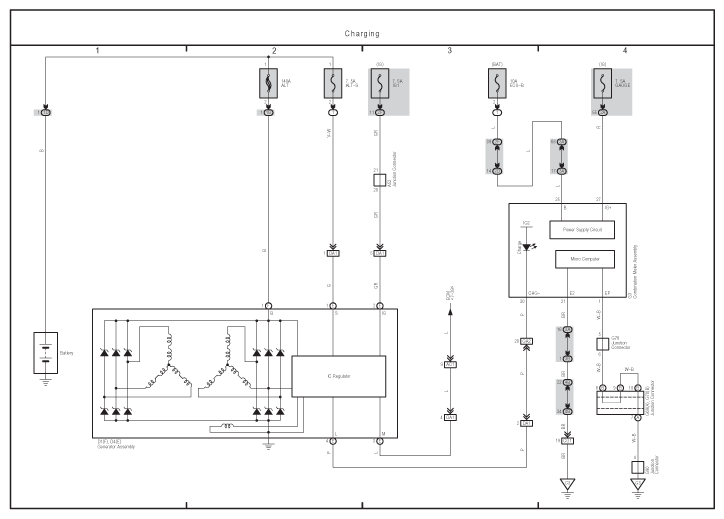

Fig 1: Charging Electrical Wiring Diagram

G07579744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
