Back-Up Light

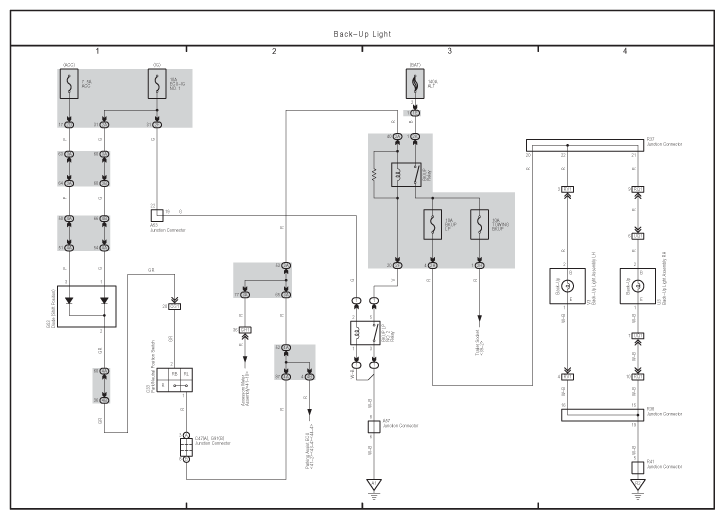

Fig 1: Back-Up Light Electrical Wiring Diagram

G07579764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
