Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror with Compass, Garage Door Opener
Automatic Glare-Resistant EC Mirror with Compass, Garage Door Opener

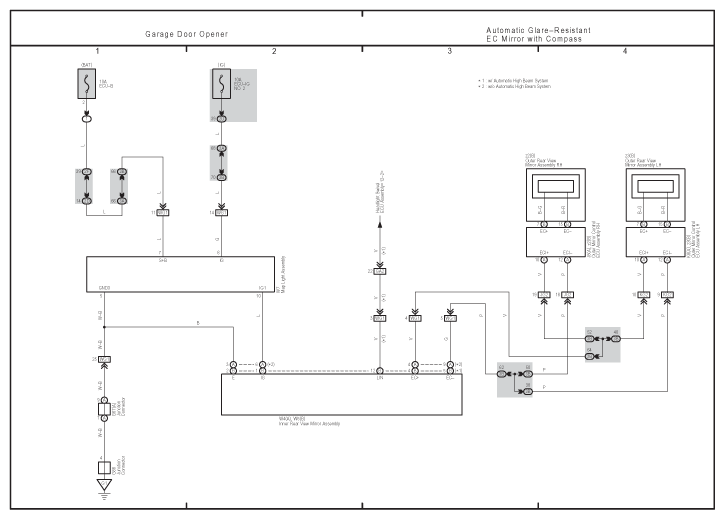

Fig 1: Automatic Glare-resistant EC Mirror With Compass Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
