Audio System (w/o LEXUS Navigation System)

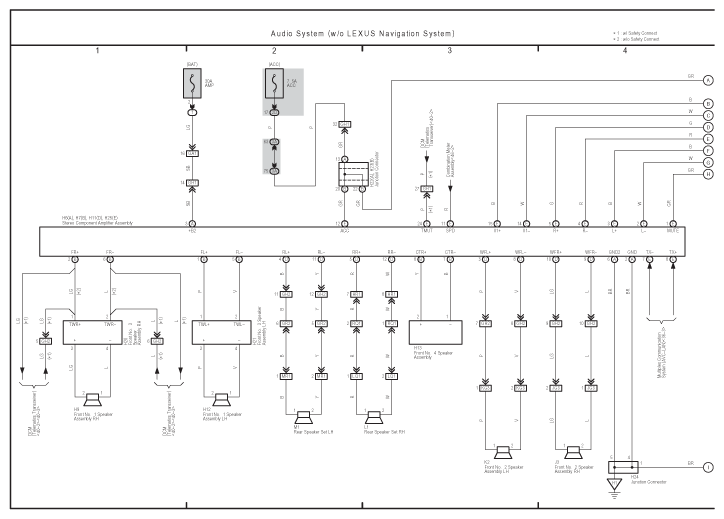

Fig 1: Audio System (W/O Lexus Navigation System) Electrical Wiring Diagram (1 Of 3)
G07579835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

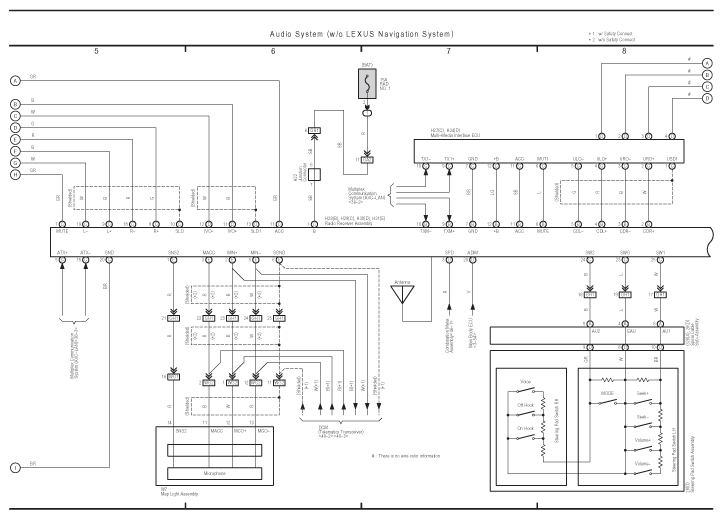

Fig 2: Audio System (W/O Lexus Navigation System) Electrical Wiring Diagram (2 Of 3)
G07579836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Audio System (W/O Lexus Navigation System) Electrical Wiring Diagram (3 Of 3)
G07579837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
