Audio System (9 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (9 Speaker), Multi-Terrain Monitor (9 Speaker w/ LEXUS Navigation System), Parking Assist (Rear View Monitor and Wde-View Front & Side Monitor) (9 Speaker w/ LEXUS Navigation System)

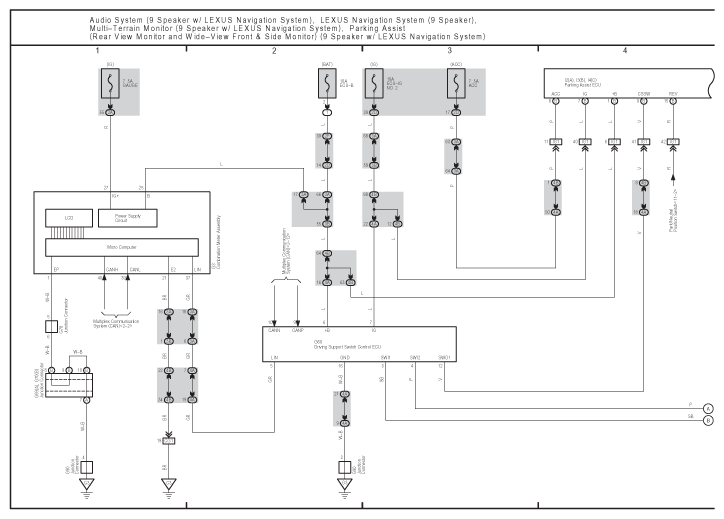

Fig 1: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

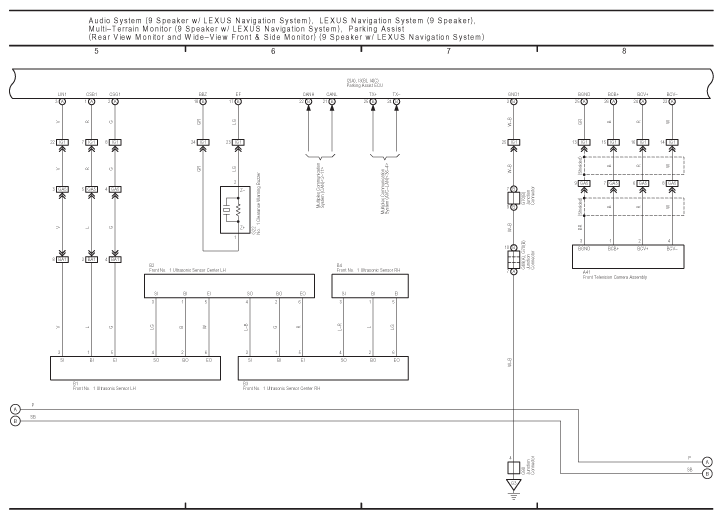

Fig 2: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

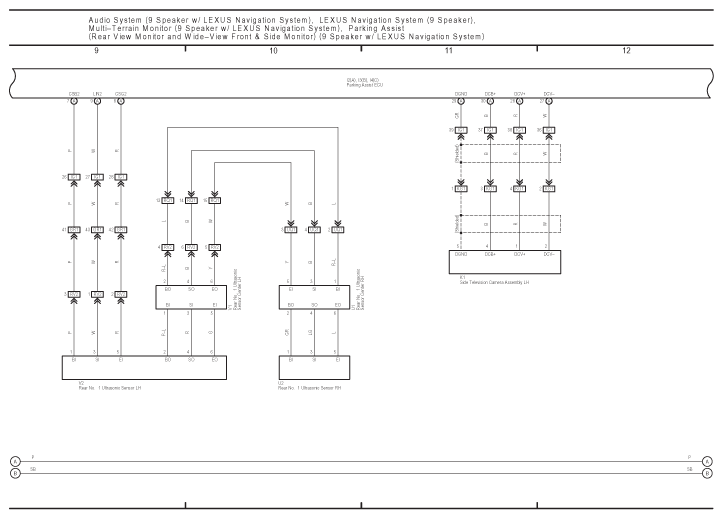

Fig 3: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

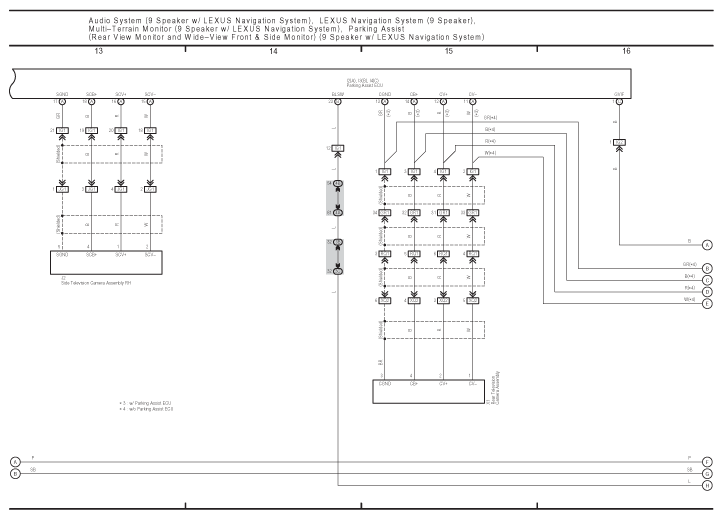

Fig 4: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

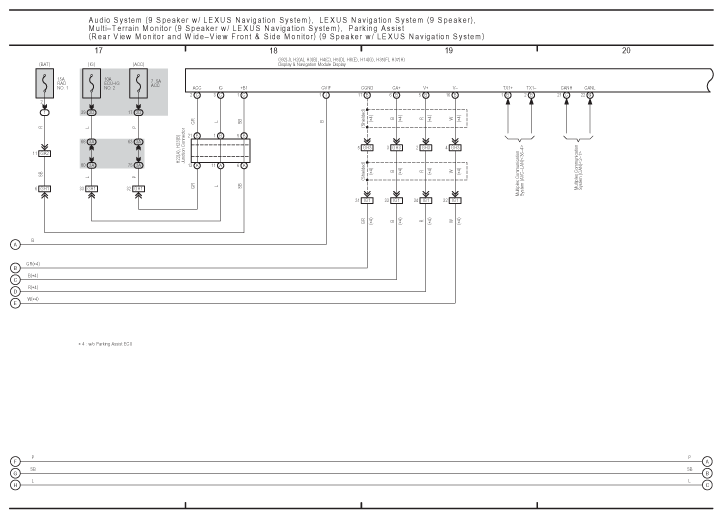

Fig 5: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

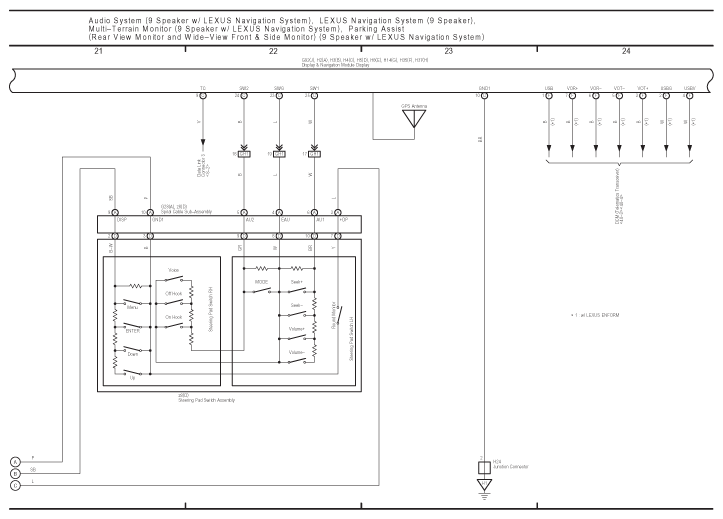

Fig 6: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (8 Of 11)

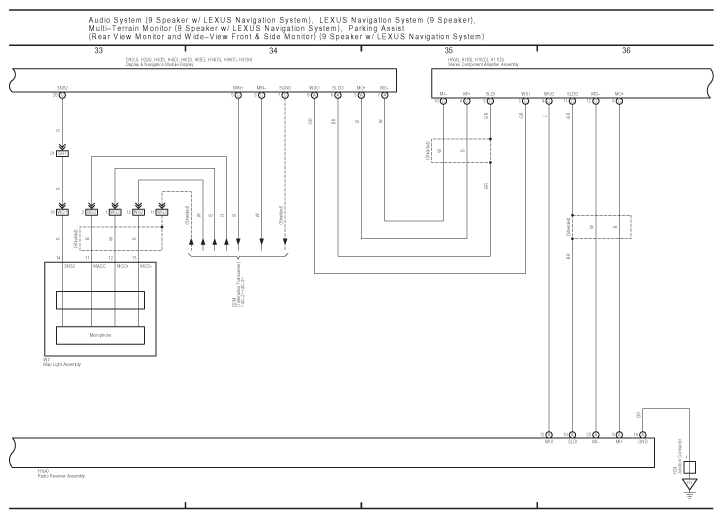

Fig 9: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (9 Of 11)

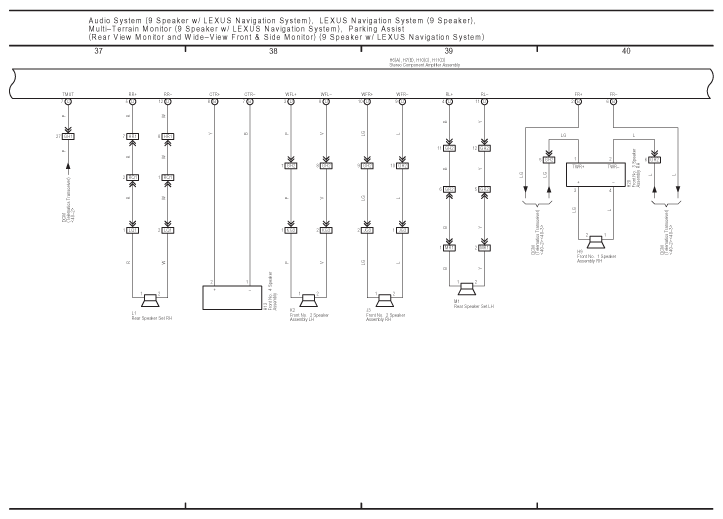

Fig 10: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (10 Of 11)

Fig 11: Audio System, Lexus Navigation System, Multi-terrain Monitor, Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (11 Of 11)
