Audio System (17 Speaker w/ LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/ LEXUS Navigation System), Parking Assist (Rear View Monitor and Wde-View Front & Side Monitor) (17 Speaker w/ LEXUS Navigation System)

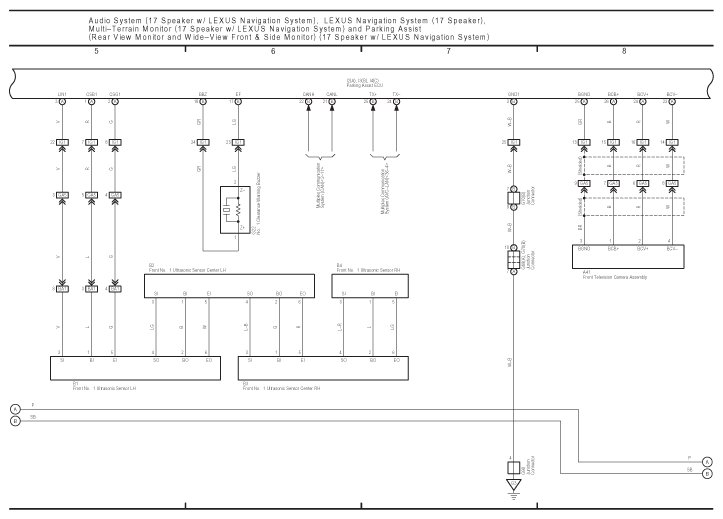

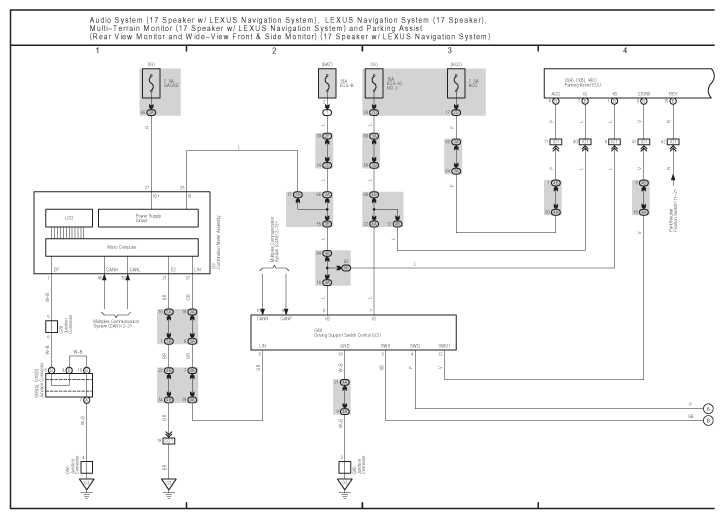

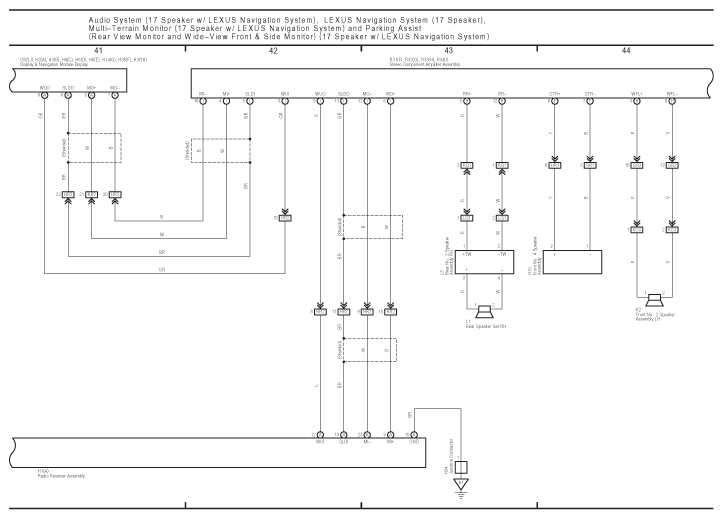

Fig 1: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

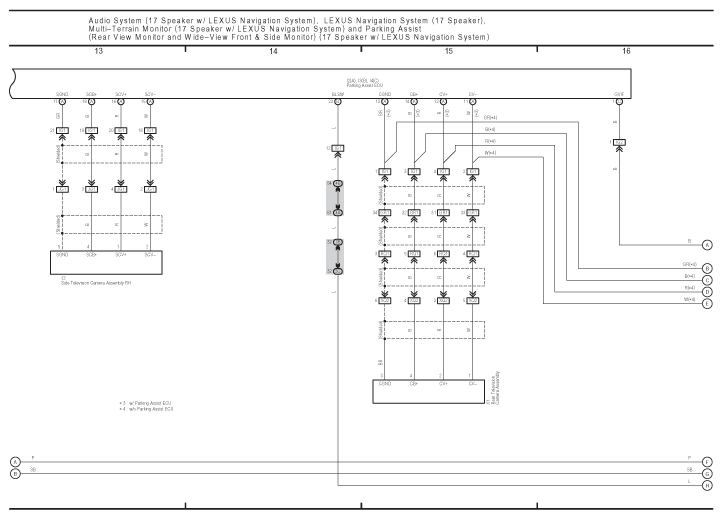

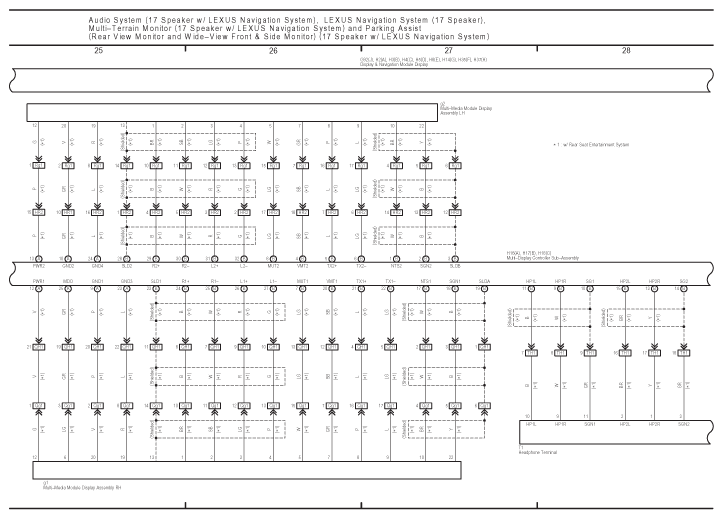

Fig 2: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

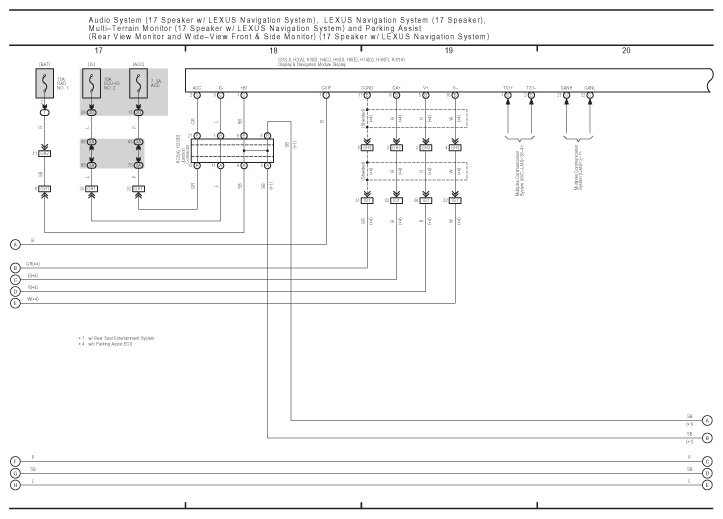

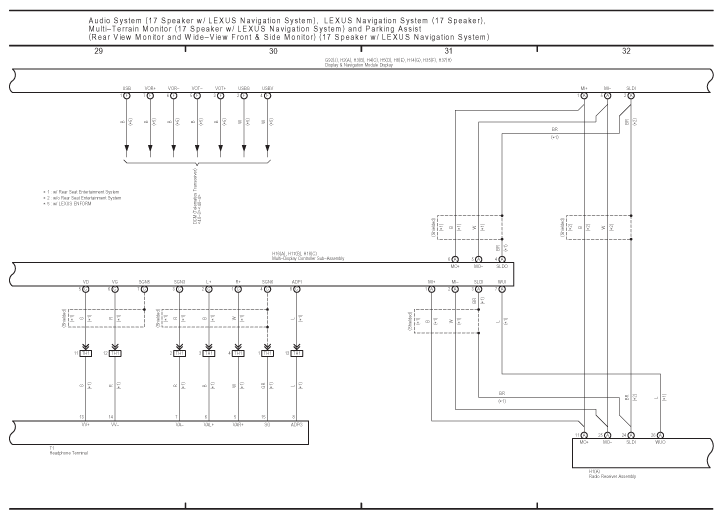

Fig 3: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

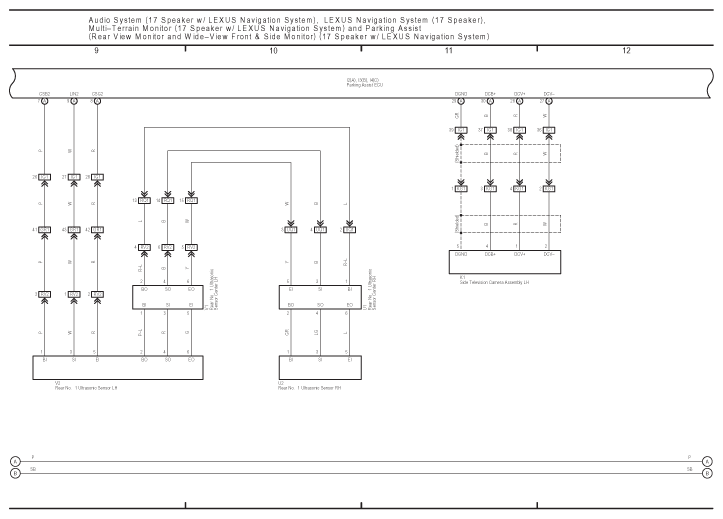

Fig 4: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

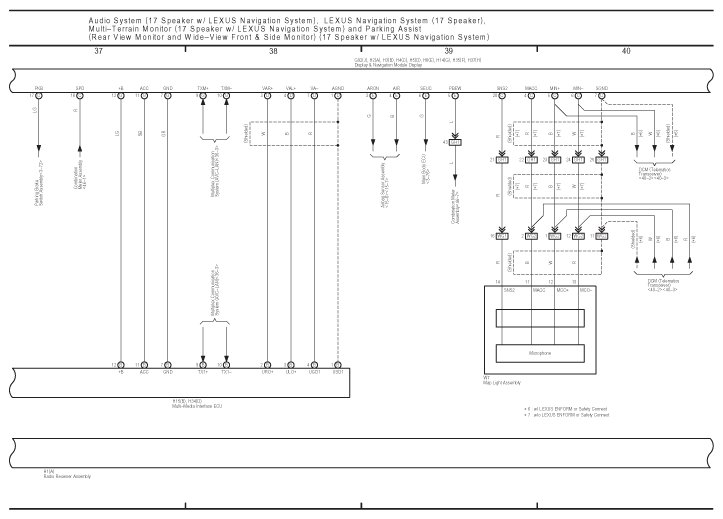

Fig 6: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

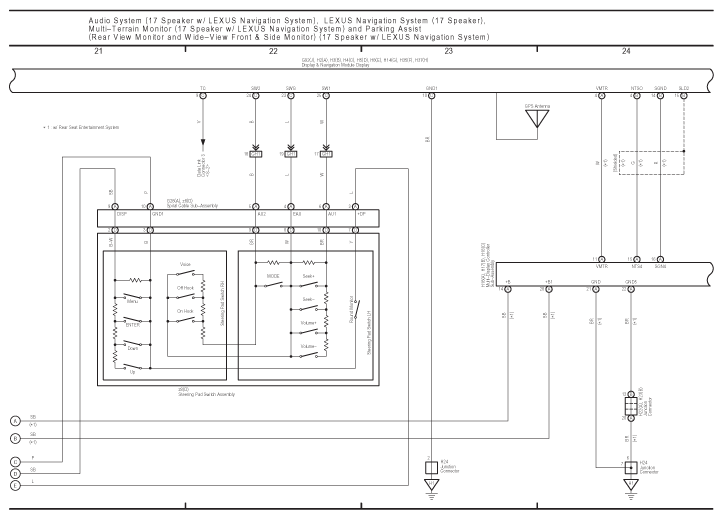

Fig 7: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

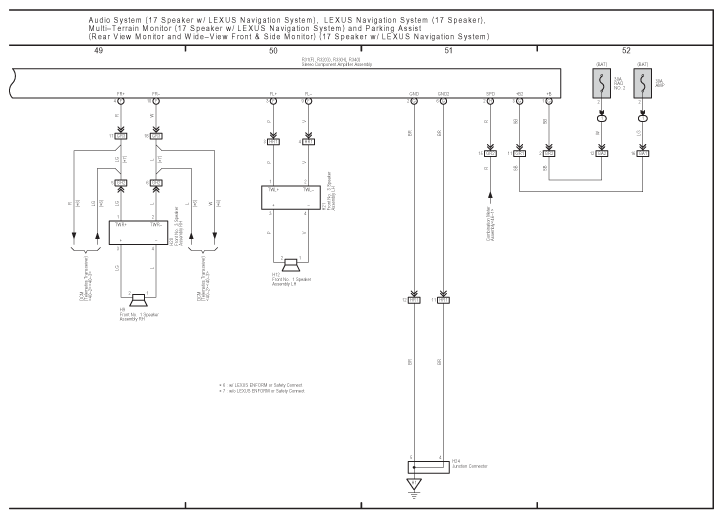

Fig 8: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (9 Of 13)

Fig 10: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (10 Of 13)

Fig 11: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (11 Of 13)

Fig 12: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (12 Of 13)

Fig 13: Audio System, Lexus Navigation System, Multi-terrain Monitor And Parking Assist (Rear View Monitor And Wide-view Front & Side Monitor) Electrical Wiring Diagram (13 Of 13)
