Air Conditioning

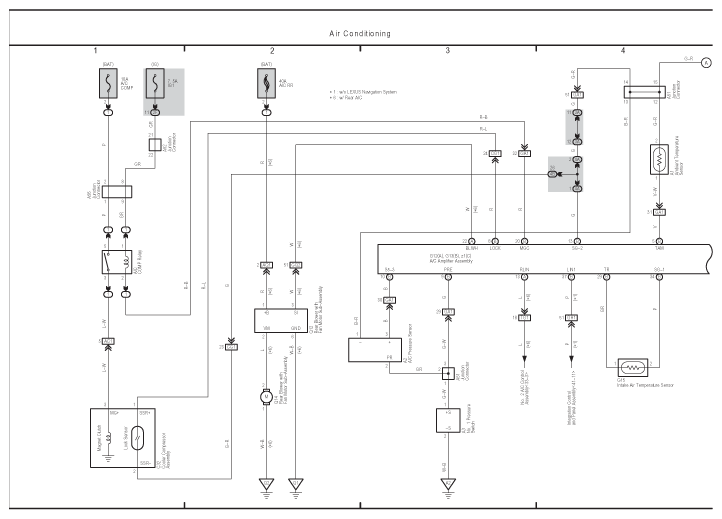

Fig 1: Air Conditioning Electrical Wiring Diagram (1 Of 4)
G07579841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Air Conditioning Electrical Wiring Diagram (2 Of 4)
G07579842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

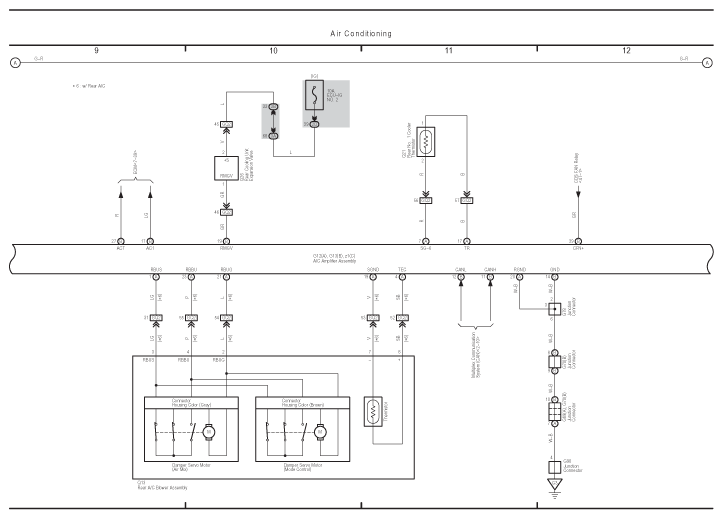

Fig 3: Air Conditioning Electrical Wiring Diagram (3 Of 4)
G07579843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Air Conditioning Electrical Wiring Diagram (4 Of 4)
G07579844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
