Adaptive Front Lighting System
Adaptive Front Lighting System

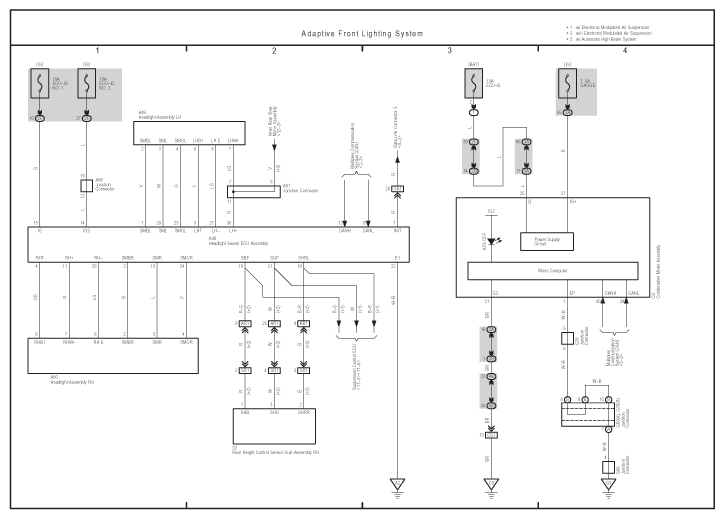

Fig 1: Adaptive Front Lighting System Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
