ABS, A-TRAC, Brake Assist, Crawl, Downhill Assist Control, EBD,Hill-Start Assist Control, Multi-Terrain Select, VSC

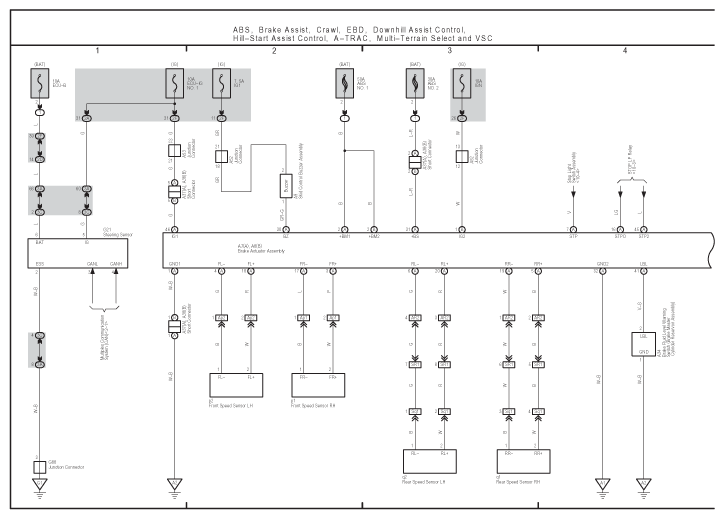

Fig 1: ABS , Brake Assist, Crawl, EBD , Downhill Assist Control, Hill-start Assist Control, A-TRAC, Multi-terrain Select And VSC Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

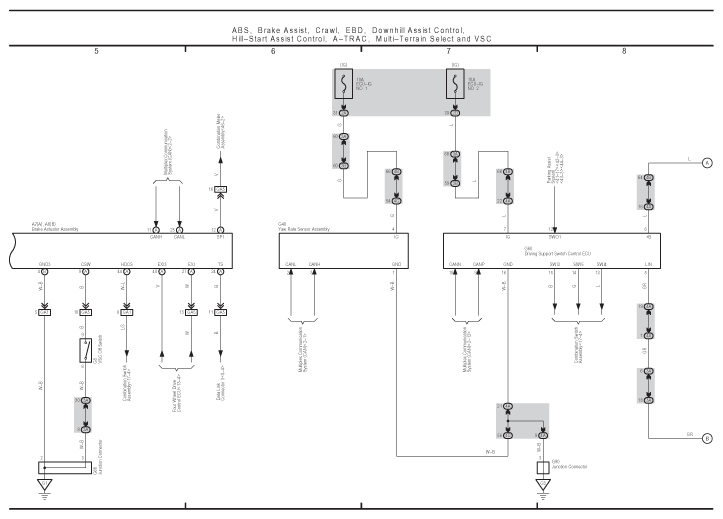

Fig 2: ABS , Brake Assist, Crawl, EBD , Downhill Assist Control, Hill-start Assist Control, A-TRAC, Multi-terrain Select And VSC Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: ABS , Brake Assist, Crawl, EBD , Downhill Assist Control, Hill-start Assist Control, A-TRAC, Multi-terrain Select And VSC Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
