Instrument Panel Junction Block Assembly Inner Circuit

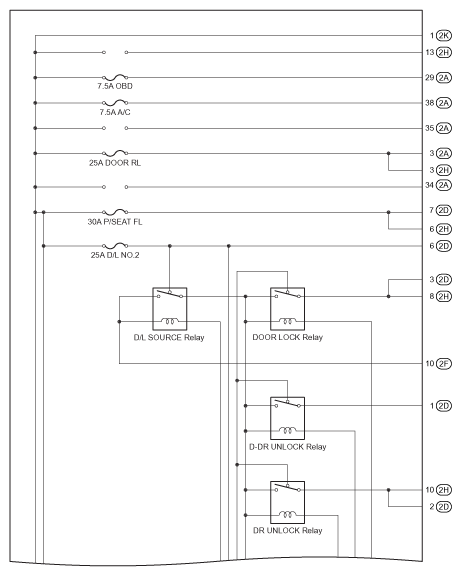

Fig 1: Instrument Panel J/B Assembly Inner Circuit Diagram & Relays (1 Of 6)
G07579209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
D/L Source Relay
Door Lock Relay
D DR Unlock Relay
DR Unlock Relay

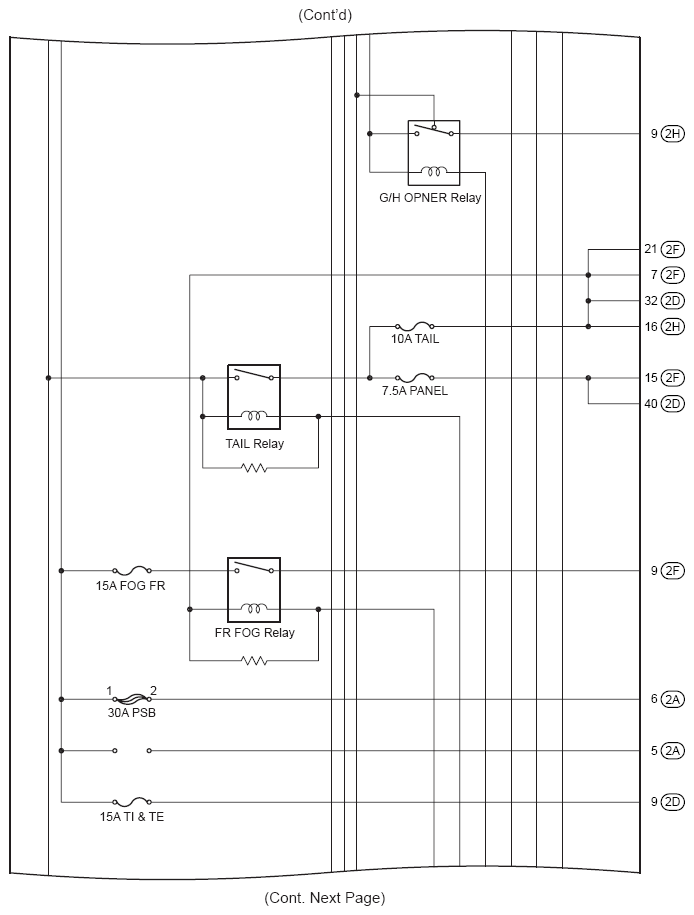

Fig 2: Instrument Panel J/B Assembly Inner Circuit Diagram & Relays (2 Of 6)
G07579210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
G/H Opner Relay
Tail Relay
FR Fog Relay

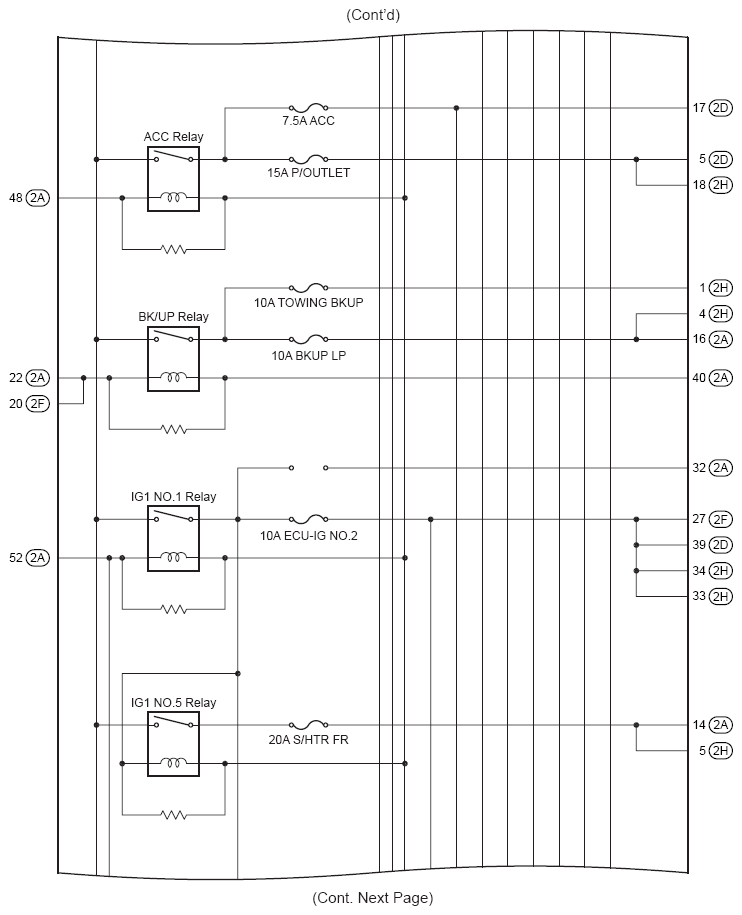

Fig 3: Instrument Panel J/B Assembly Inner Circuit Diagram & Relays (3 Of 6)
G07579211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Relay
BK/UP Relay
IG1 No. 1 Realy
IG1 No. 5 Realy

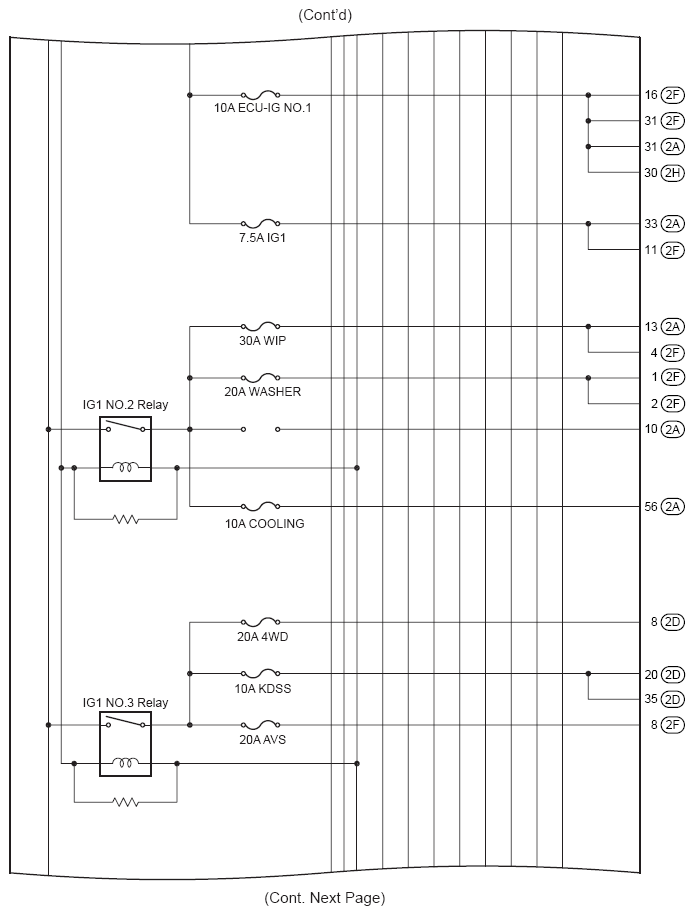

Fig 4: Instrument Panel J/B Assembly Inner Circuit Diagram & Relays (4 Of 6)
G07579212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 No. 2 Relay
IG1 No. 3 Relay

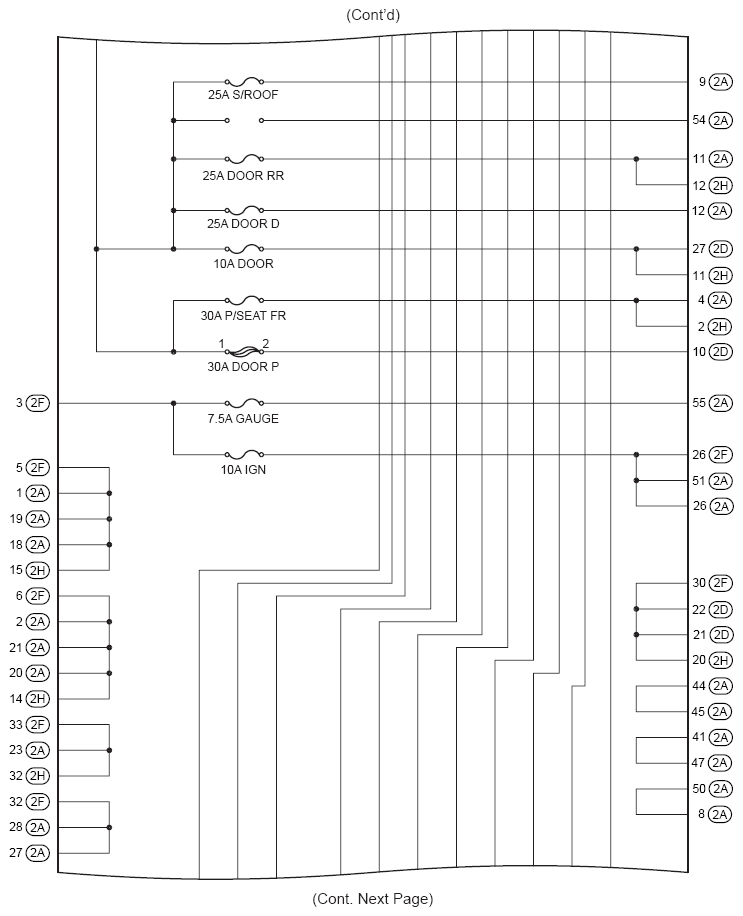

Fig 5: Instrument Panel J/B Assembly Inner Circuit Diagram (5 Of 6)
G07579213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

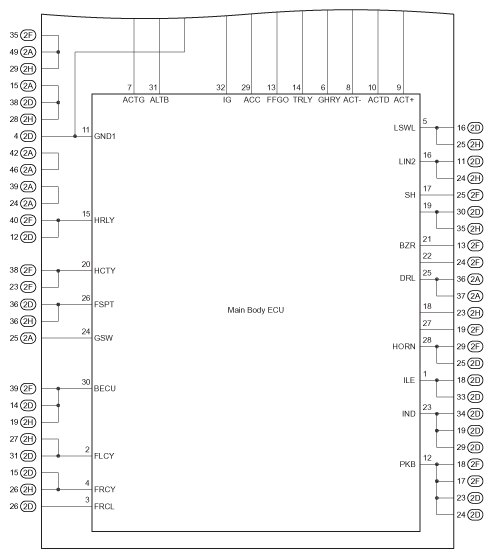

Fig 6: Instrument Panel J/B Assembly Inner Circuit Diagram (6 Of 6)
G07579214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
