Rear Brake Pad, Brake Caliper & Brake Rotor: Components: Illustration

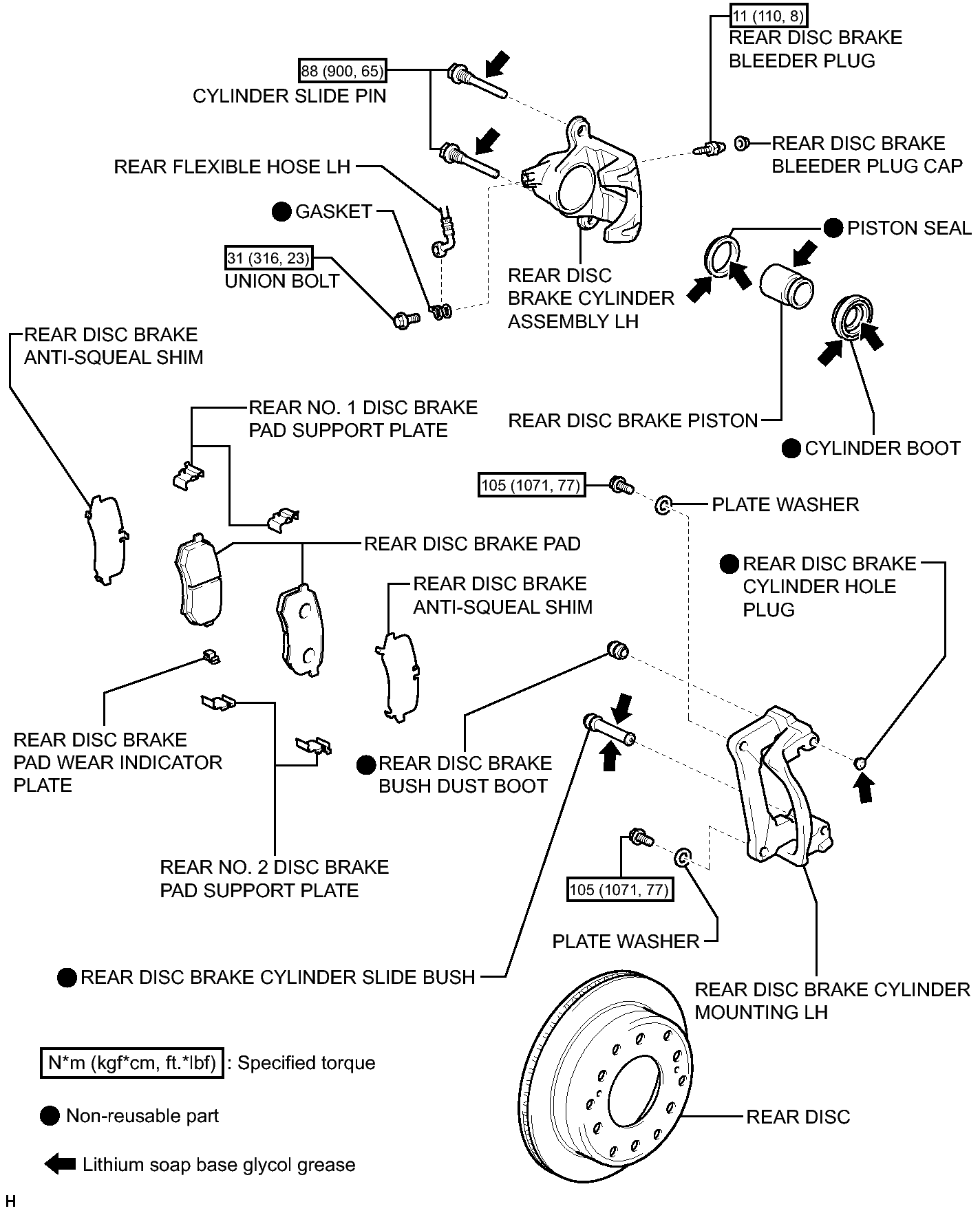

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications

GTY224310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
