Rear Brake Flexible Hose: Components: Illustration

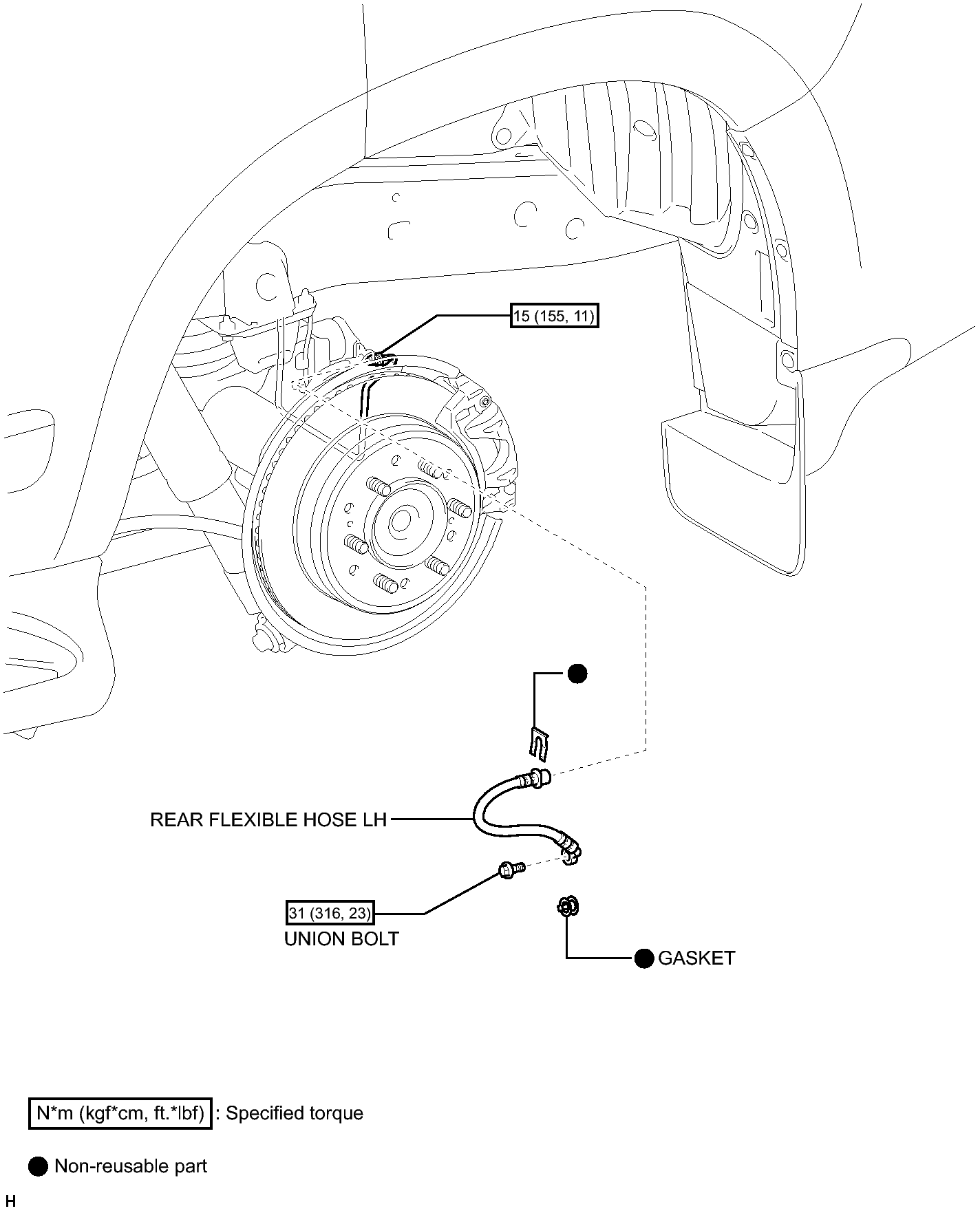

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specifications (1 Of 2)
GTY263684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

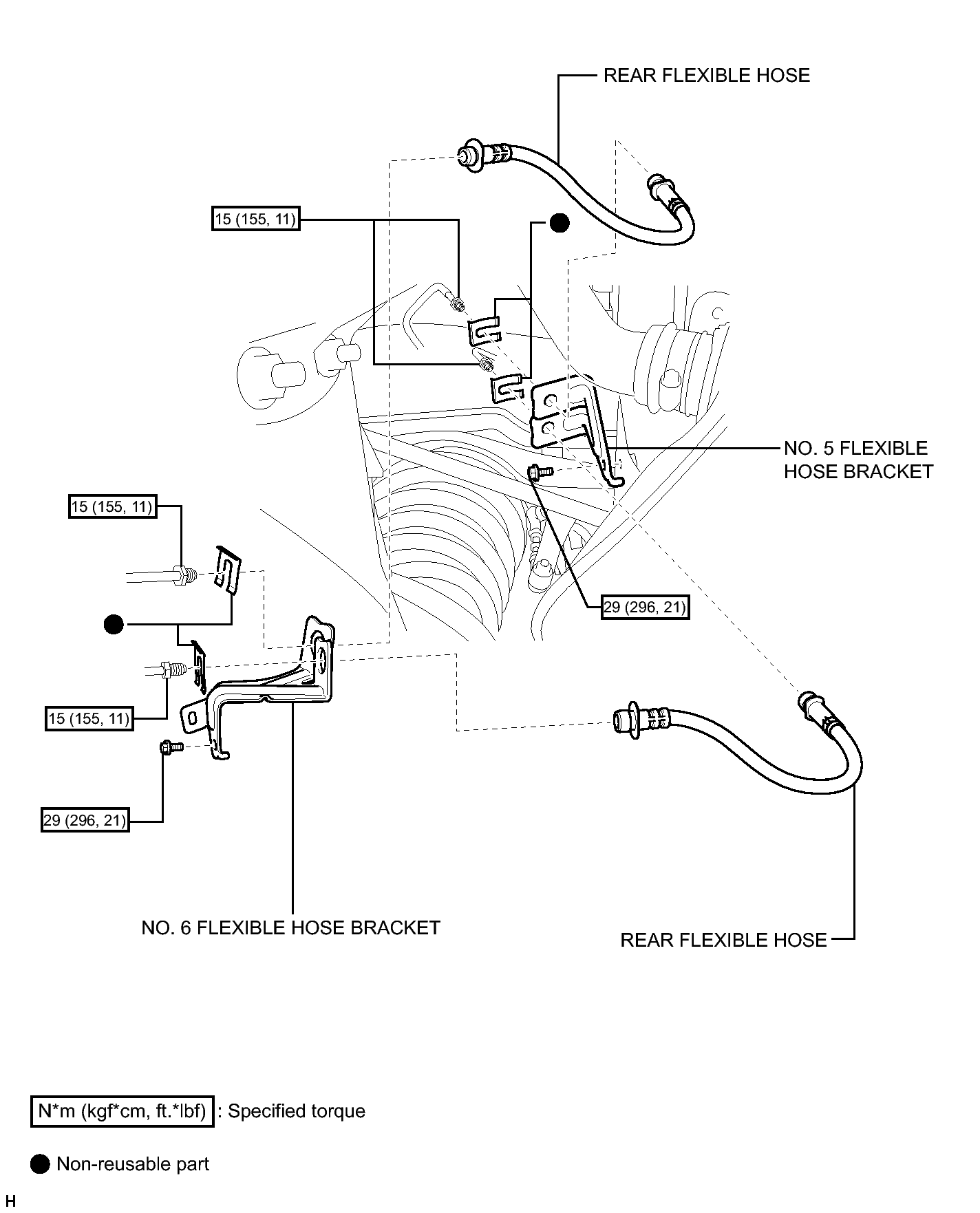

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specifications (2 Of 2)
GTY236326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
