TS and CG Terminal Circuit: Wiring Diagram

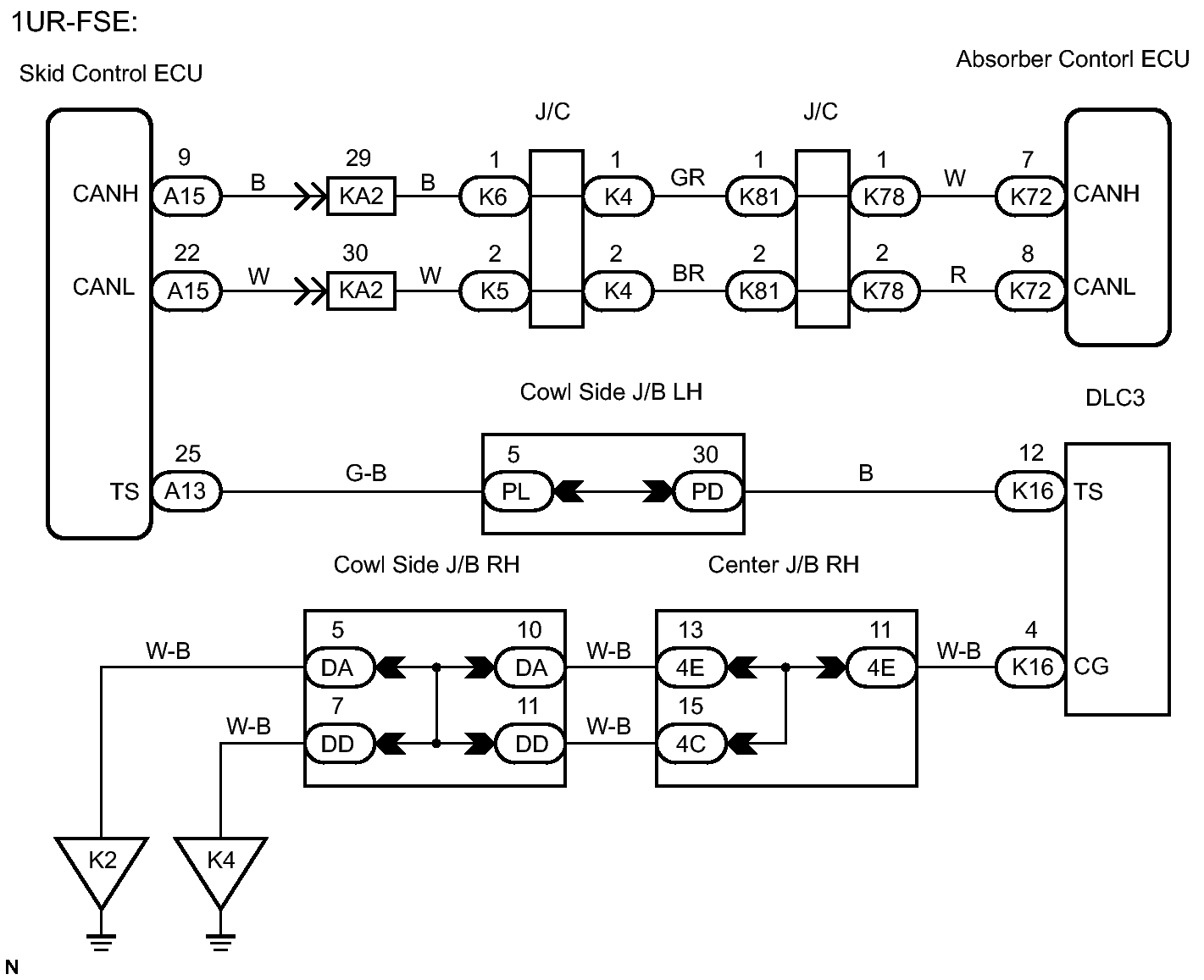

Fig 1: Identifying TS and CG Terminal Circuit (1UR-FSE) - Wiring Diagram
GTY261923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

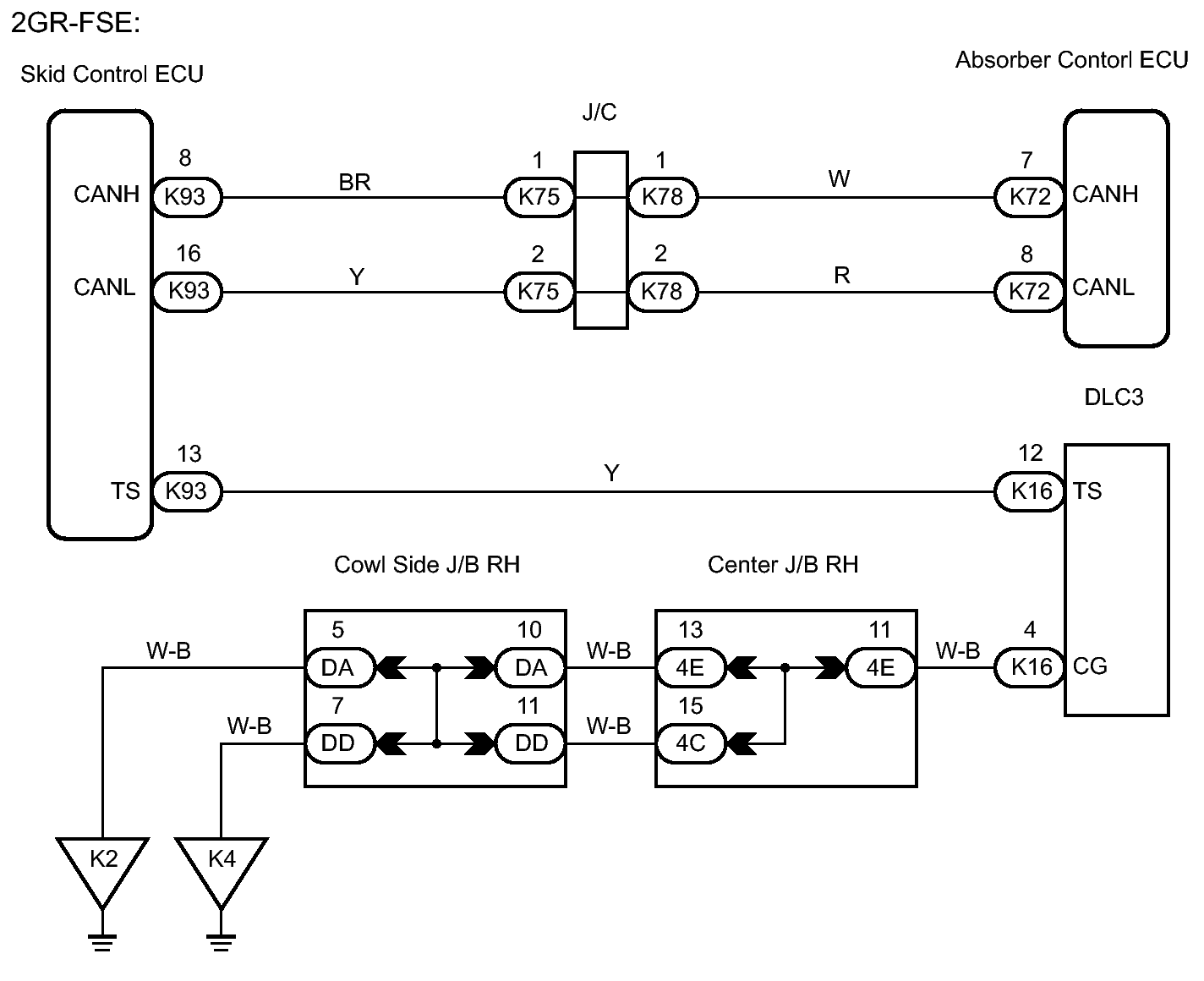

Fig 2: Identifying TS and CG Terminal Circuit (2GR-FSE) - Wiring Diagram
GTY283465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
