TC and CG Terminal Circuit: Wiring Diagram

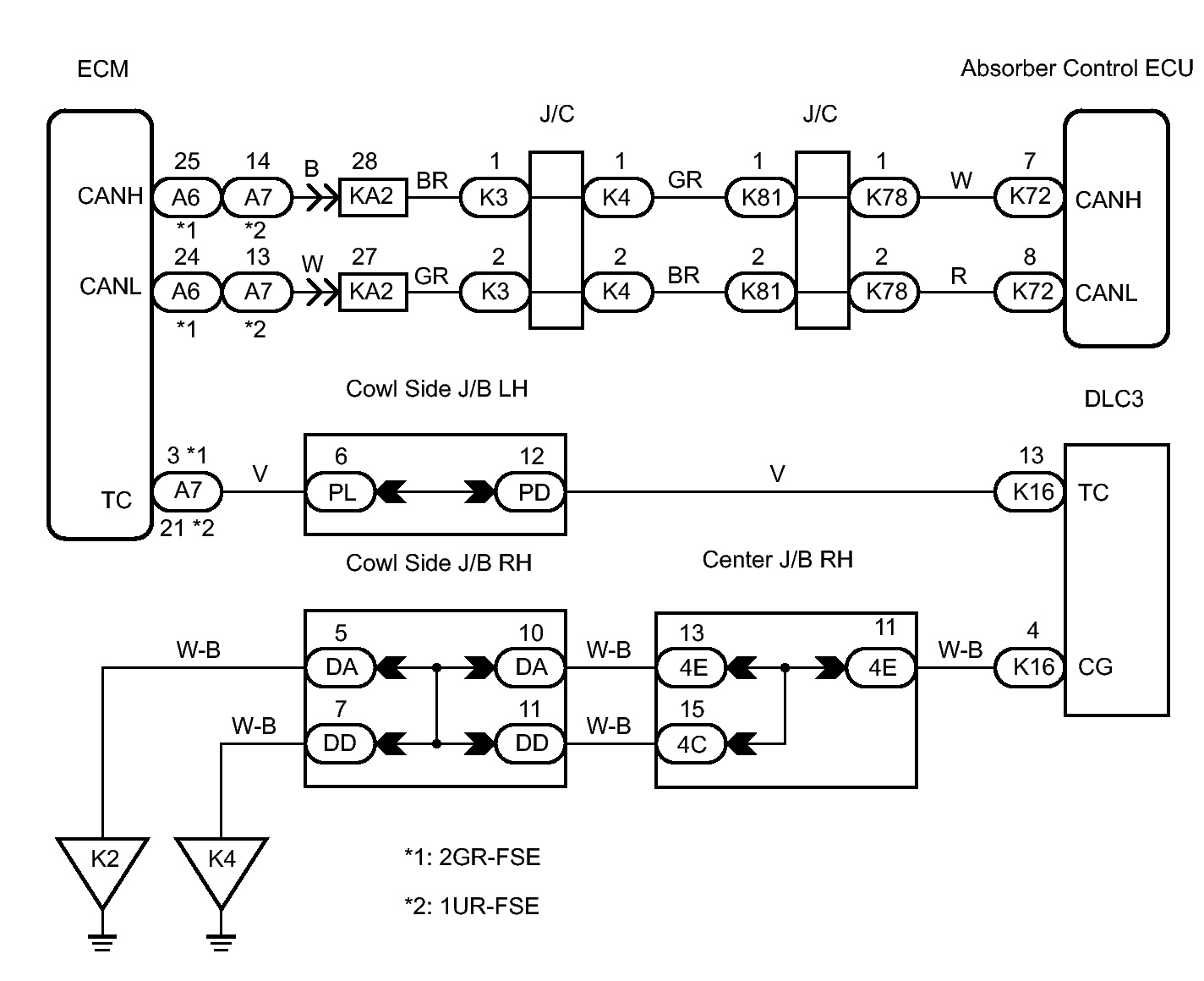

Fig 1: Identifying TC and CG Terminal Circuit - Wiring Diagram

GTY287085

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
