DTC C1787: EMS Switch Circuit (Test Mode DTC): Wiring Diagram

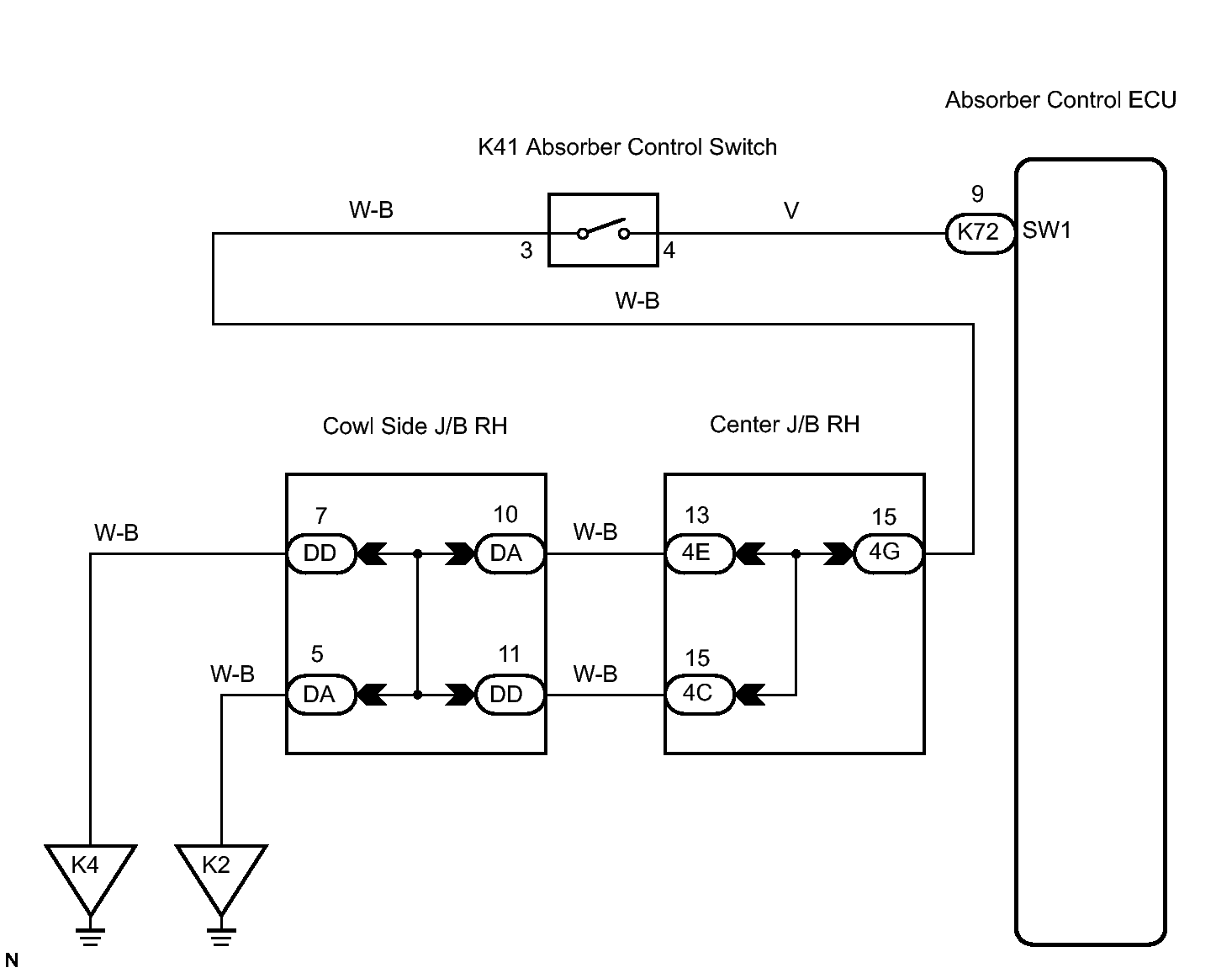

Fig 1: Identifying EMS Switch Circuit (Test Mode DTC) - Wiring Diagram

GTY106873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
