DTC C1777: Steering Angle Sensor Circuit: Wiring Diagram

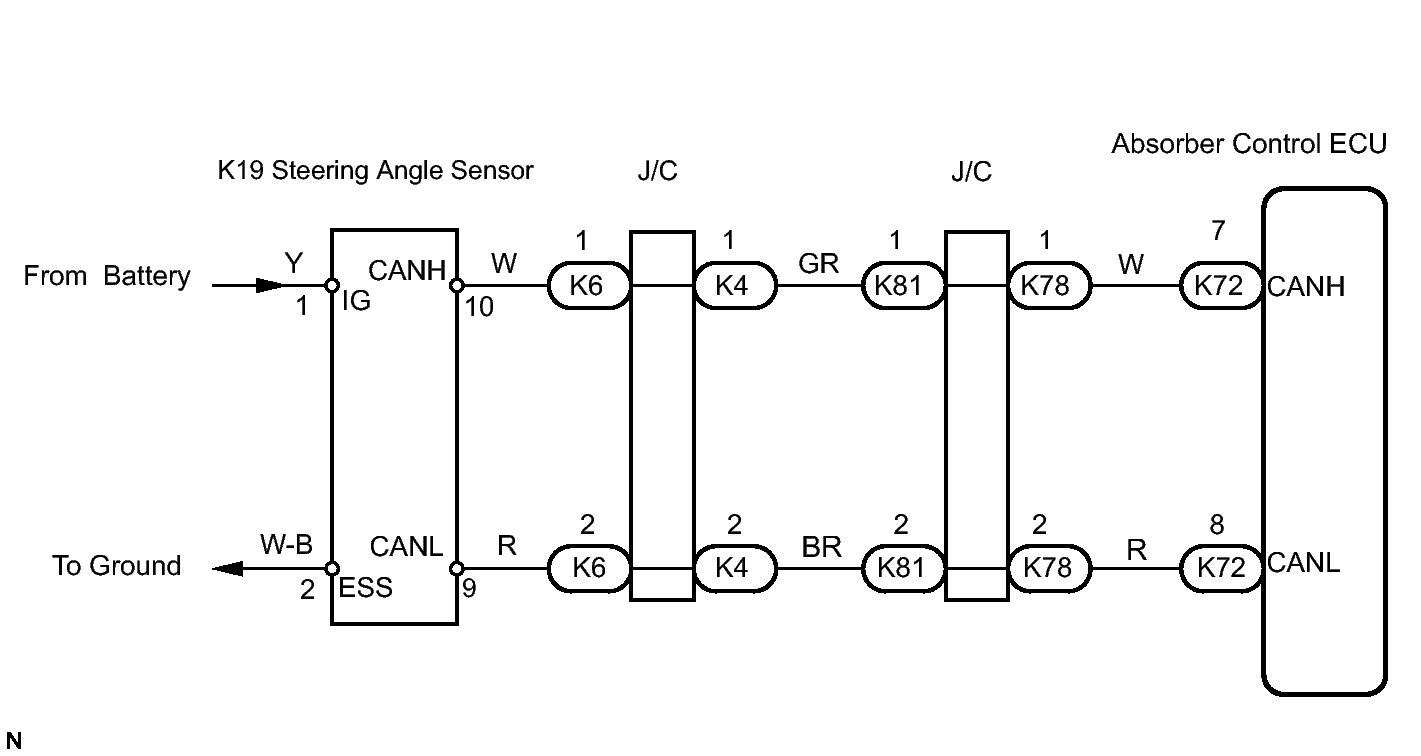

Fig 1: Identifying Steering Angle Sensor Circuit - Wiring Diagram

GTY283040

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
