DTC C1776: Speed Sensor Circuit: Wiring Diagram

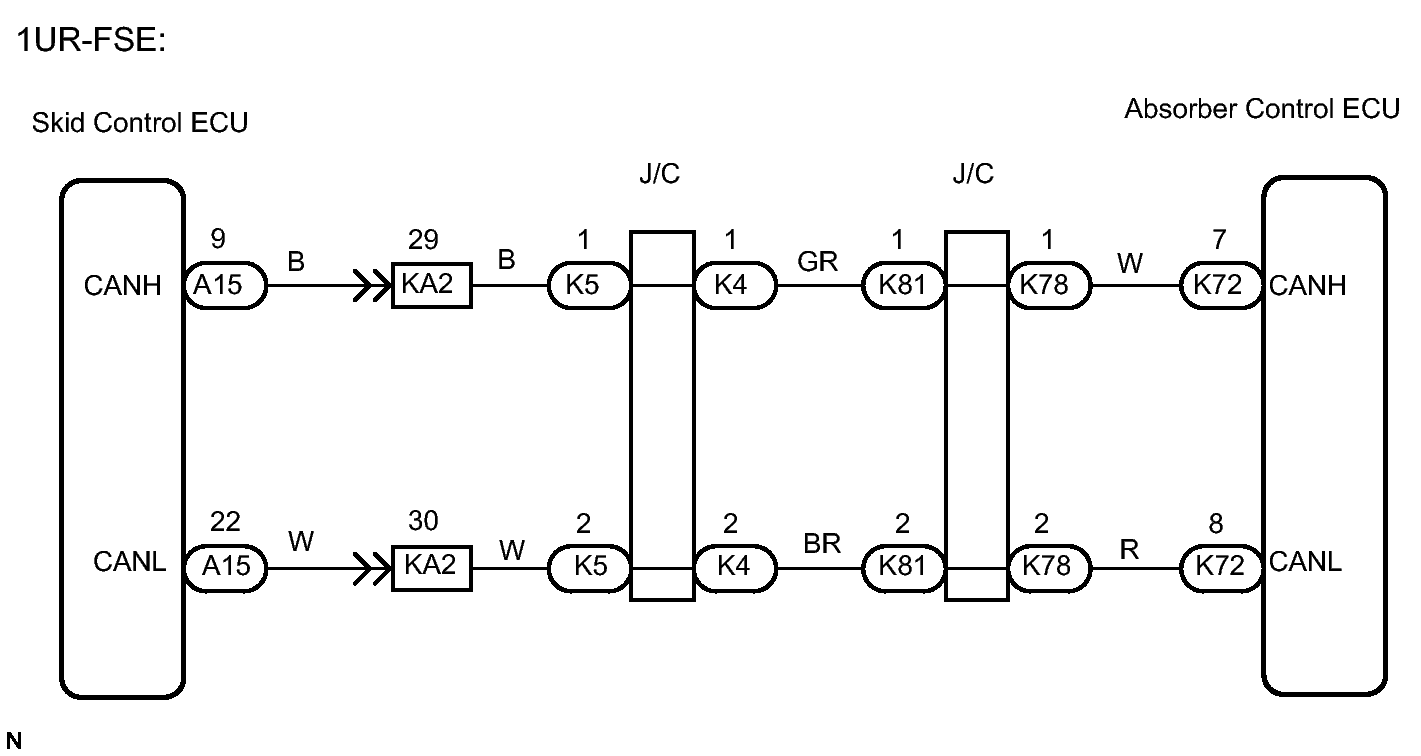

Fig 1: Identifying Speed Sensor Circuit (1UR-FSE) Wiring Diagram
GTY268041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

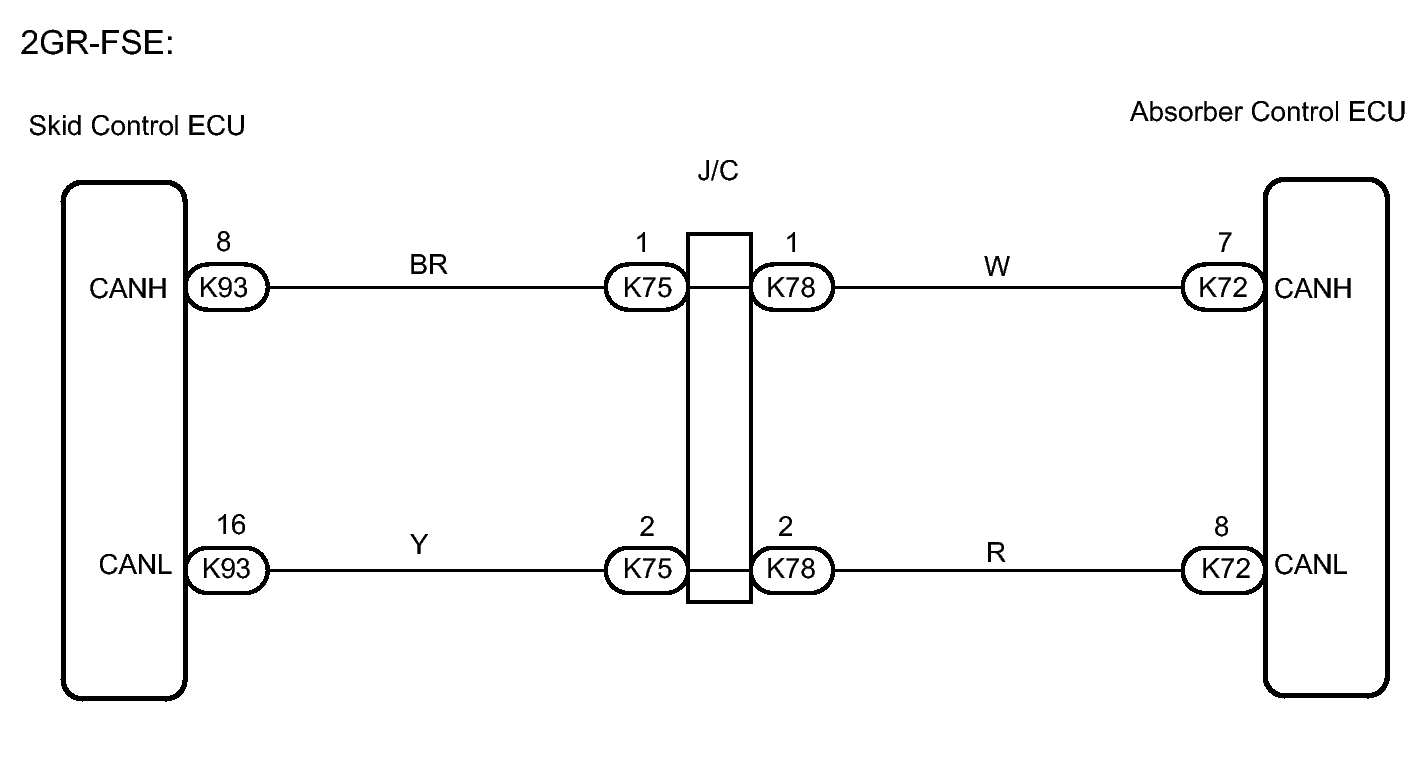

Fig 2: Identifying Speed Sensor Circuit (2GR-FSE) Wiring Diagram
GTY271924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
