DTC C1773: VGRS ECU Malfunction: Wiring Diagram

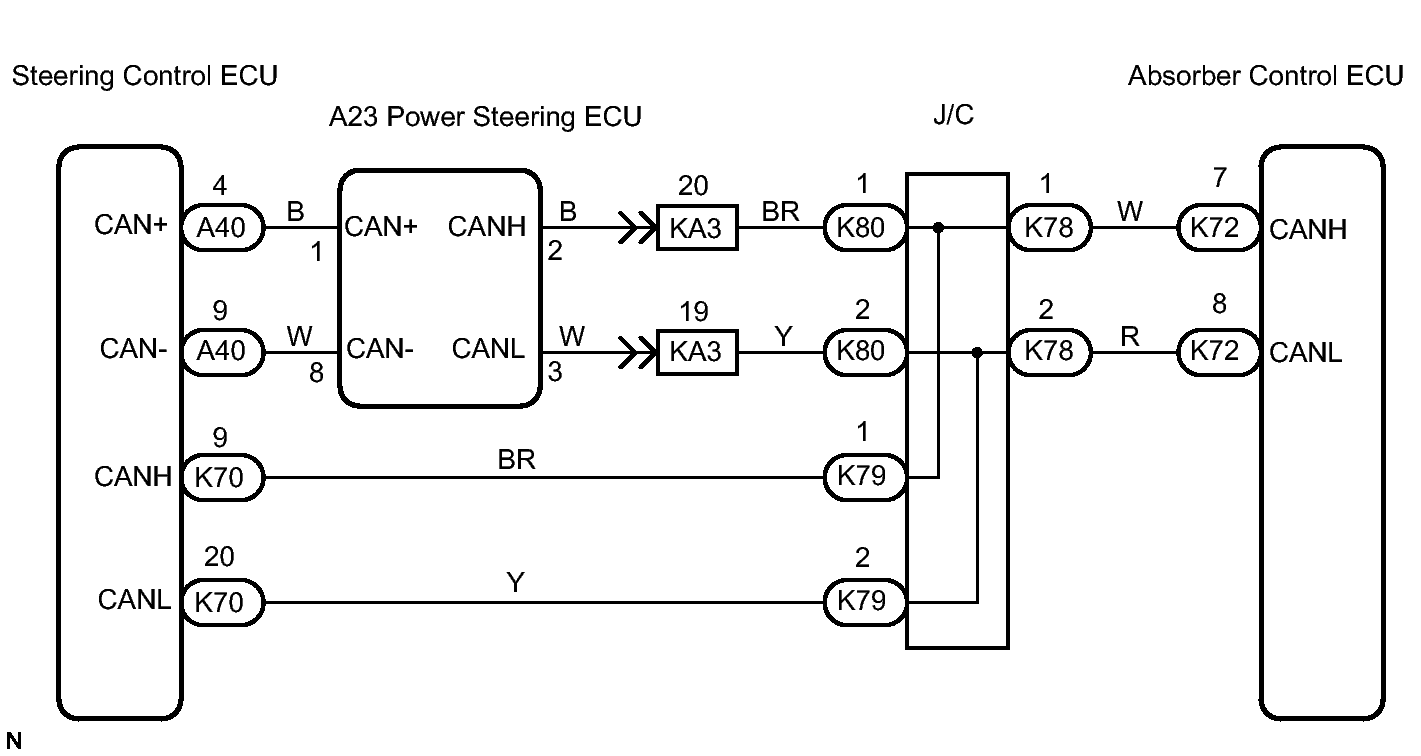

Fig 1: Identifying VGRS ECU Malfunction - Wiring Diagram

GTY269200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
