Absorber Control Indicator Light Remains ON: Wiring Diagram

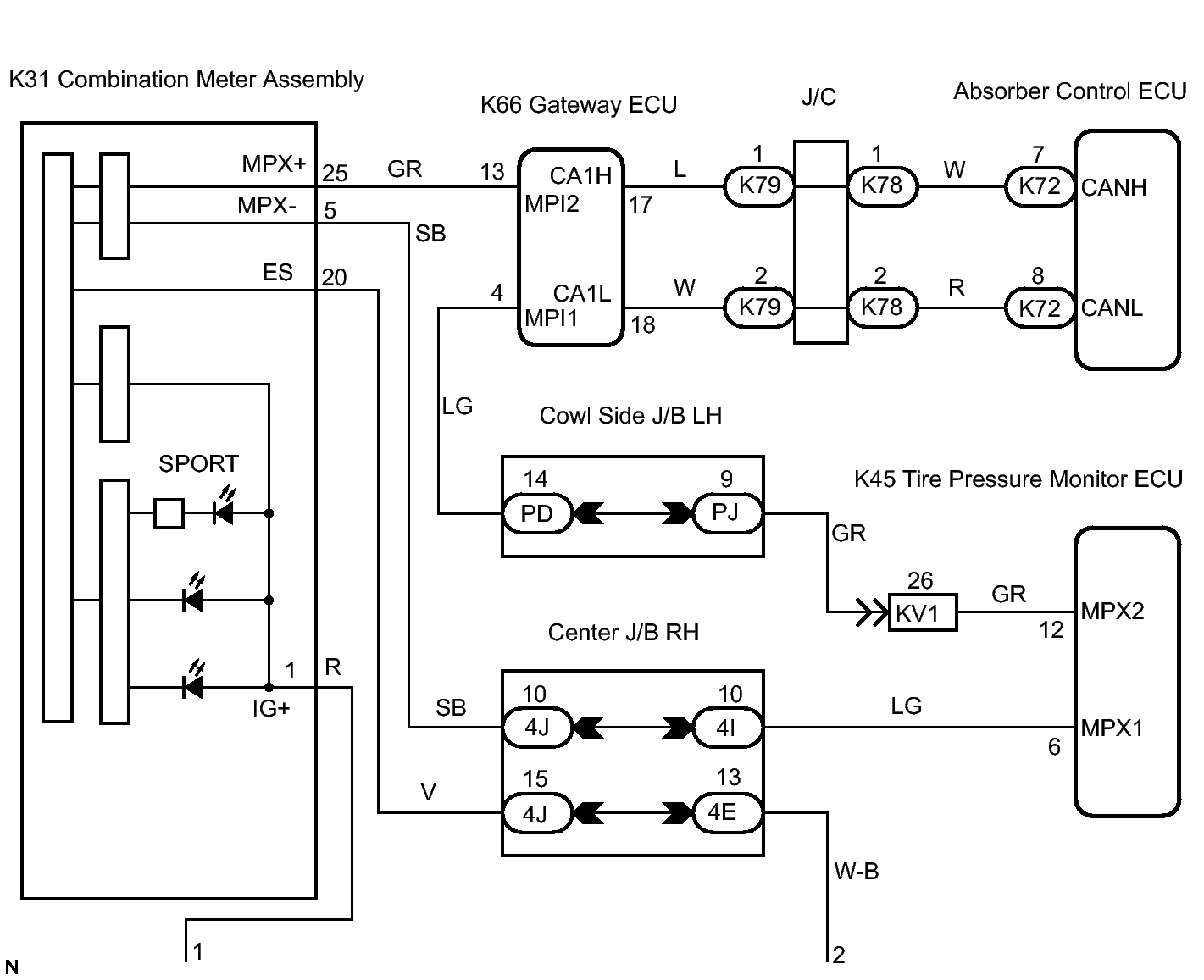

Fig 1: Identifying Absorber Control ECU - Wiring Diagram (1 Of 2)
GTY275054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

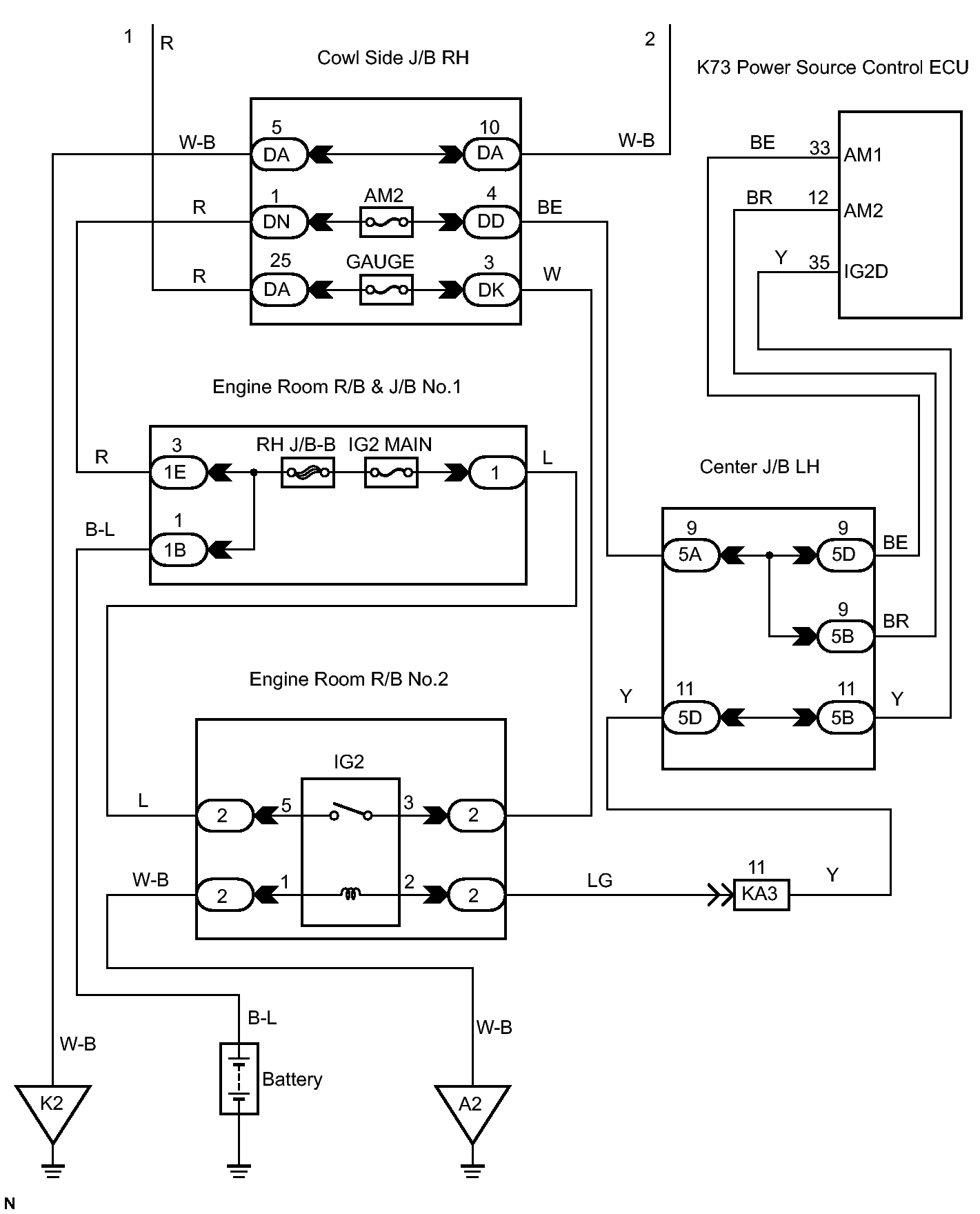

Fig 2: Identifying Absorber Control ECU - Wiring Diagram (2 Of 2)
GTY258622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
