Multiplex Communication System (BEAN-lnstrument Panel and BEAN-Steering Column)

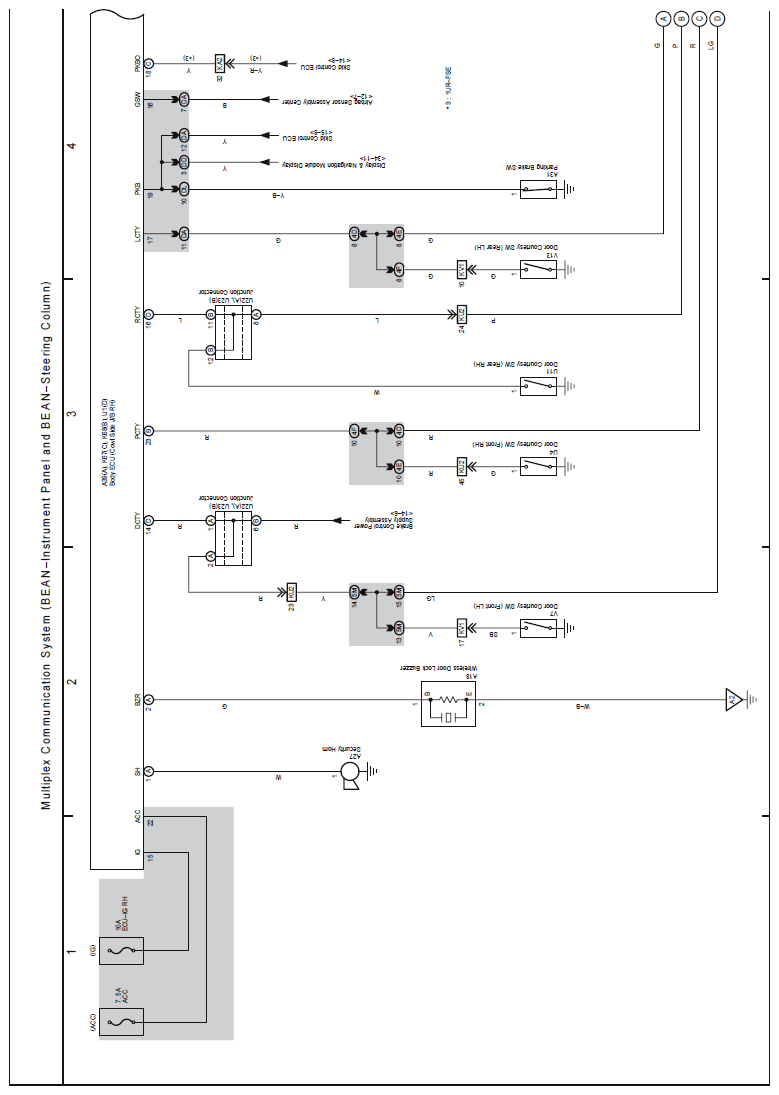

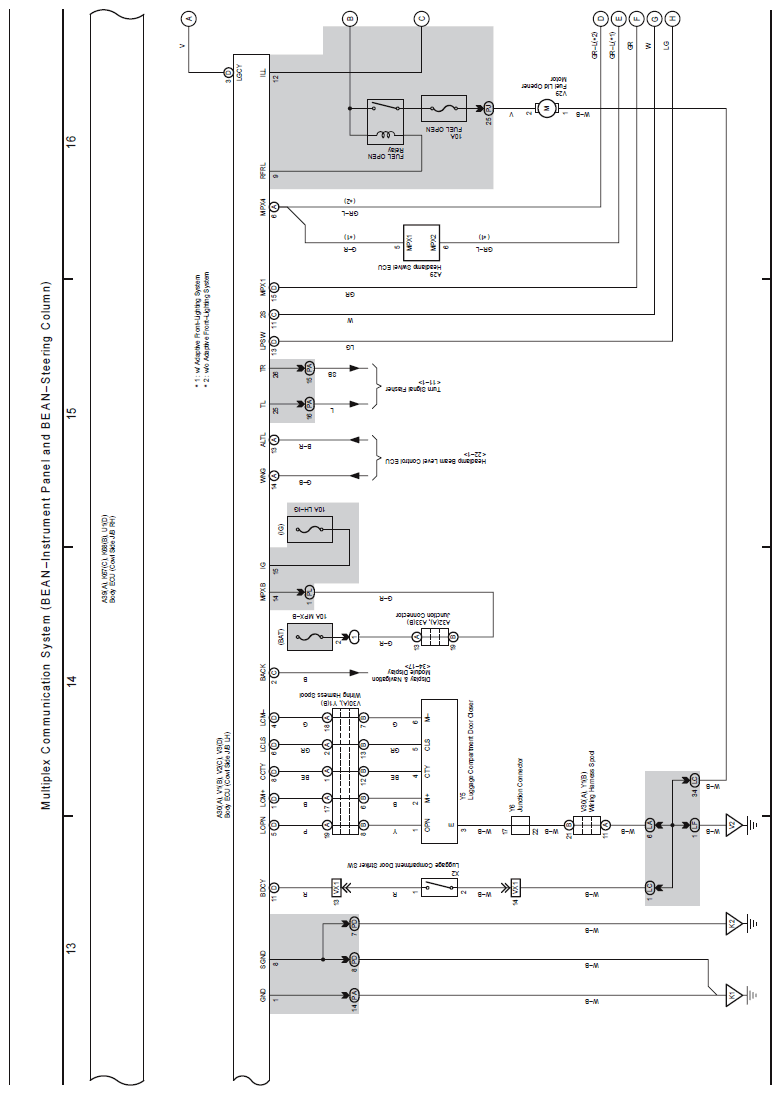

Fig 1: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

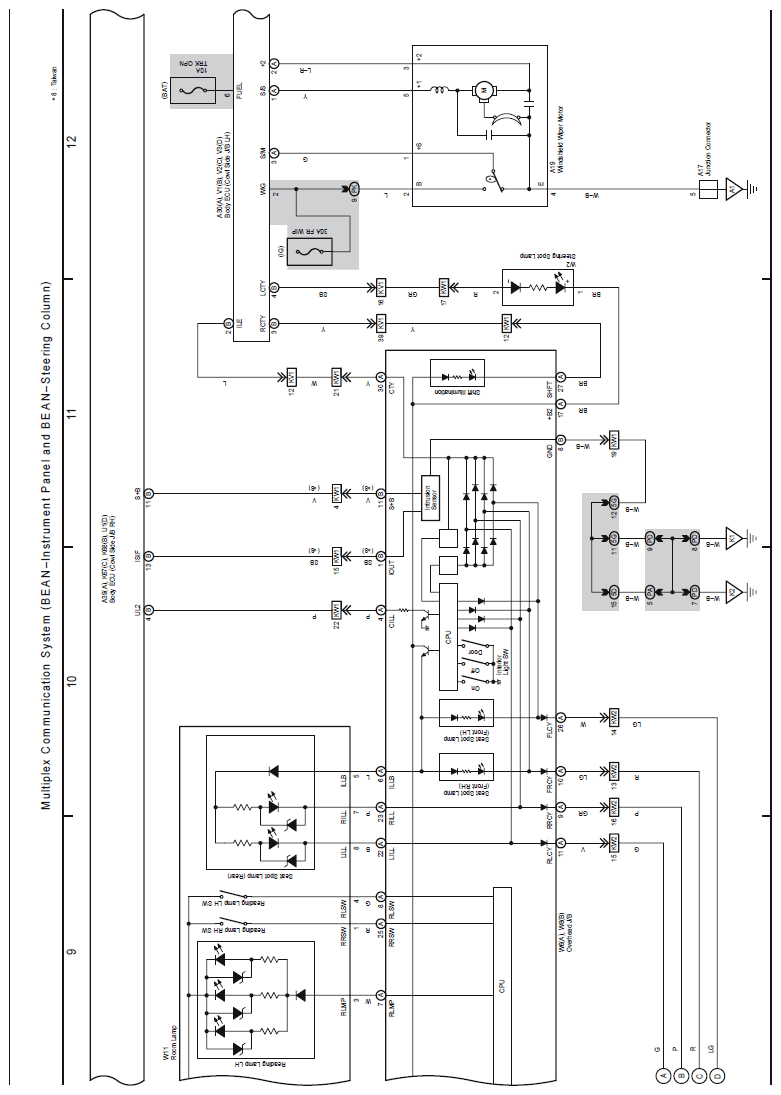

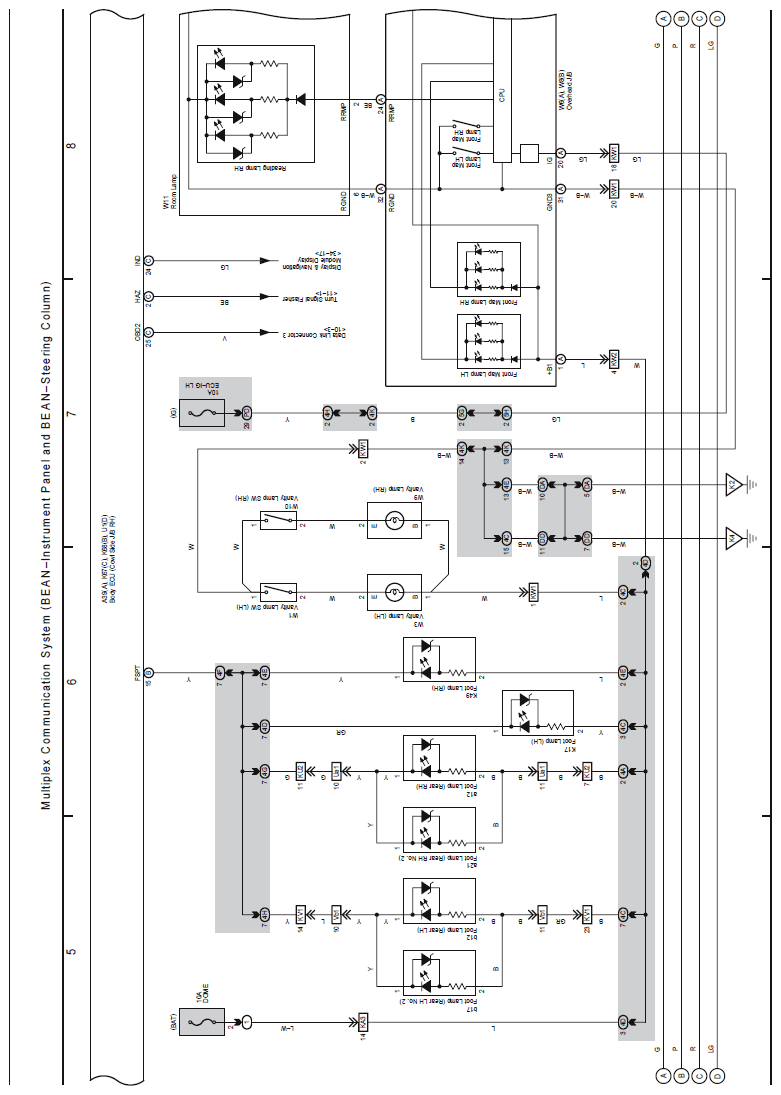

Fig 2: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

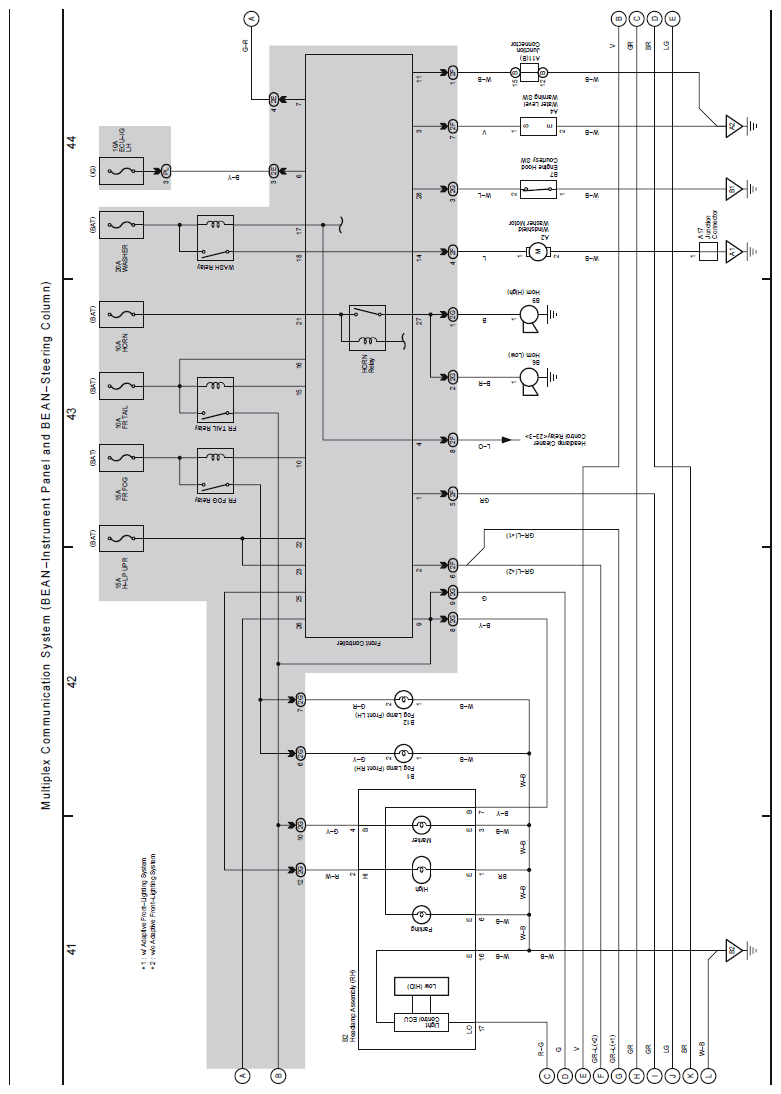

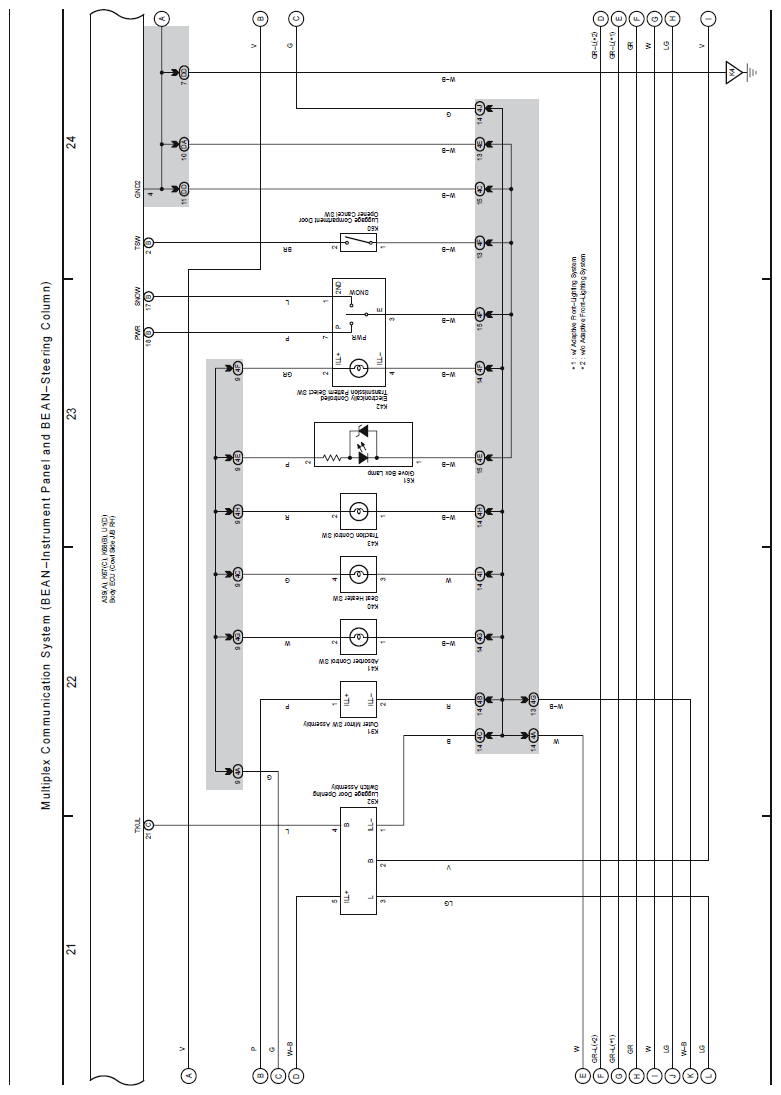

Fig 3: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

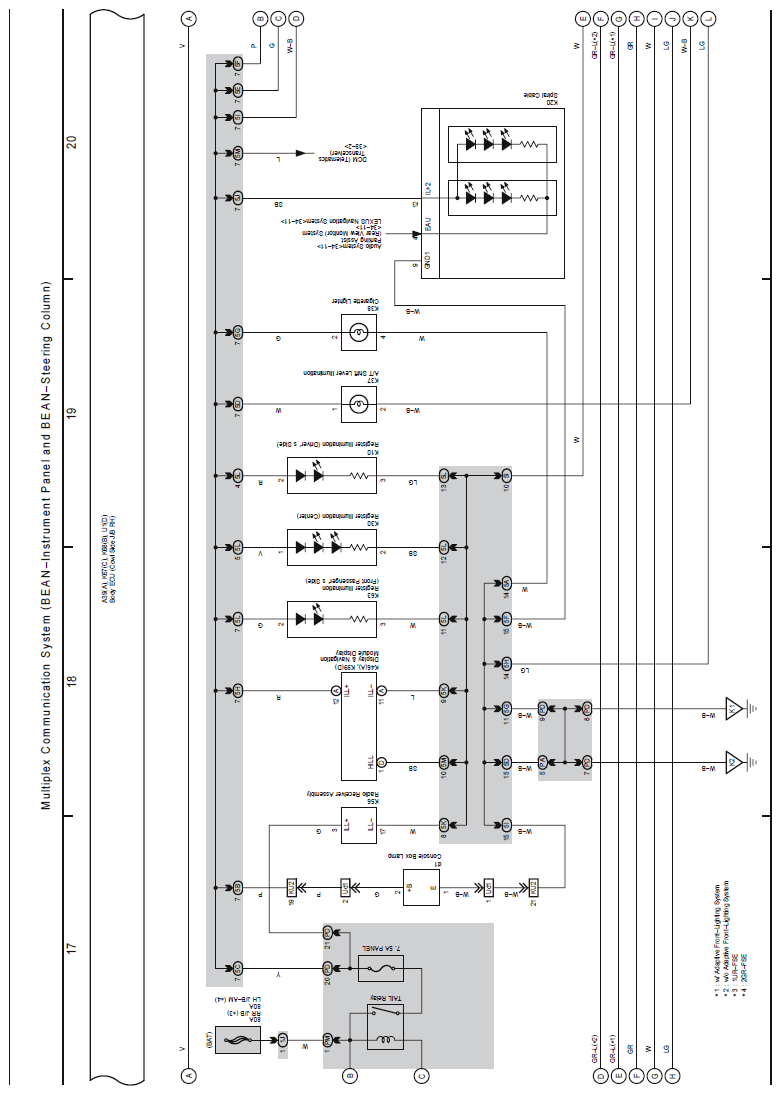

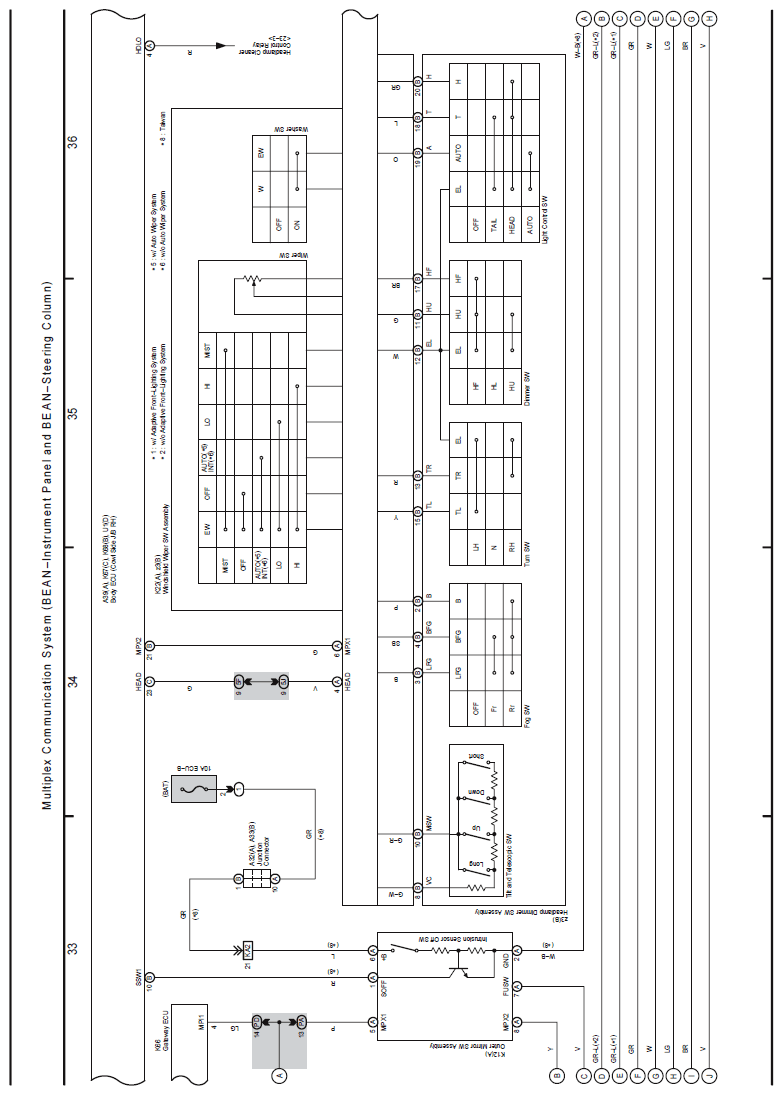

Fig 4: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

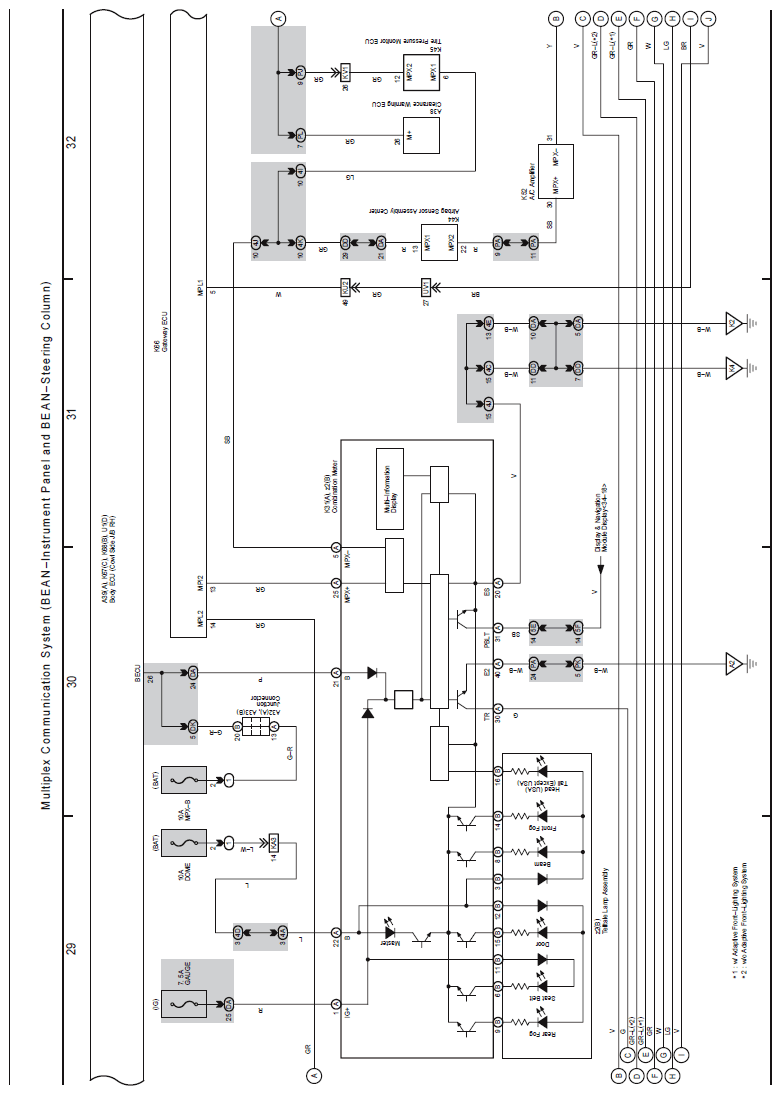

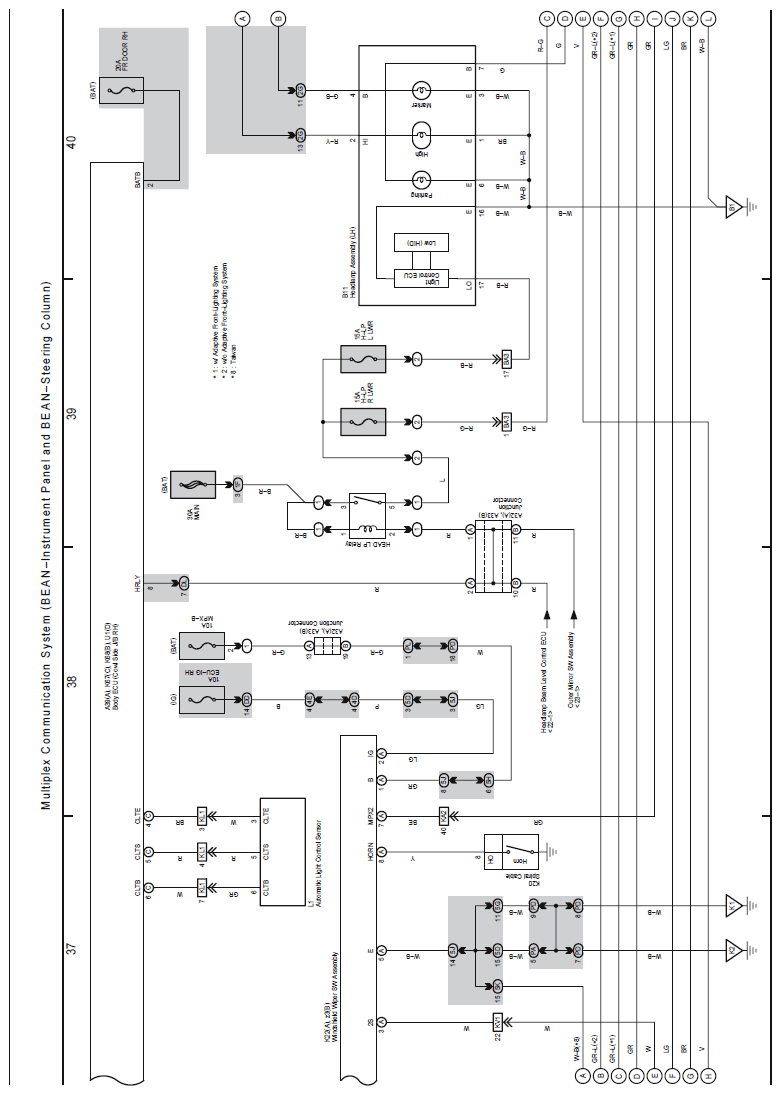

Fig 5: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

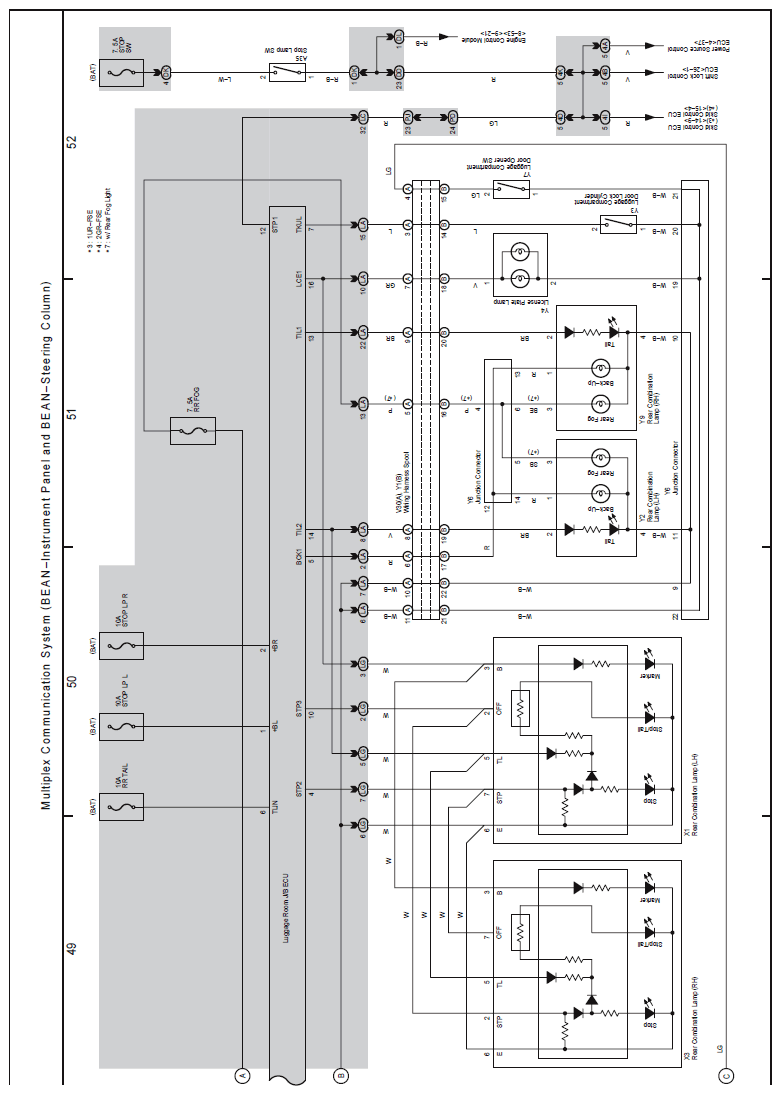

Fig 6: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

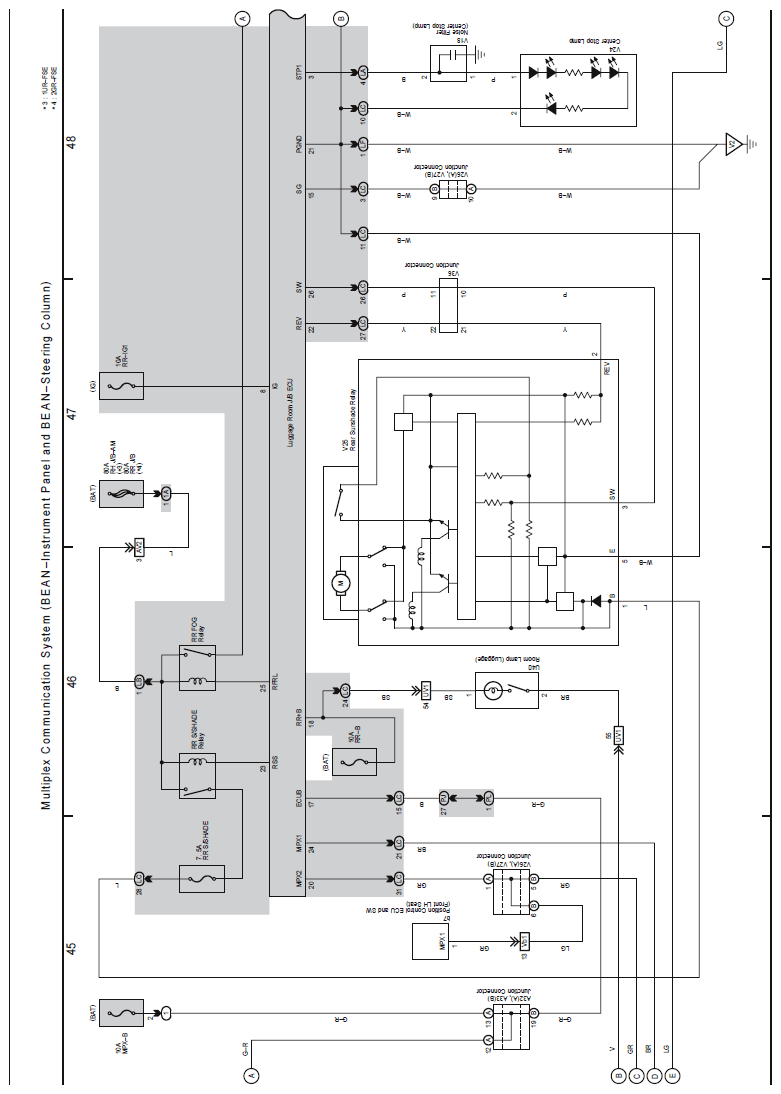

Fig 7: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

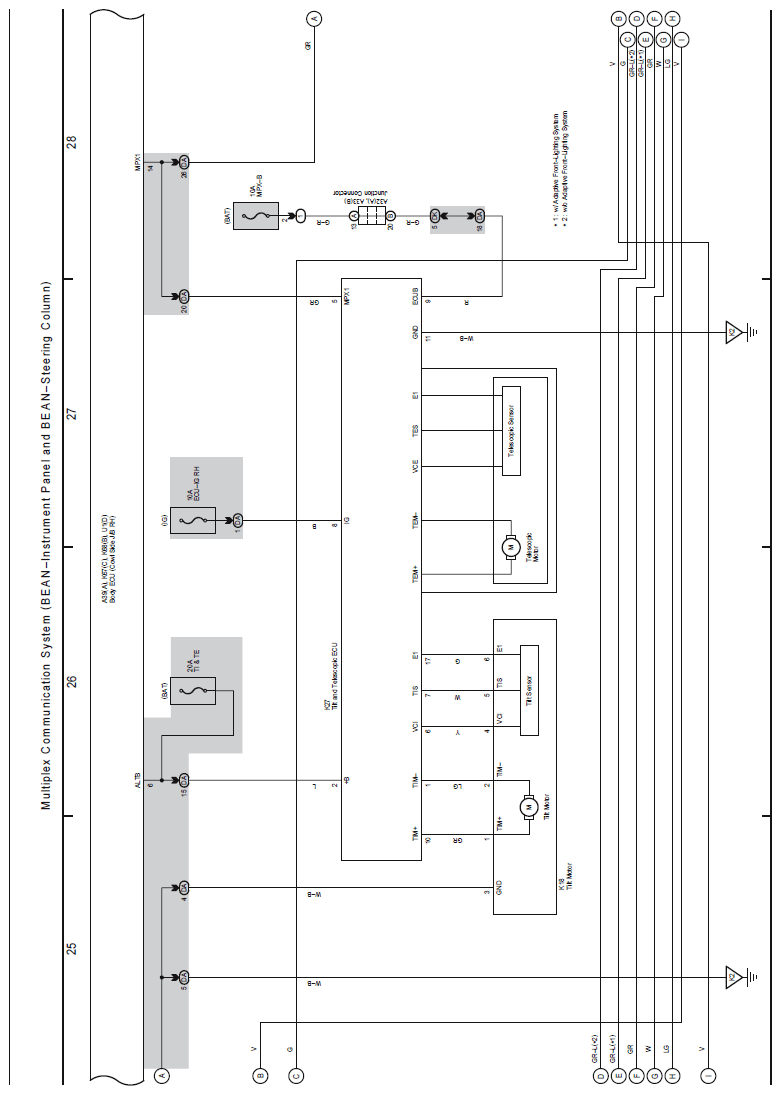

Fig 8: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (9 Of 13)

Fig 10: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (10 Of 13)

Fig 11: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (11 Of 13)

Fig 12: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (12 Of 13)

Fig 13: Multiplex Communication System (BEAN-instrument Panel And BEAN-steering Column) Electrical Wiring Diagram (13 Of 13)
