How To Read This Section

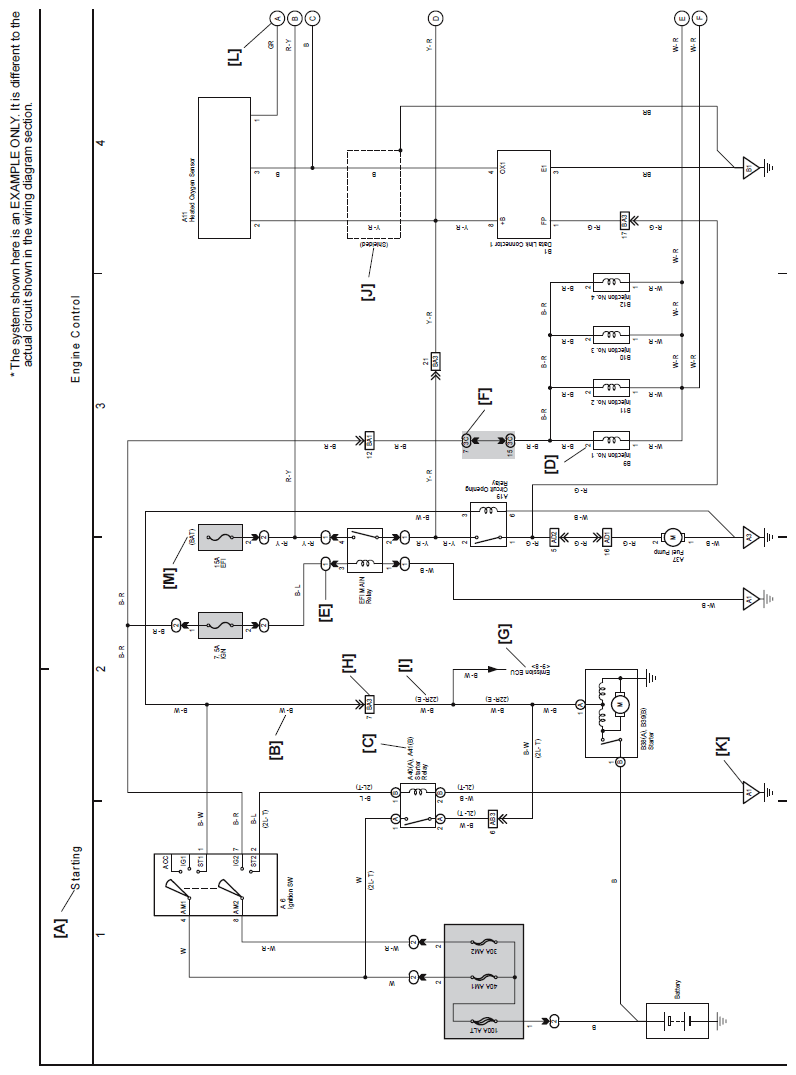

Fig 1: Engine Control Electrical Wiring Diagram (Example)
G07579051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

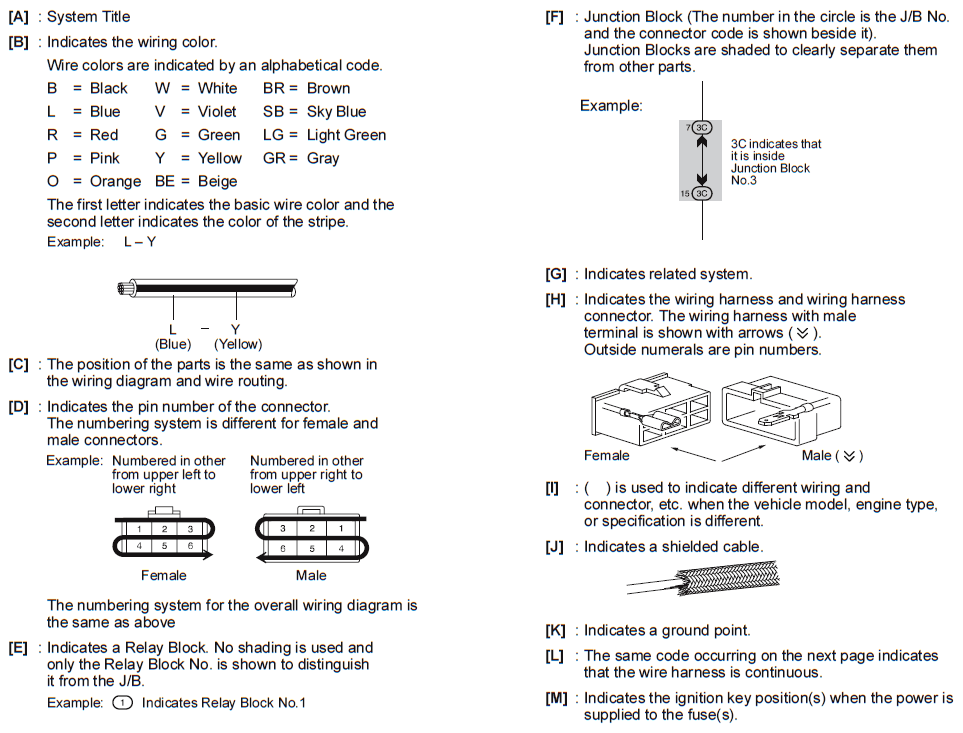

Fig 2: Engine Control Electrical Wiring Legend
G07579052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
