Audio System, LEXUS Navigation System, Multi Display, Parking Assist (Rear View Monitor)

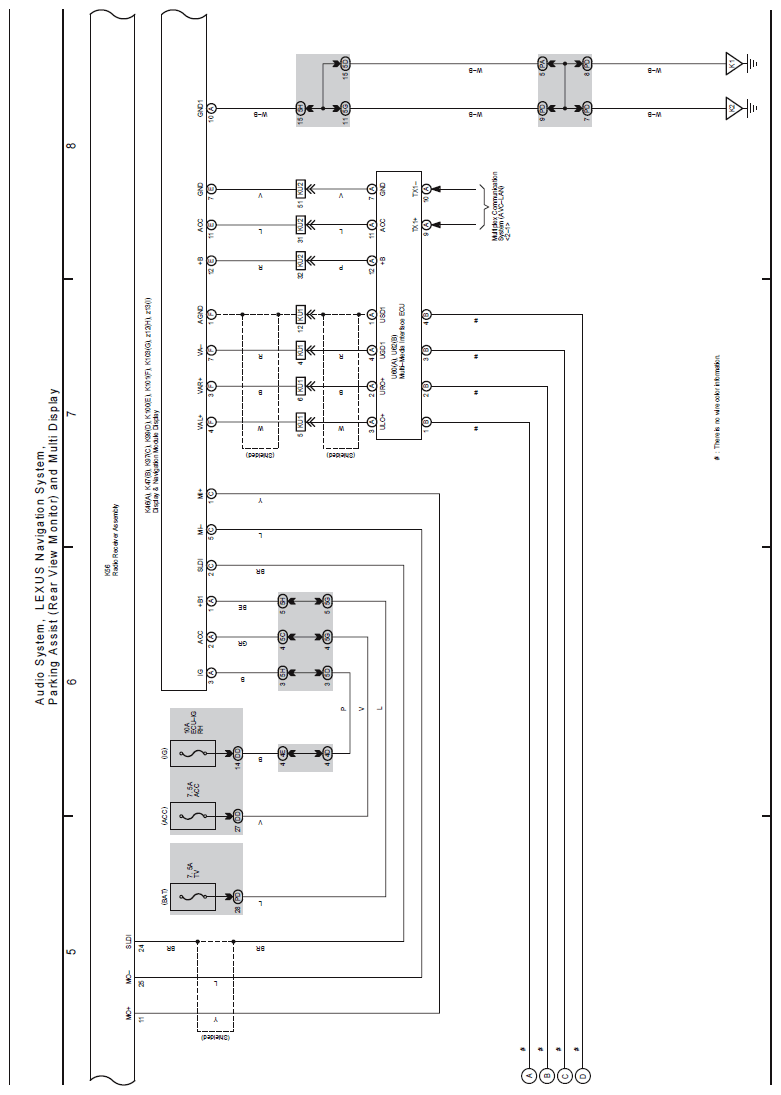

Fig 1: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display Electrical Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

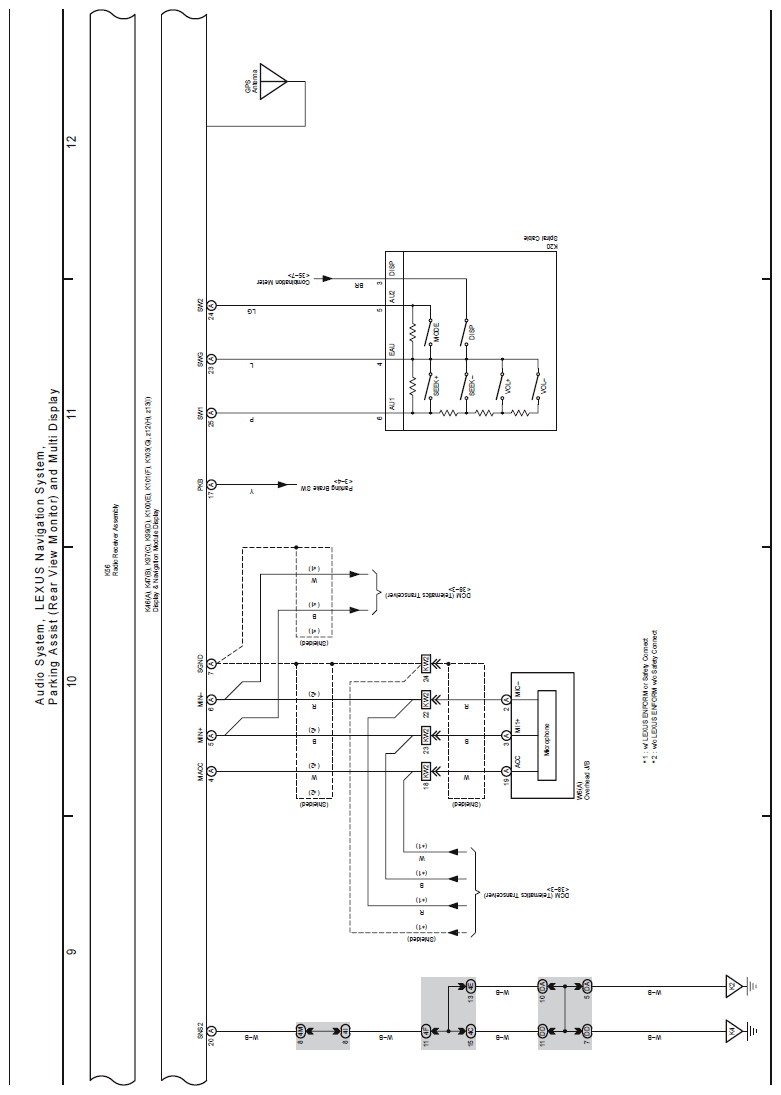

Fig 2: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display Electrical Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

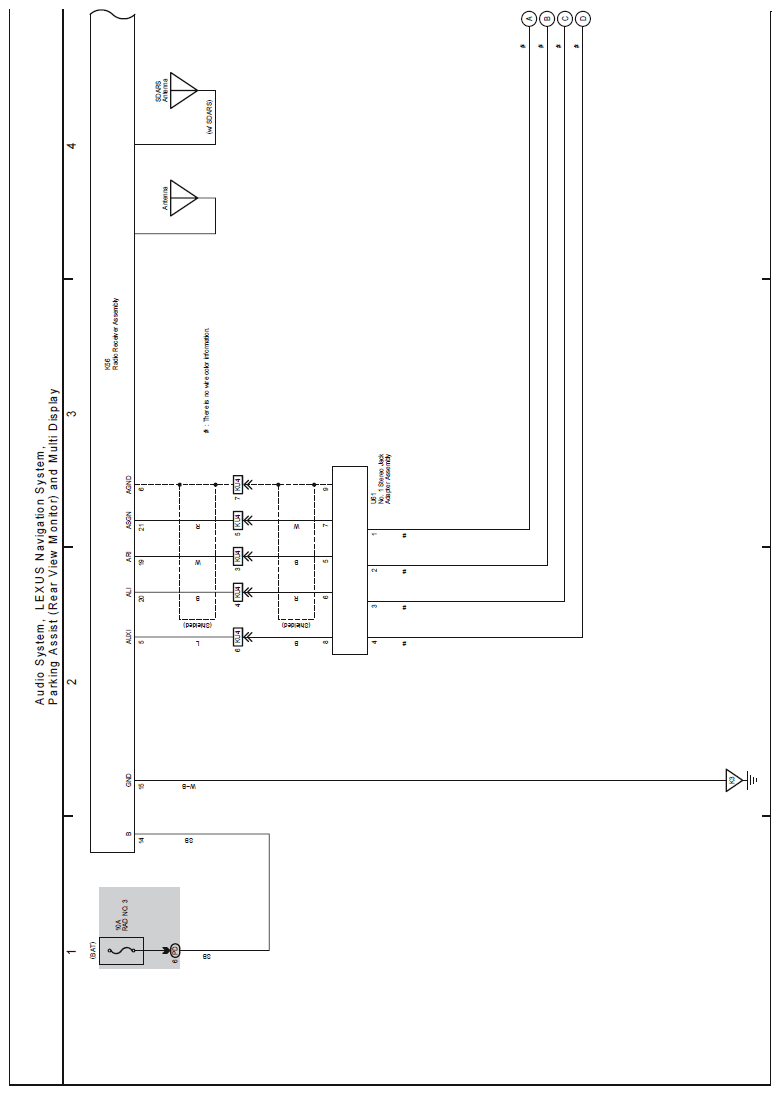

Fig 3: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display Electrical Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

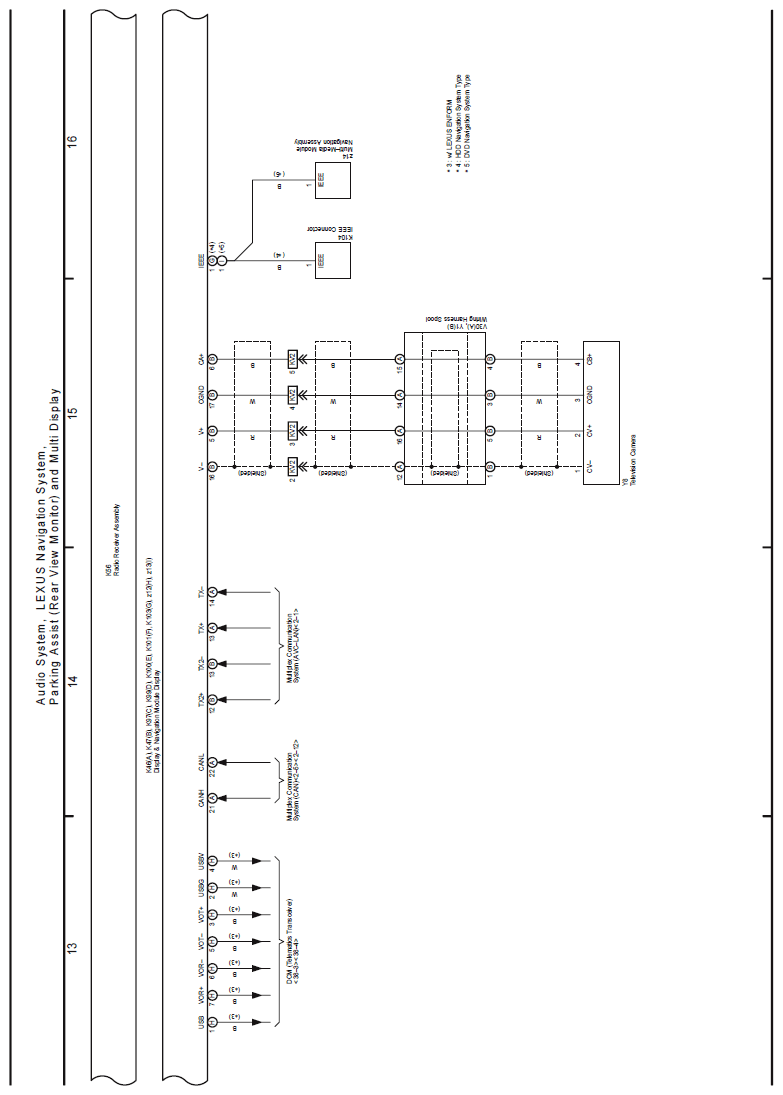

Fig 4: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display Electrical Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

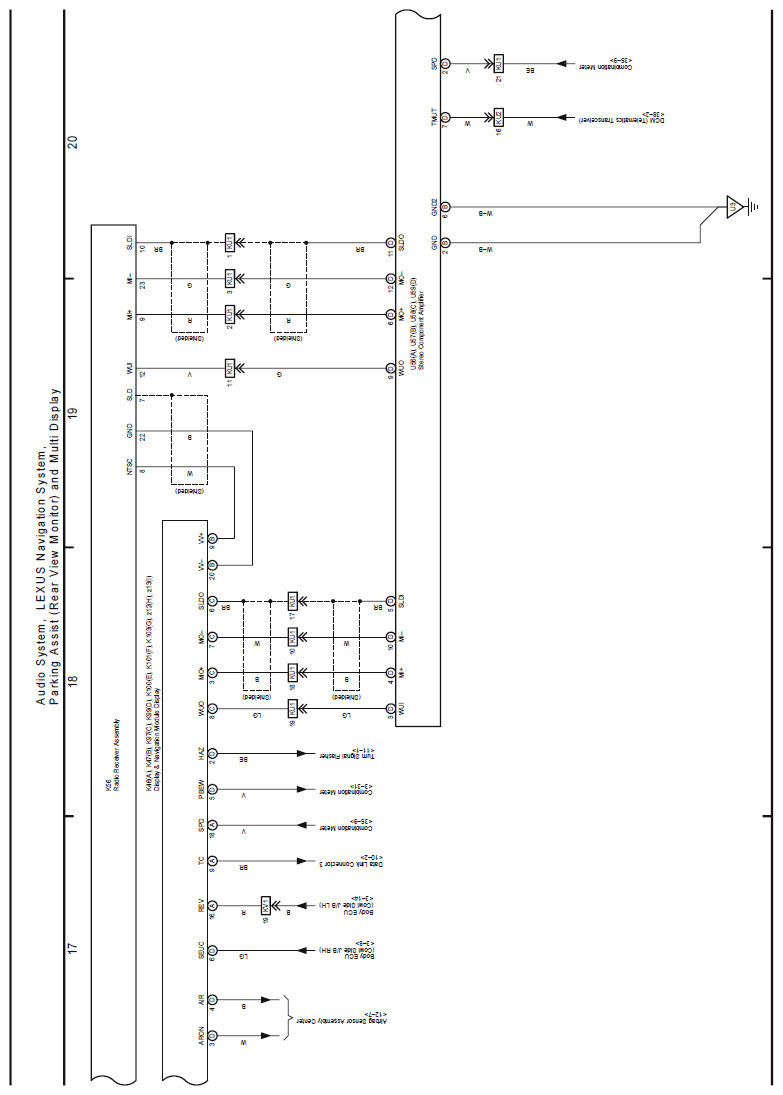

Fig 5: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display Electrical Wiring Diagram (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

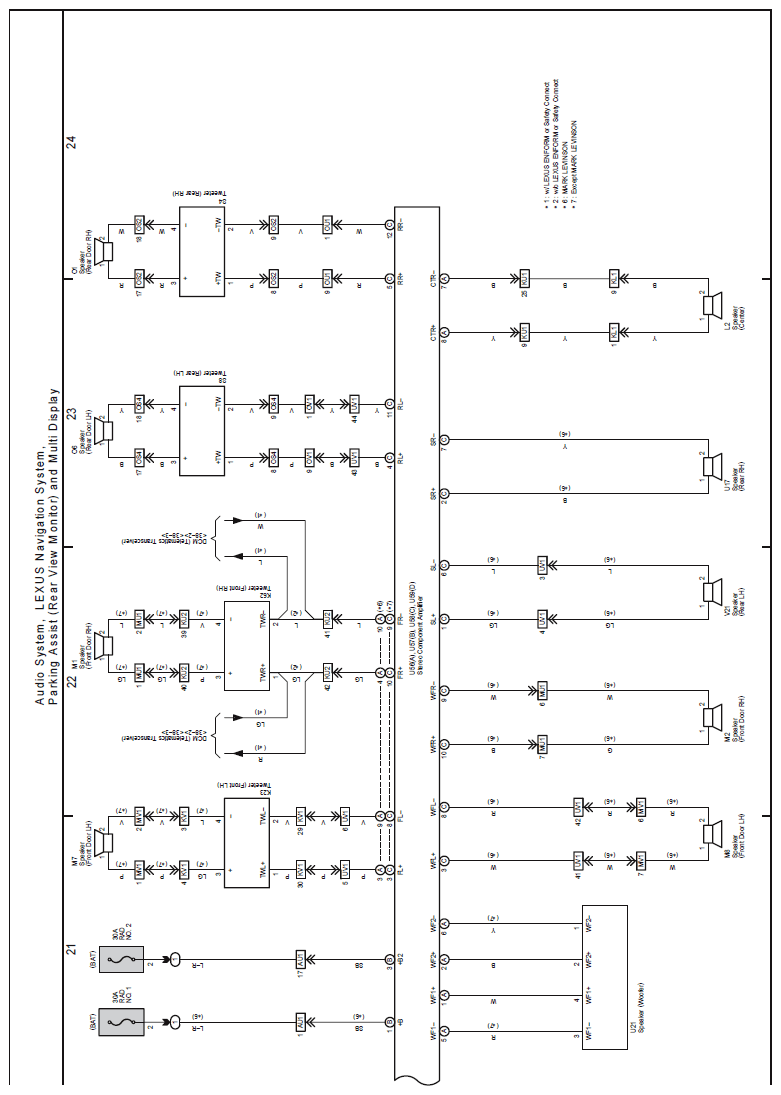

Fig 6: Audio System, Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi Display Electrical Wiring Diagram (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
