Navigation Antenna: Removal: Removal

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
1. Remove the instrument panel safety pad sub-assembly. Refer to REMOVAL .
REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT . Refer to DISASSEMBLY - Step 2
REMOVE NO. 3 HEATER TO REGISTER DUCT . Refer to DISASSEMBLY - Step 5
REMOVE NAVIGATION ANTENNA
1. w/ Navigation System for DVD:
  1. Remove the 3 screws.

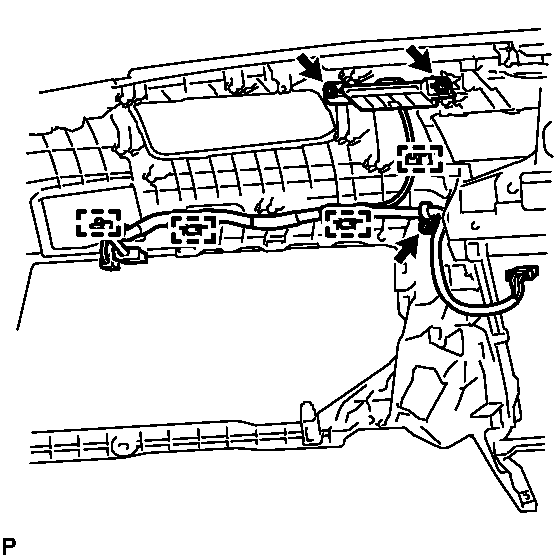

    Fig 1: Identifying Navigation Antenna Clamps (W/ Navigation System For DVD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disengage the 4 clamps to remove the navigation antenna.
2. w/ Navigation System for HDD:
  1. Remove the 3 screws.

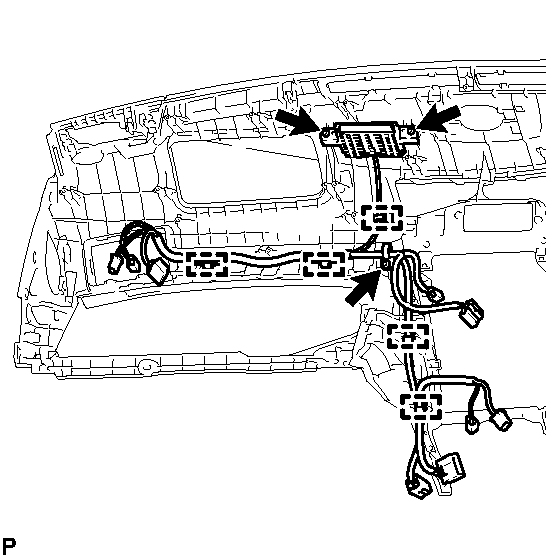

    Fig 2: Identifying Navigation Antenna Clamps (W/ Navigation System For HDD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disengage the 5 clamps to remove the navigation antenna.
