Drivability Problem: Procedure
- CHECK DTC
- Check for DTC. Refer to DTC CHECK / CLEAR
.
OK
DTC is not output.
NG → See step 6
OK: Go to next step
- Check for DTC. Refer to DTC CHECK / CLEAR
.
- TEST MODE INSPECTION (MULTI INFORMATION DISPLAY)
- Enter test mode. Refer to TEST MODE PROCEDURE .

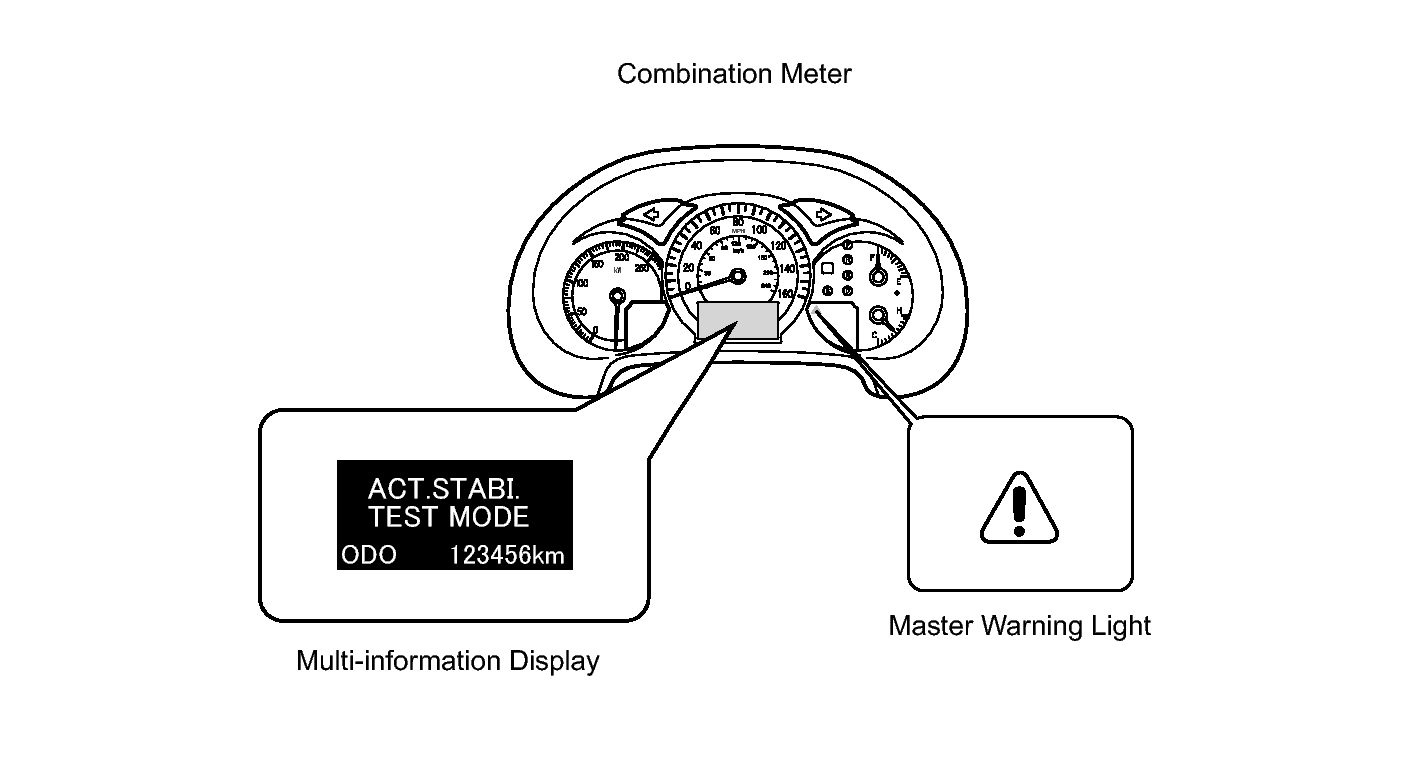

- When switching to test mode, check if the test mode is displayed on the multi-information display of the combination meter.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RESULTResult Proceed to Test mode is not displayed A Test mode is displayed B
B → See step 4
A: Go to next step
- CHECK WIRE HARNESS (CAN COMMUNICATION LINE)
- Disconnect the A58 front active stabilizer control ECU connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
Tester Connection Specified Condition A58-1 (LCN+) - A58-8 (LCN-) 54 to 69 Ω A58-2 (CANH) - A58-3 (CANL)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 8
- TEST MODE INSPECTION
- Perform the test mode inspection. Refer to TEST MODE PROCEDURE .
NEXT: Go to next step
- CHECK TEST MODE DTC
- Check test mode DTC. Refer to DTC CHECK / CLEAR
.
OK
DTC is not output.
NG → See step 7
OK → END (NORMAL)
- Check test mode DTC. Refer to DTC CHECK / CLEAR
.
- GO TO FLOWCHART OF EACH DTC. Refer to DIAGNOSTIC TROUBLE CODE CHART
- GO TO DTC CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART
- GO TO METER / GAUGE SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
