Active Stabilizer Suspension (Diagnostic Codes & Symptom Tests)
>>
Active Stabilizer Suspension System
>>
DTC C193D: Malfunction in Front Active Stabilizer Control ECU Local CAN Transmission
>>
Wiring Diagram
DTC C193D: Malfunction in Front Active Stabilizer Control ECU Local CAN Transmission: Wiring Diagram

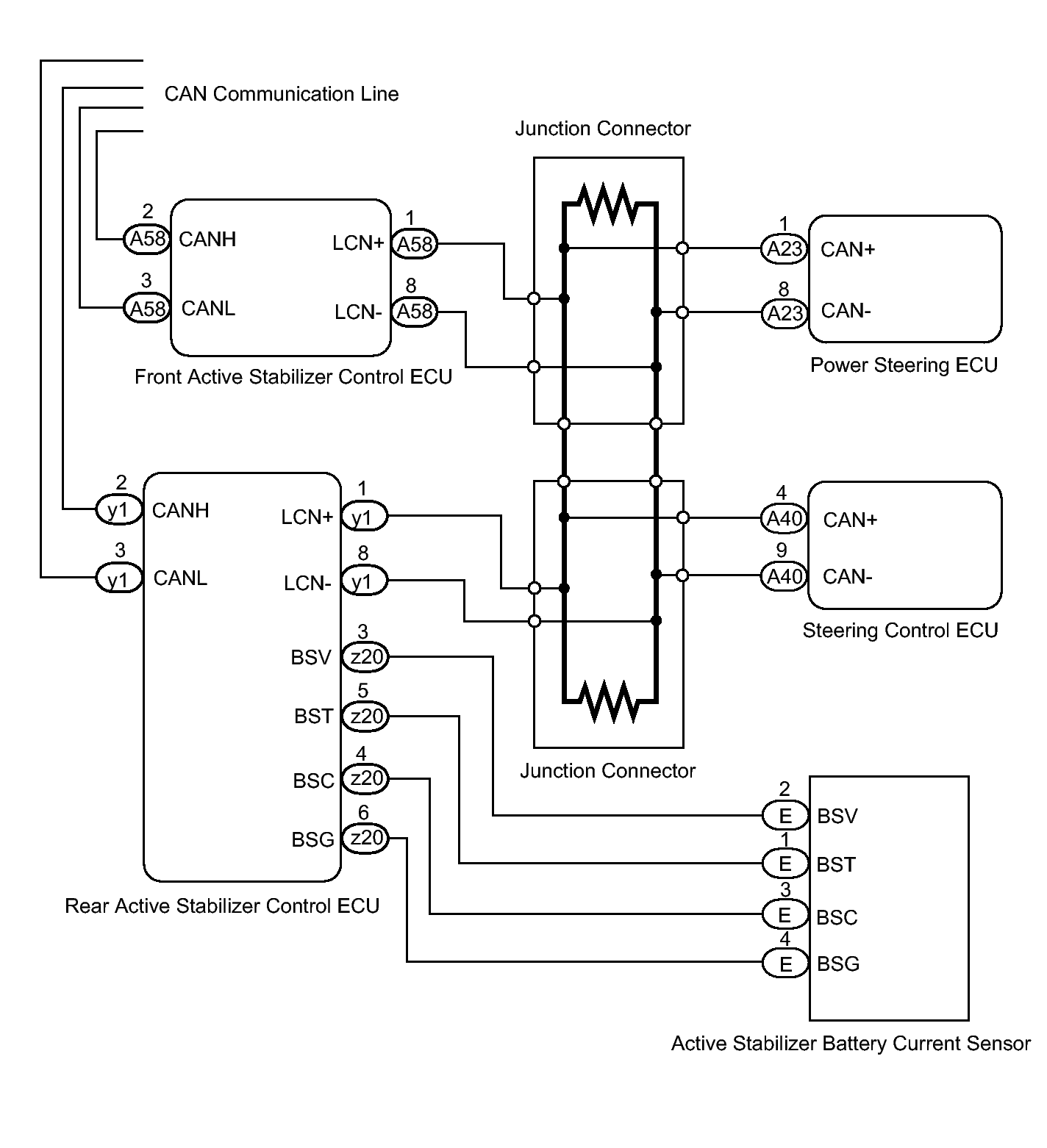

Fig 1: Active Stabilizer Battery Current Sensor - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
